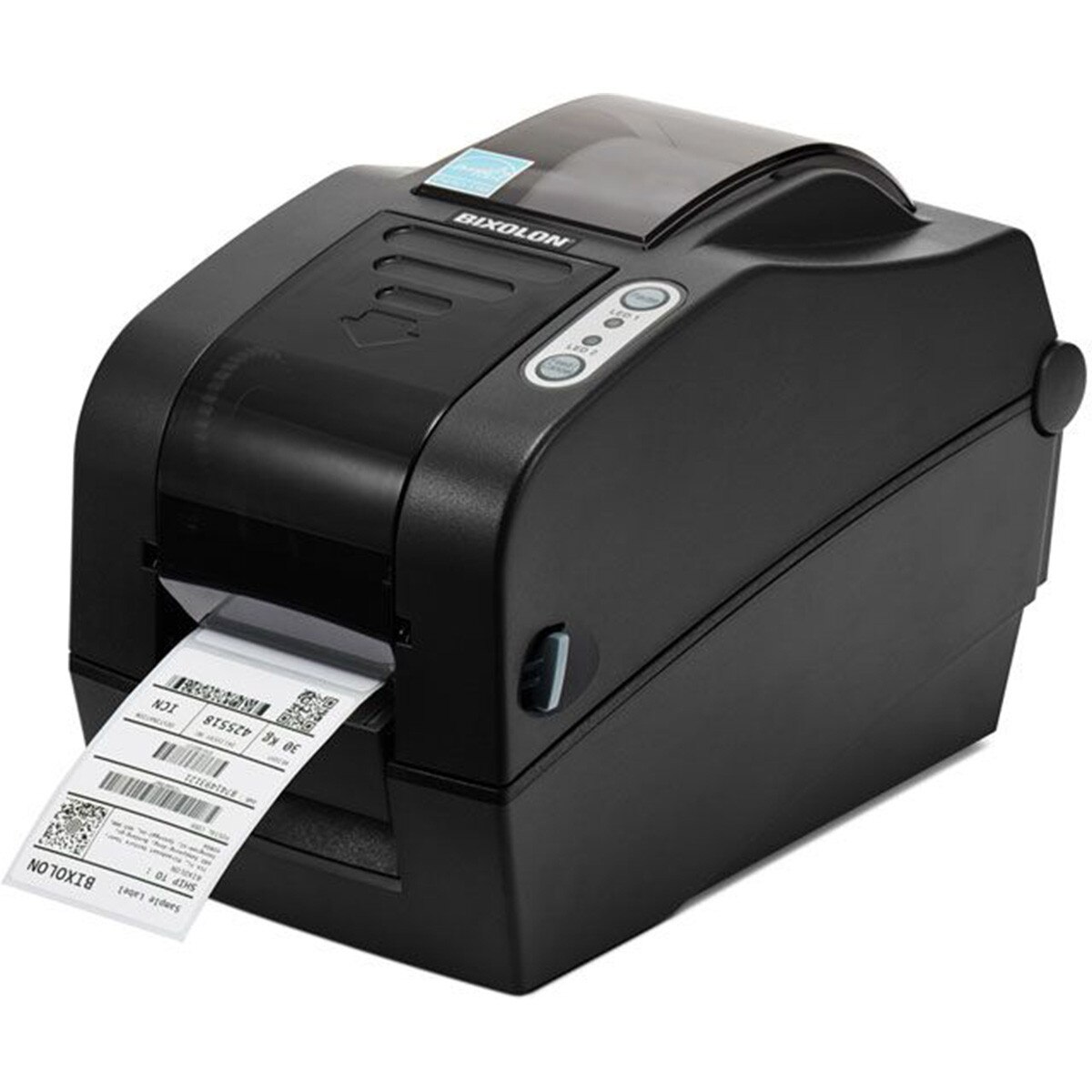

BIXOLON SLP-TX223G 2" Thermal Transfer Label Printer

(0)No Reviews yet
SKU: SLP-TX223G
MSRP: $481.00
$380.63 each

Details

Document
Premium, Compact,
and High Performance
Premium-Level Performance
- Fully compatible with market-leading programming languages
- Fast data processing and printing speed up to 6 ips (152 mm/sec)
- Smart Media Detection™ :
Automatic paper detection
Short length media label
Gap media label
Black mark media label
Continuous label
Peeler
Auto-cutter
User-Friendly Design
- Space-saving design adopting a 74 m ribbon
- Various options: Peeler and Auto-cutter
- Easy to replace TPH and Ribbon
- Media sensor (Gap, Black mark)
- Easy paper loading
- Intuitive pause & cancel function keys

Retail

Warehouse

Healthcare

Post & Parcel

Specifications

Document
Printer Specifications
Print Method
Thermal Transfer, Direct Thermal
Print Speed
SLP-TX220: Up to 6 ips (152 mm/sec)
SLP-TX223: Up to 4 ips (100 mm/sec)
Print Resolution
SLP-TX220: 203 dpi
SLP-TX223: 300 dpi
Print Width
SLP-TX220: Up to 54 mm
SLP-TX223: Up to 56.9 mm
Print Length
Up to 2,000 mm
Sensor
Transmissive, Reflective (Adjustable), Head Open
Media Characteristics
Media Type
Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width
15 ~ 60 mm
Media Roll Diameter
Up to 130 mm
Media Thickness
0.06 ~ 0.20 mm
Supply Method
Easy Paper Loading
Inner Core
12.5 ~ 38.1mm
Ribbon Characteristics
Ribbon Type
Wax, Wax / Resin, Resin, Outside
Ribbon Width
58 mm
Ribbon Length
Up to 74 m
Core Inner Diameter
12.7 mm
Physical Characteristics
Dimensions (W x L x H)
144 x 252 x 173 mm
(5.67 x 9.92 x 6.81 inch)
Weight
1.71 kg (3.77 lbs.)
Electrical
EnergyStar Certified,
External Power Adaptor 100-240V AC, 50/60Hz
Performance Characteristics
Memory
64 MB SDRAM, 128 MB Flash
Interface
Standard: USB + Serial
Optional:
① USB + Ethernet + WLAN
② USB + WLAN + Bluetooth
WLAN: 802.11a/b/g/n/ac Dongle type
- requires a USB Host port (Optional)
Real Time Clock
Supported (Optional)
Environment Characteristics
Temperature
Operating: 5 ~ 40 ℃ (41 ~ 104 ℉)
Storage: -20 ~ 60 ℃ (-4 ~ 140 ℉)
Humidity
Operating: 10 ~ 80 % RH
Storage: 10 ~ 90 % RH
Software
Emulation
SLCS™, BPL-Z™, BPL-E™
Driver / Utility
Windows Driver (Europlus / Seagull)
Linux/Mac CUPS Driver
Virtual COM USB / Ethernet Driver
Utility Program
OPOS / JPOS Driver
Bartender Ultralite for BIXOLON
Label Artist-II™
SAP® Device Driver
Network Auto Installer
SDK / Plugin
Android / iOS / Windows SDK
Linux SDK
Chrome SDK
Xamarin SDK
Web Print SDK
Application
Label Artist™ Mobile (Android, iOS)
mPrint App (Android, iOS)
Fonts / Graphics / Symbologies
Fonts
Bitmap Fonts (10 SLCS™, 16 BPL-Z™, 5
BPL-E™), Scalable Fonts (1 SLCS™, 1 BPL-Z™),
23 Code page, Unicode supported (UTF-8,
UTF-16LE, UTF-16BE)
Graphics
Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies
1D:
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC / EAN extensions, UPC-A, UPC-E, IMB
2D:
Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Optional Accessories
Peeler, Auto Cutter, External Paper Supply, WLAN Dongle (Consensus required), Serial cable, USB cable
Supplies
Compatible with B-ribbon™, B-band™
