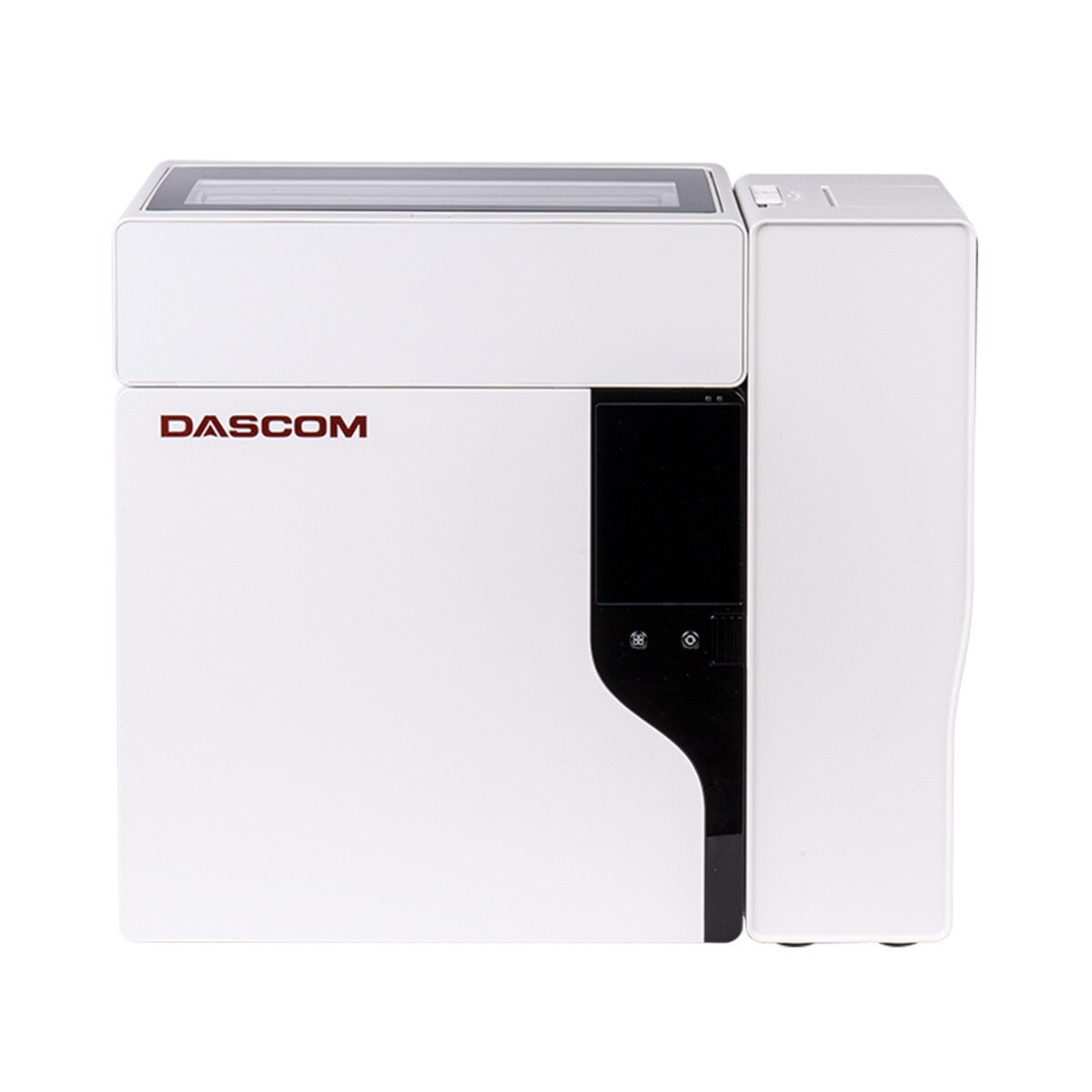

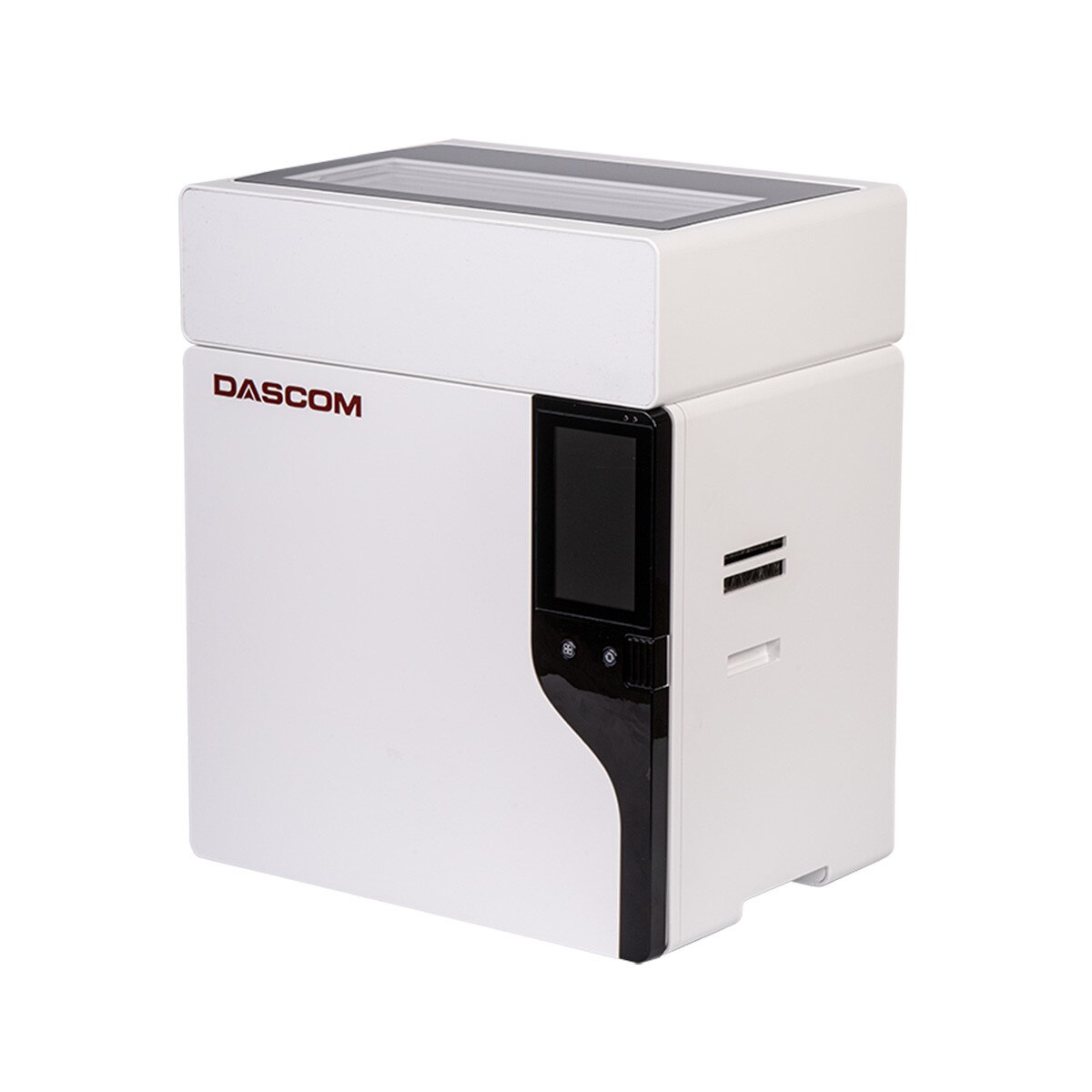

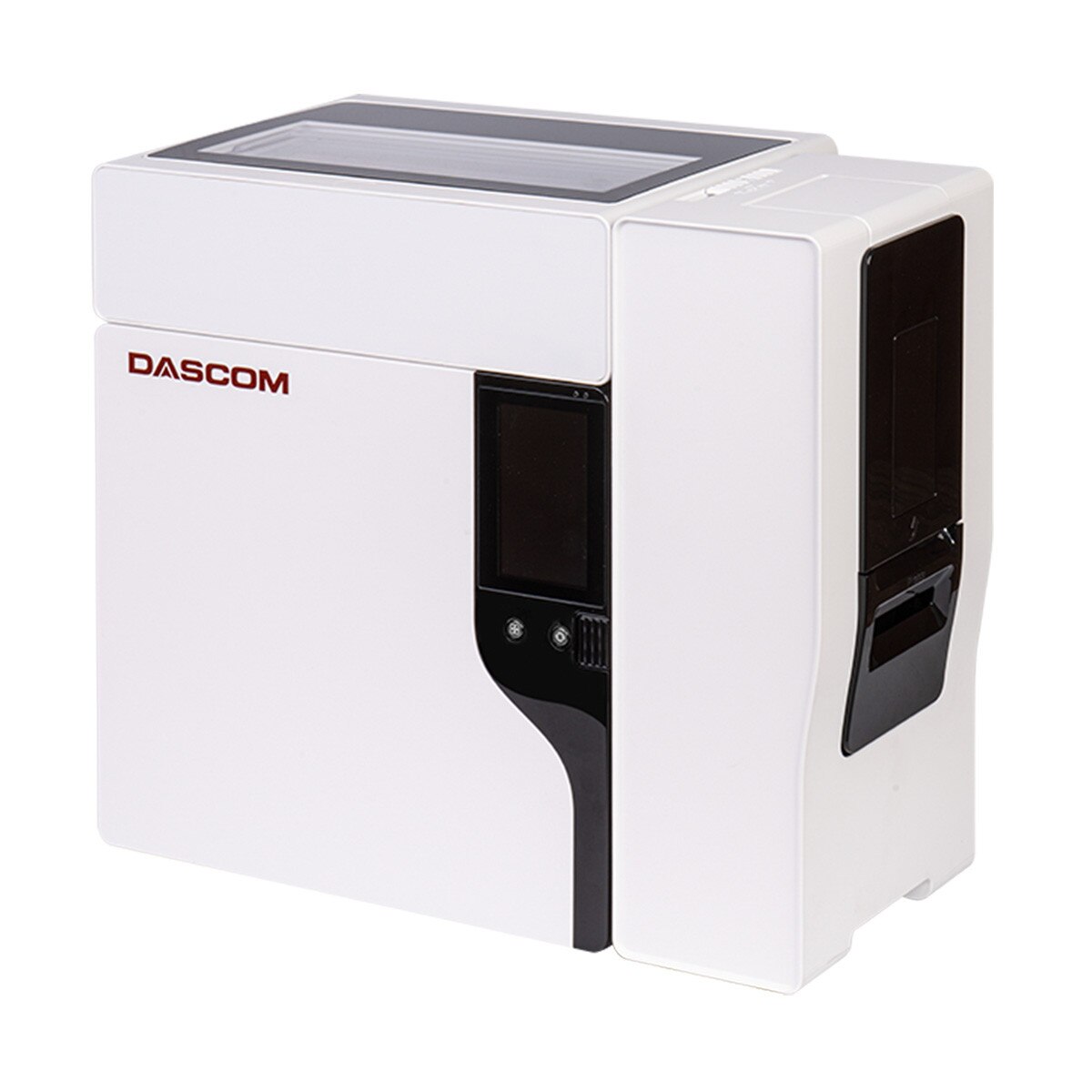

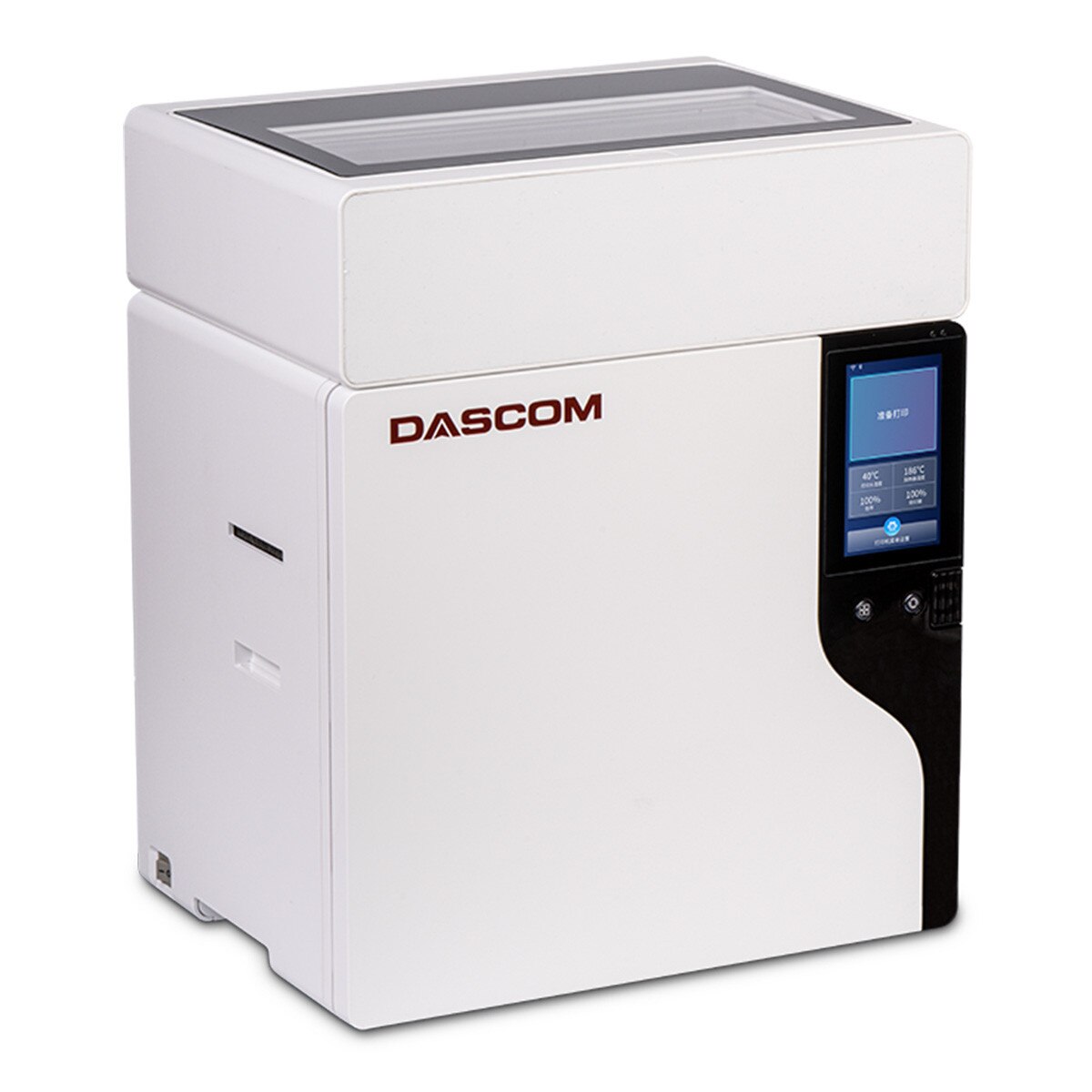

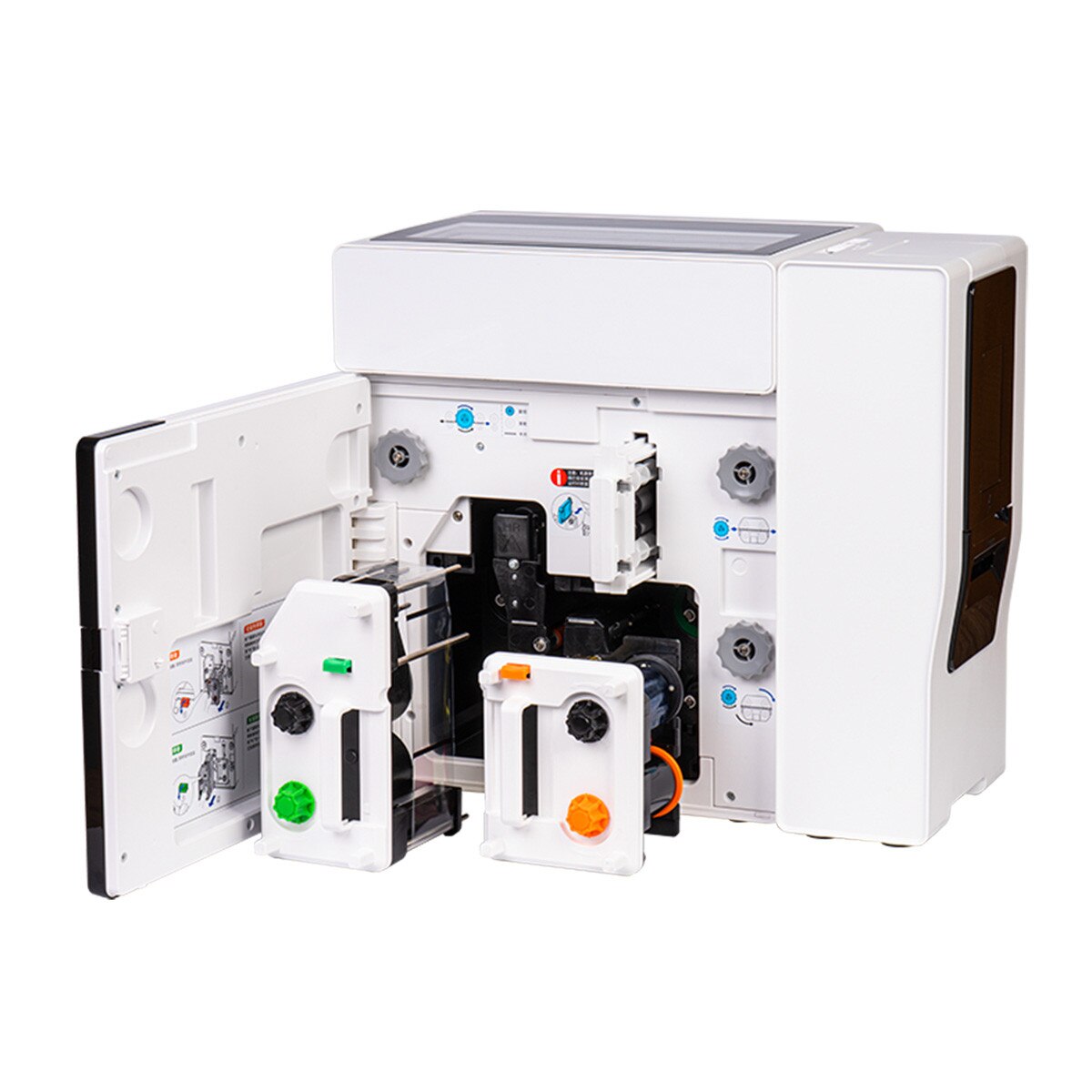

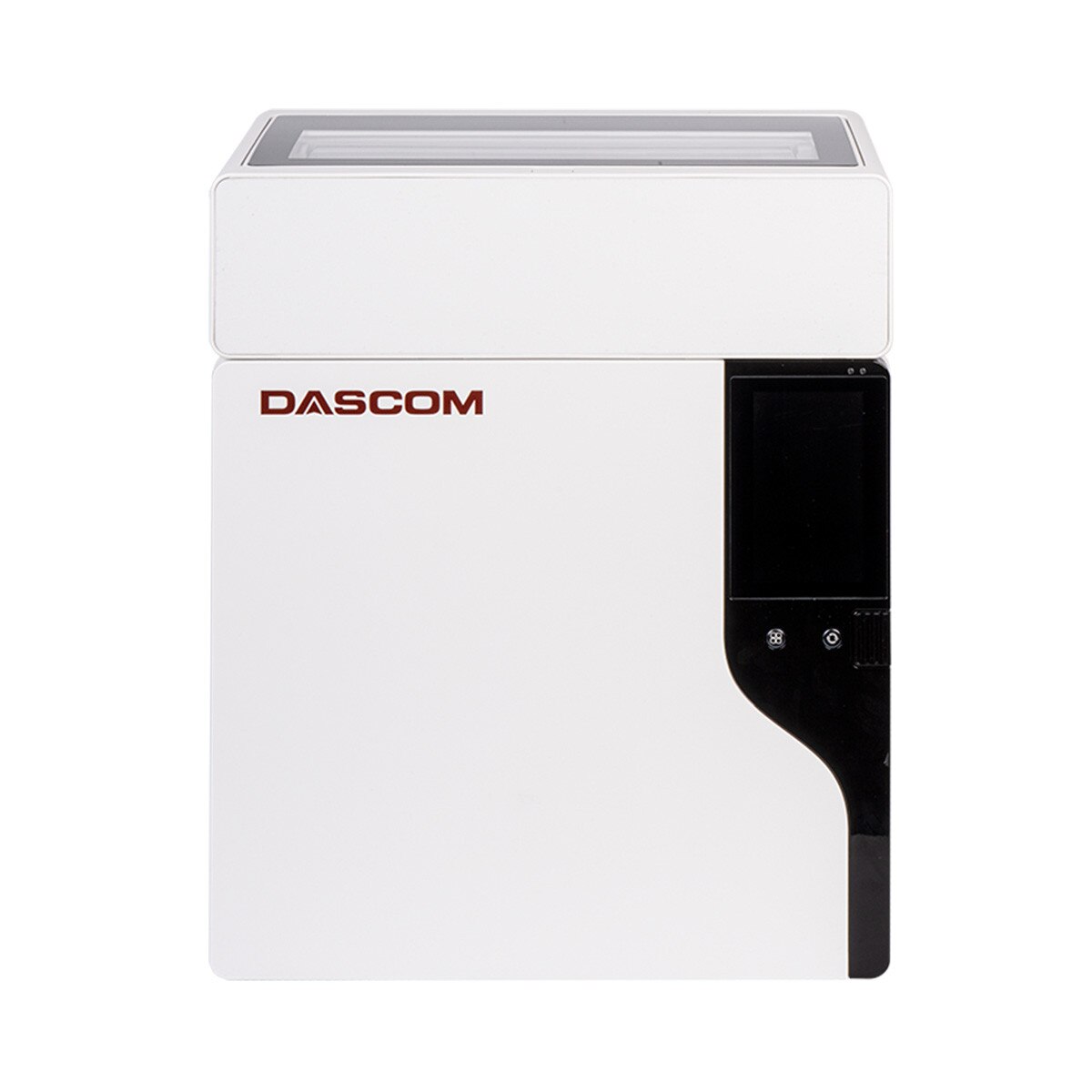

Dascom DC-8600 Dual-Sided Retransfer Printer
Details
The DASCOM DC-8600 is a next-generation retransfer card printer that delivers exceptional performance for high-volume, high-quality card printing needs. Featuring 600 DPI resolution and over-the-edge printing capabilities, the DC-8600 ensures your cards have a professional, full-coverage finish. This printer supports both single and dual-sided printing, with a fast print speed of up to 180 cards per hour. With a robust 250-card feeder and an optional second hopper that adds capacity for an additional 200 cards, the DC-8600 is designed for efficiency and productivity. The printer also includes advanced security features such as RFID ribbon protection and custom watermarks. Ideal for large-scale operations, the DC-8600's dual interface options (USB and Ethernet) and optional WiFi capability make it versatile and easy to integrate into any environment.
Reverse Image Transfer (Retransfer) Card Printing Technology
This ID card printer uses advanced retransfer printing technology, where ink from a ribbon is first applied to a dye-receptive "transfer film." After all necessary colors are layered onto the film, it is then fused onto a blank PVC or composite card. This two-step process results in a high-definition, "over-the-edge" printed card. Because the printing process uses a flexible transfer film rather than a fixed printhead, it is perfect for producing highly detailed images (up to 600 dpi) on uneven surfaces, such as ID cards with embedded electronic chips (smart cards). Additionally, the re-transfer method extends the lifespan of the printhead by eliminating direct contact with the card material.
600 dpi
This ID card printer offers an impressive resolution of 600 dpi (dots per inch), or 23.6 dpm (dots per millimeter), delivering exceptionally vibrant and crisp prints. DPI, or dots per inch, measures the number of ink dots the printer can place within a linear inch on the card’s surface. With 600 dpi, the printer can produce double the detail compared to standard 300 dpi printers, resulting in sharper images, smoother gradients, and more precise text. This higher resolution is ideal for ID cards where the quality of fine details, such as intricate logos, microtext, and high-definition photos, is critical. The enhanced clarity and vibrancy ensure that every element on the card stands out, providing a superior level of professionalism and security.
Dual-Sided ID Card Printing
This ID card printer is built for dual-sided printing, offering the flexibility to print on both the front and back of each card. This feature is ideal for organizations that need to display more information, such as employee details on one side and company branding or security features on the other. With its advanced technology, this dual-sided printer ensures that both sides of the card are printed with the same high level of quality and precision, all in one seamless operation. This makes it a versatile and efficient choice for creating professional, full-featured ID cards, membership cards, and more, without the need for multiple printing passes or additional equipment. Whether you’re looking to enhance security, improve functionality, or simply make better use of card space, this dual-sided printer is designed to meet your needs with ease.
Magnetic Stripe Encoding
ISO Magnetic stripe encoding allows data to be encoded onto magnetic stripes embedded within plastic or composite cards. An ISO magnetic stripe encoder supports both high coercivity (HiCo) and low coercivity (LoCo) magnetic stripes, giving you flexibility depending on your specific application needs. By configuring your printer and encoder, you can store data across three distinct magnetic stripe tracks, each capable of holding different types of information. These tracks can be programmed for use in a wide range of systems, including door access control, payment processing, loyalty programs, and more. Magnetic stripe technology remains a reliable and widely used method for securely storing and transmitting data, making it a valuable feature for businesses looking to integrate with various third-party systems.
Smart Card
Smart card encoding in ID card printers is the process of writing data onto the embedded chip within a smart card during the card printing process. This allows the card to store and transmit secure information, such as access credentials, personal identification, or payment details. Integrated directly into the ID card printer, the smart card encoder programs the card with the necessary data while the card is being printed, ensuring seamless production of fully personalized and secure credentials. This technology is widely used in environments requiring enhanced security, such as corporate offices, government facilities, and educational institutions.
Specifications
| Specification | Details |
|---|---|
| Print Method | Colour dye sublimation re-transfer technology |
| Resolution | 600 dpi |
| Print Capability | Single Side, Double Side, Over-the-Edge, Photo Quality |
| Print Speed | Single Side: 20 sec/card, Double Side: 45 sec/card |
| Interfaces | USB 2.0, Ethernet (10/100), Optional: WiFi |
| Card Thickness | 0.5 - 1.1 mm (20 - 50 mil) |
| Security Features | RFID ribbon, card feeder lock, custom watermarks (BMP) |
| Card Loading | 250 cards (standard), Double bin: 250 + 200 cards, manual feed: 1 card |
| Card Types | PVC, PET, PET-G, PC (ISO ID-1/CR-80 size) |
| Consumables | YMCK (500/1000 Images), YMCKK, YMCKI, YMCKH, YMCKSI, Transfer Film, etc. |
| Physical Weight | Standard: 13.3 kg, Double Bin: 15 kg |
| Physical Size | Standard: 248 x 339 x 408 mm, Double Bin: 248 x 466 x 408 mm |
| Power Voltage | Auto wide ranging, 100 - 240 V AC - 50/60 Hz |
| Environment | Printing: +15° to +30° C, 35 - 95% Humidity |
| Driver | Windows 8/8.1/10/11, Server 2012/2016/2019/2022, macOS |
| Optional Encoder | Encoder prepared |
