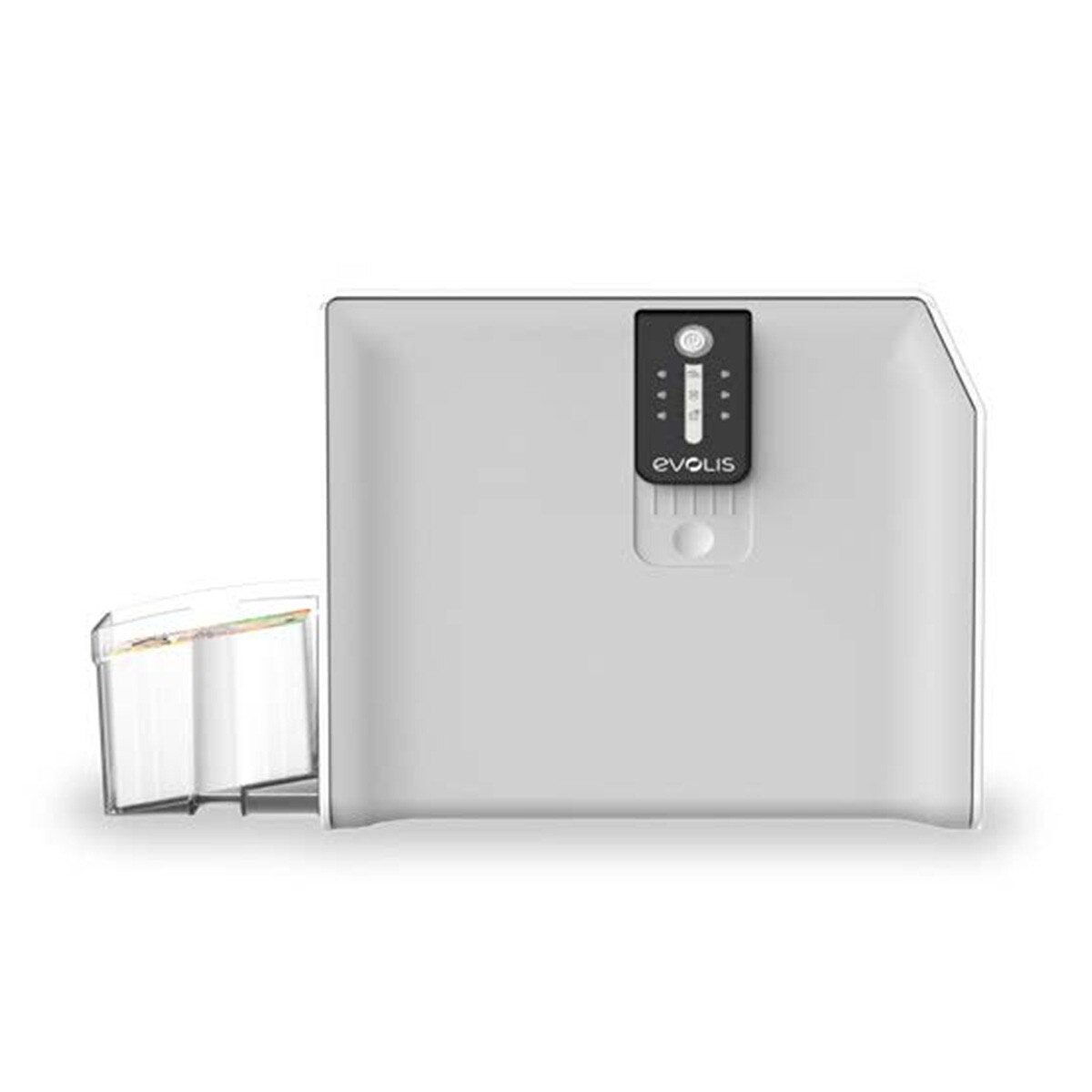

Evolis S10474 Laminator for Agilia
For Large Quantity Orders Call (877) 379-8844 or
Details
Agilia, Evolis' retransfer card printer, can be associated with this Evolis Card Lamination Module (CLM), to become an all-in-one solution to print, encode, and laminate cards in a single-pass.
This system combines the best printing quality offered by Agilia Retransfer technology, with durability and security thanks to Evolis' lamination technology. As a result, your ID cards can be used for up to 10 years and are highly tamper-resistant.
Increased Card Protection
- Lamination films add a level of protection to your printed cards, to prevent premature wear (due to friction or UV light) or copies, fraud, and counterfeiting.
A Complete Range of Laminates Covering Your Need
- A complete range of patches and varnishes, with or without holograms, is available.
- Custom laminates can be developed on demand for special projects or specific applications.
- All our patches and varnishes are available in large quantity formats, allowing for maximum system uptime.
Easy to Use
- Simply associate a Card Lamination Module for Agilia to an Agilia retransfer printer to create an all-in-one system. Without replacing your printer, you can easily upgrade it with a lamination station.
Assured Productivity
- In a single operation, Agilia and the CLM can encode various types of cards (magnetic stripe, contact, or contactless smart cards), print them using retransfer technology, and laminate them in one pass.
- Agilia and the CLM can work in "parallel mode" to print and laminate cards simultaneously for maximum efficiency.
Specifications
| Feature | Details |
|---|---|
| General Features | Single and dual-sided lamination Built-in card flattener included |
| Lamination Speed | Single-sided: up to 132 cards/hour Dual-sided: up to 90 cards/hour |
| Card Management and Specifications | Card feeder capacity (from Agilia): 200 cards (0.76 mm - 30 mil) Output hopper capacity: 100 cards (0.76 mm - 30 mil) Reject hopper capacity (from Agilia): 10 cards (0.76 mm - 30 mil) Card thickness: 0.76 mm - 30 mil Types of cards: PVC cards, composite PVC cards, PET cards, polycarbonate (PC) cards, ABS cards Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm) |
| Connectivity | Infra-red kit included |
| Security | Support for Kensington® security lock |
| Evolis High Trust® Films | Automatic detection and configuration Color matching for easy installation Available films: - Clear patch (0.5 or 1 mil): 600 sides/roll - Holographic patch (0.6 or 1 mil): 600 sides/roll (generic or custom) - Transparent varnish: 1200 sides/roll - Continuous hologram varnish: 1200 sides/roll (generic or custom) - Registered hologram varnish: 1200 sides/roll (generic or custom) Other films available on request |
| Software | Evolis Premium Suite® for printer and laminator management Compatible with Windows and Mac OS® |
| Certifications and Compliance | CE, FCC, ICES, VCCI, KC, BIS RoHS |
| Dimensions and Weight | CLM alone: - Dimensions: 270 x 274 x 205 mm (10.63’’ x 10.78’’ x 8.07’’) - Weight: 5.90 kg (13.00 lbs) Agilia and CLM: - Dimensions: 373 x 719 x 205 mm (14.65’’ x 28.31’’ x 8.07’’) - Weight: 15.6 kg (34.39 lbs) |
| Warranty | 3 year warranty Optional extended warranty available |
| Display | LEDs, visual notifications: cleaning alerts, ribbon consumption alerts |
