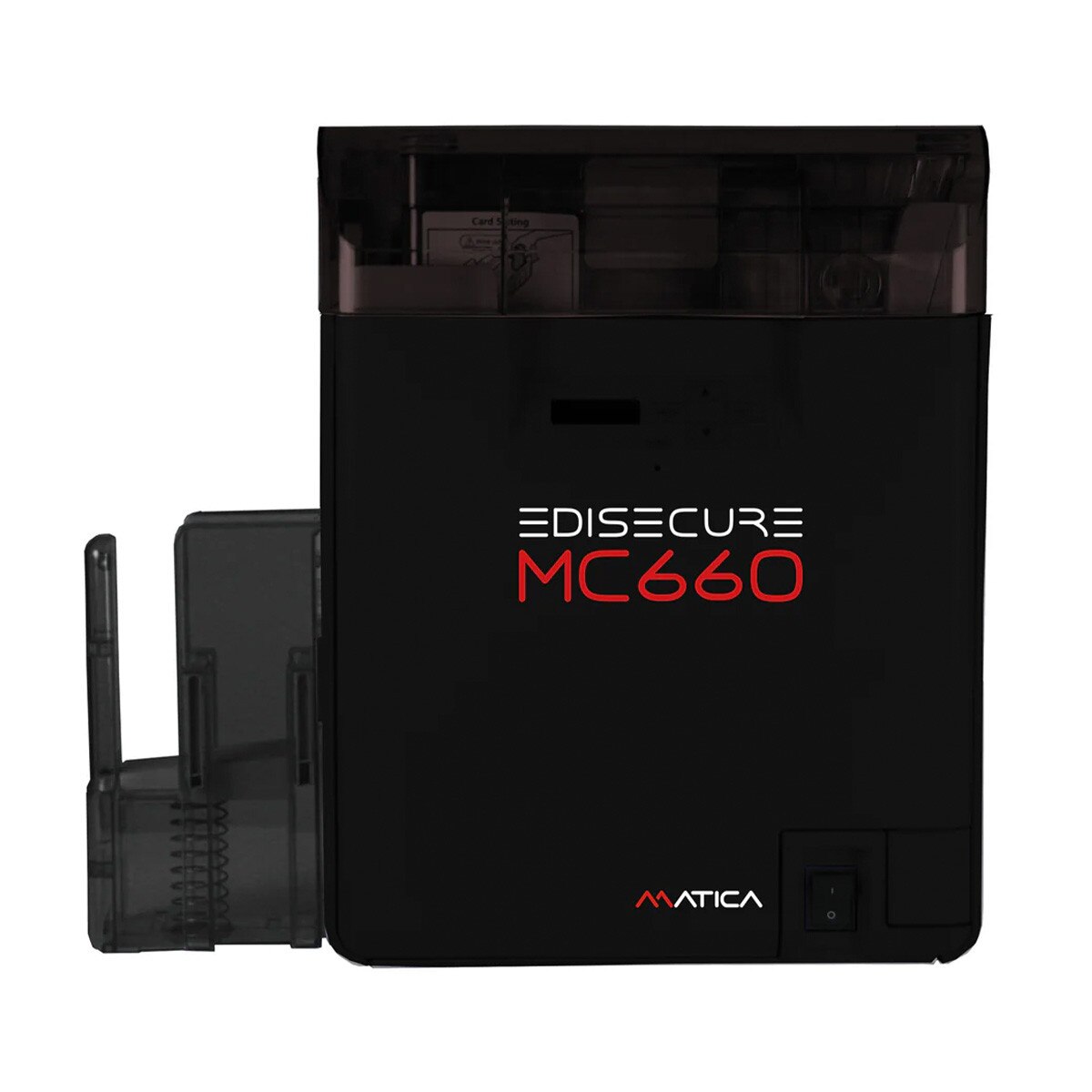

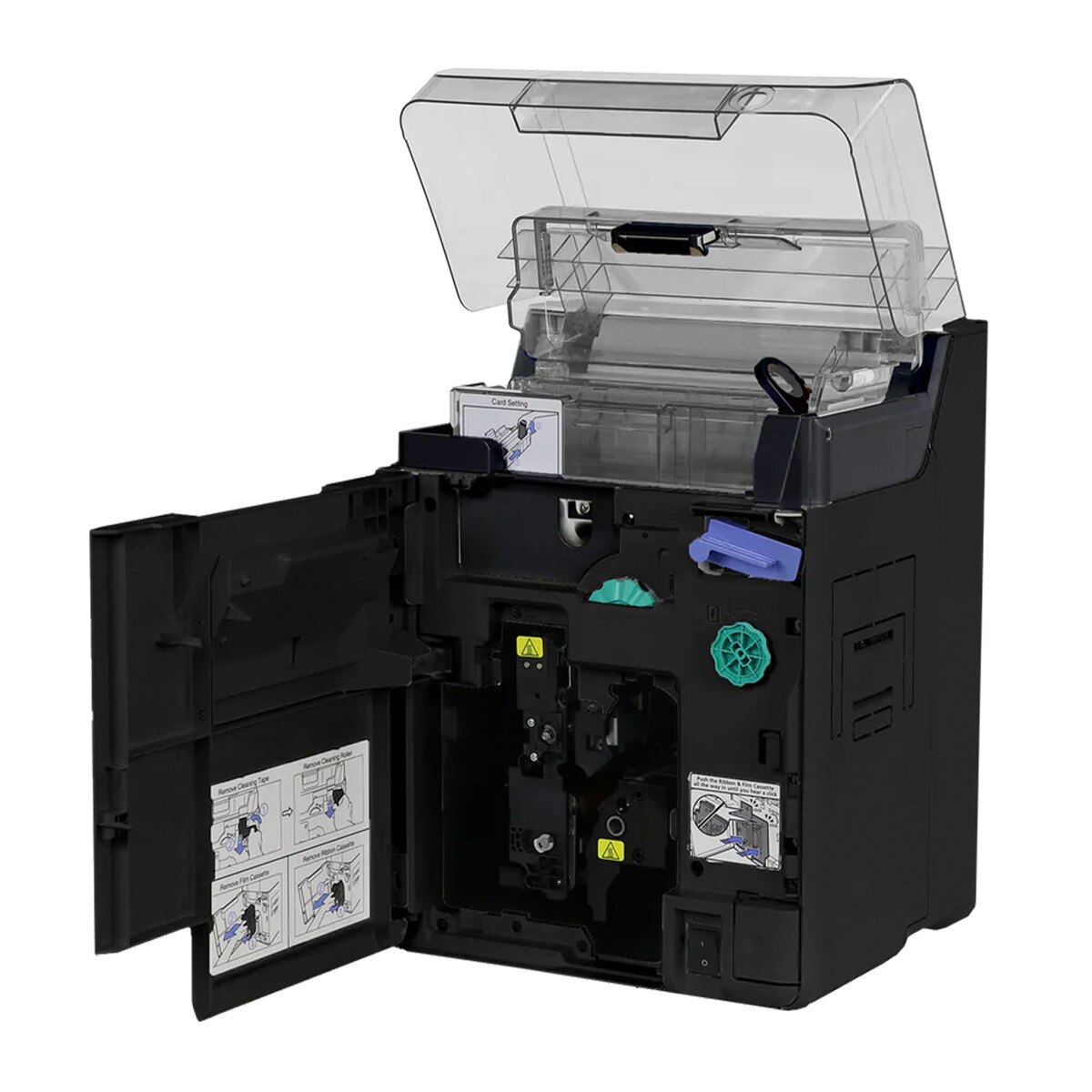

MATICA MC660 Dual-Sided Retransfer Printer
Details
The Matica MC660 delivers exceptional security and high-definition printing, making it perfect for secure government issuance programs like national IDs and driving licenses. With its 600 dpi printhead, the MC660 produces detailed graphics, micro text, and various barcodes (1D, 2D, and QR) with stunning clarity. Its retransfer technology ensures vibrant colors and complete coverage on smart cards and various card materials. For added functionality, the MC660 can be equipped with an optional dual-interface encoder for inline smart card programming. It also integrates with a laser marker, using Matica’s MSPITM technology to enhance security through a combination of color printing and laser etching. The printer supports a range of secure consumables, including UV and pearlescent ribbons, and features RFID-tagged retransfer films with holograms to prevent fraud and simplify stock management. The MC660 is versatile with high-resolution printing, over-the-edge capabilities, and options for inline lamination and laser marking.
Reverse Image Transfer (Re-Transfer) Card Printing Technology
This ID card printer uses advanced "Re-Transfer" printing technology, where ink from a ribbon is first applied to a dye-receptive "transfer film." After all necessary colors are layered onto the film, it is then fused onto a blank PVC or composite card. This two-step process results in a high-definition, "over-the-edge" printed card. Because the printing process uses a flexible transfer film rather than a fixed printhead, it is perfect for producing highly detailed images (up to 600 dpi) on uneven surfaces, such as ID cards with embedded electronic chips (smart cards). Additionally, the re-transfer method extends the lifespan of the printhead by eliminating direct contact with the card material.
600 dpi
This ID card printer offers an impressive resolution of 600 dpi (dots per inch), or 23.6 dpm (dots per millimeter), delivering exceptionally vibrant and crisp prints. DPI, or dots per inch, measures the number of ink dots the printer can place within a linear inch on the card’s surface. With 600 dpi, the printer can produce double the detail compared to standard 300 dpi printers, resulting in sharper images, smoother gradients, and more precise text. This higher resolution is ideal for ID cards where the quality of fine details, such as intricate logos, microtext, and high-definition photos, is critical. The enhanced clarity and vibrancy ensure that every element on the card stands out, providing a superior level of professionalism and security.
Dual-Sided ID Card Printing
This ID card printer is built for dual-sided printing, offering the flexibility to print on both the front and back of each card. This feature is ideal for organizations that need to display more information, such as employee details on one side and company branding or security features on the other. With its advanced technology, this dual-sided printer ensures that both sides of the card are printed with the same high level of quality and precision, all in one seamless operation. This makes it a versatile and efficient choice for creating professional, full-featured ID cards, membership cards, and more, without the need for multiple printing passes or additional equipment. Whether you’re looking to enhance security, improve functionality, or simply make better use of card space, this dual-sided printer is designed to meet your needs with ease.
Magnetic Stripe Encoding
ISO Magnetic stripe encoding allows data to be encoded onto magnetic stripes embedded within plastic or composite cards. An ISO magnetic stripe encoder supports both high coercivity (HiCo) and low coercivity (LoCo) magnetic stripes, giving you flexibility depending on your specific application needs. By configuring your printer and encoder, you can store data across three distinct magnetic stripe tracks, each capable of holding different types of information. These tracks can be programmed for use in a wide range of systems, including door access control, payment processing, loyalty programs, and more. Magnetic stripe technology remains a reliable and widely used method for securely storing and transmitting data, making it a valuable feature for businesses looking to integrate with various third-party systems.
Smart Card
Smart card encoding in ID card printers is the process of writing data onto the embedded chip within a smart card during the card printing process. This allows the card to store and transmit secure information, such as access credentials, personal identification, or payment details. Integrated directly into the ID card printer, the smart card encoder programs the card with the necessary data while the card is being printed, ensuring seamless production of fully personalized and secure credentials. This technology is widely used in environments requiring enhanced security, such as corporate offices, government facilities, and educational institutions.
Specifications
| Specification | Details |
|---|---|
| Print Technology | Dye-sublimation, retransfer |
| Print Resolution | 600 dpi, optimized for microtext, 1D, 2D, and QR barcodes |
| Print Area | CR-80 cards (over-the-edge) |
| Print Speed | 145 cph (YMC single-side, batch print with native driver) |
| Print Mode | Dual-sided (as standard) |
| Printer Memory | 64 Mb |
| Communications Interface | USB 1.0, 1.1, 2.0, 3.0; Ethernet TCP-IP 10BaseT, 100BaseT; Serial RS-232C |
| Dimensions (HxWxD) | 436 x 340 x 297 mm / 17.2” x 13.4” x 11.7” |
| Weight | 20 kg, 44.1 lb |
| Power Supply | AC90/125V, 220-240V/110-115V, 50-60 Hz |
| Operating Environment | Temperature: 10ºC - 30ºC, 50ºF - 86ºF Humidity: 20% - 80% (non-condensing) |
| Storage Conditions | Temperature: -20ºC to 60ºC, -4ºF to 140ºF Humidity: 20% to 90% (non-condensing) |
| Sound (ISO 7779) | Operating sound pressure less than 53dB (A) |
| Certifications | RoHS, CE, FCC, UL, IEC, CCC, EAC |
| Warranty | 3 years; Lifetime warranty on printhead (subject to the use of chromXpert® ribbons) |
| Card Specifications | |
| Input Hopper Capacity | 250 cards (0.76 mm / 30 mil thickness) |
| Output Hopper Capacity | 250 cards (0.76 mm / 30 mil thickness) |
| Reject Hopper Capacity | 30 cards (0.76 mm / 30 mil thickness) |
| Card Thickness | 0.25 mm - 1.0 mm / 10 mil - 40 mil (manual adjustment) |
| Card Types | PVC, PVC-C, PET-F, PET-G, ABS, PC |
| Software Specifications | |
| Printer Driver | Windows 10 (32/64 bits), Windows 8 (32/64 bits), Windows 7 (32/64 bits), Windows Vista (32 bits), Windows Server 2008 R2 |
| Integration Tools | EDIsecure® middleware, SDK included for system integrators |
| Options | |
| Magnetic Stripe Encoding | ISO 7811 HiCo/LoCo (factory fit only) |
| Smart Card / Contactless Encoding | Contact PC/SC, EMV compliant Smart contact station: ISO 7816-2 ISO14443A, B, ISO15693, MIFARE®, DESFire®, HID iClass® |
| Inline Lamination | Single or dual-sided sold separately |
| Inline Laser | Inline high performance MOPA desktop laser Optional MSPITM (Matica Secure Protected Image) |
| Printer Security | Centralized locking system to secure access to blank cards, ribbon, and film (manual and electronic options) |
| Consumables Security | RFID protection of all ribbons and retransfer film RFID tracking of all supplies for fraud protection and stock management |
