Thales (Gemalto) AT10K-m OEM Document Reader
Details
Advanced document authentication built for kiosk, counter, and eGate integration
The Thales Document Reader AT10K-m OEM is designed for organizations that need to integrate powerful identity verification directly into self-service kiosks, service counters, airport eGates, and transportation terminals.
Built with a low profile and simple shape, the AT10K-m OEM is ideal for environments where the reader needs to become part of a larger system, not sit beside it. It supports physical documents, electronic passports, mobile driver’s licenses, mobile documents, barcodes, and optional smartcard capabilities.
With mDL and mDoc compatibility, LED landing light feedback, anti-glare technology, Energy Star certification, and advanced SDK support, the AT10K-m OEM gives integrators a compact, future-ready reader for secure and efficient identity verification.
Future-ready for mobile IDs and digital documents
The defining advantage of the AT10K-m OEM is optional mDL and mDoc compatibility. That means it is designed not only for traditional physical IDs, passports, and travel documents, but also for the next generation of digital credentials.
As mobile driver’s licenses and mobile documents become more common, self-service systems need hardware that can keep up. The AT10K-m OEM supports identity data transfer using QR code engagement with Bluetooth Low Energy, or NFC pairing, conforming to the ISO/IEC 18013-5 digital identity standard.
For integrators, kiosk builders, airports, terminals, and organizations designing long-term identity verification systems, this helps protect the investment. The AT10K-m OEM supports today’s document workflows while providing a path forward as mobile ID adoption grows.
Physical IDs today. Mobile IDs tomorrow. One OEM reader built for both.
- Optional mobile driver’s license support
- Optional mobile document compatibility
- QR code engagement with Bluetooth Low Energy data transfer
- NFC pairing for compatible digital identity documents
- Firmware and SDK updates aligned with evolving digital ID standards
- Tap-and-Go functionality for a faster self-service experience
Purpose-built for integration
The AT10K-m OEM is made for customers who need to build identity verification into their own equipment, including self-service kiosks, counters, and eGates.
Its low profile and simple shape make it well suited for airport, railway, cruise terminal, hospitality, government, and commercial installations where space, usability, and reliability all matter.
Designed to disappear into the system while making identity verification easier to use.
- Low-profile OEM design for system integration
- Ideal for self-service kiosks and counters
- Suitable for airport eGates and transportation terminals
- Compact shape supports clean installation into larger systems
Designed for self-service users
The AT10K-m OEM is especially useful in unattended or self-service environments where the customer may not have staff guidance during document presentation.
The landing lights LED feedback arrangement naturally encourages correct document placement and use of the reader, helping improve processing speed and reduce passenger frustration.
Clear visual guidance helps customers get it right the first time.
- LED landing lights guide correct document placement
- Helps reduce incorrect scans and retries
- Supports faster customer and passenger processing
- Helps reduce frustration in self-service environments
Clear presentation area for documents and mobile screens

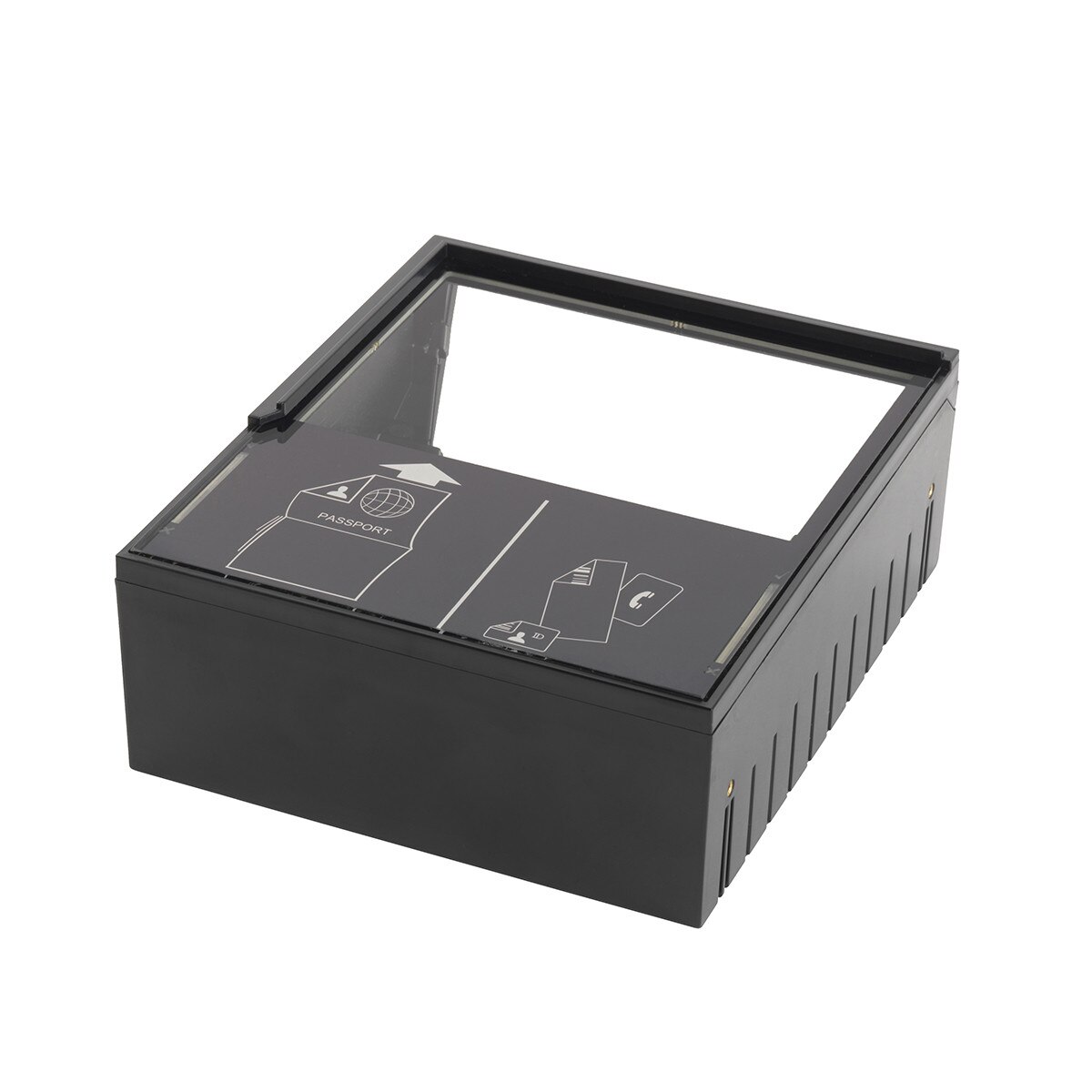

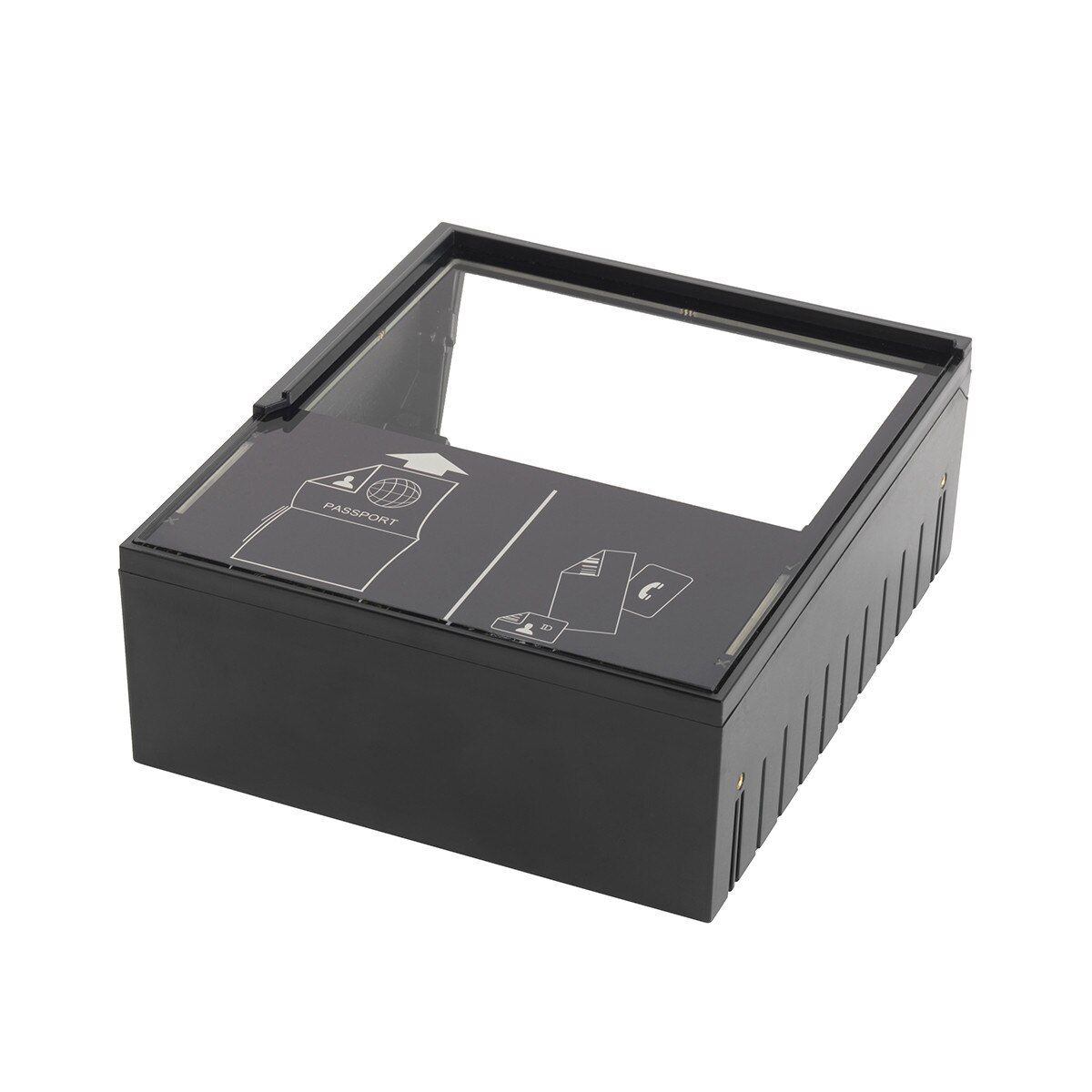

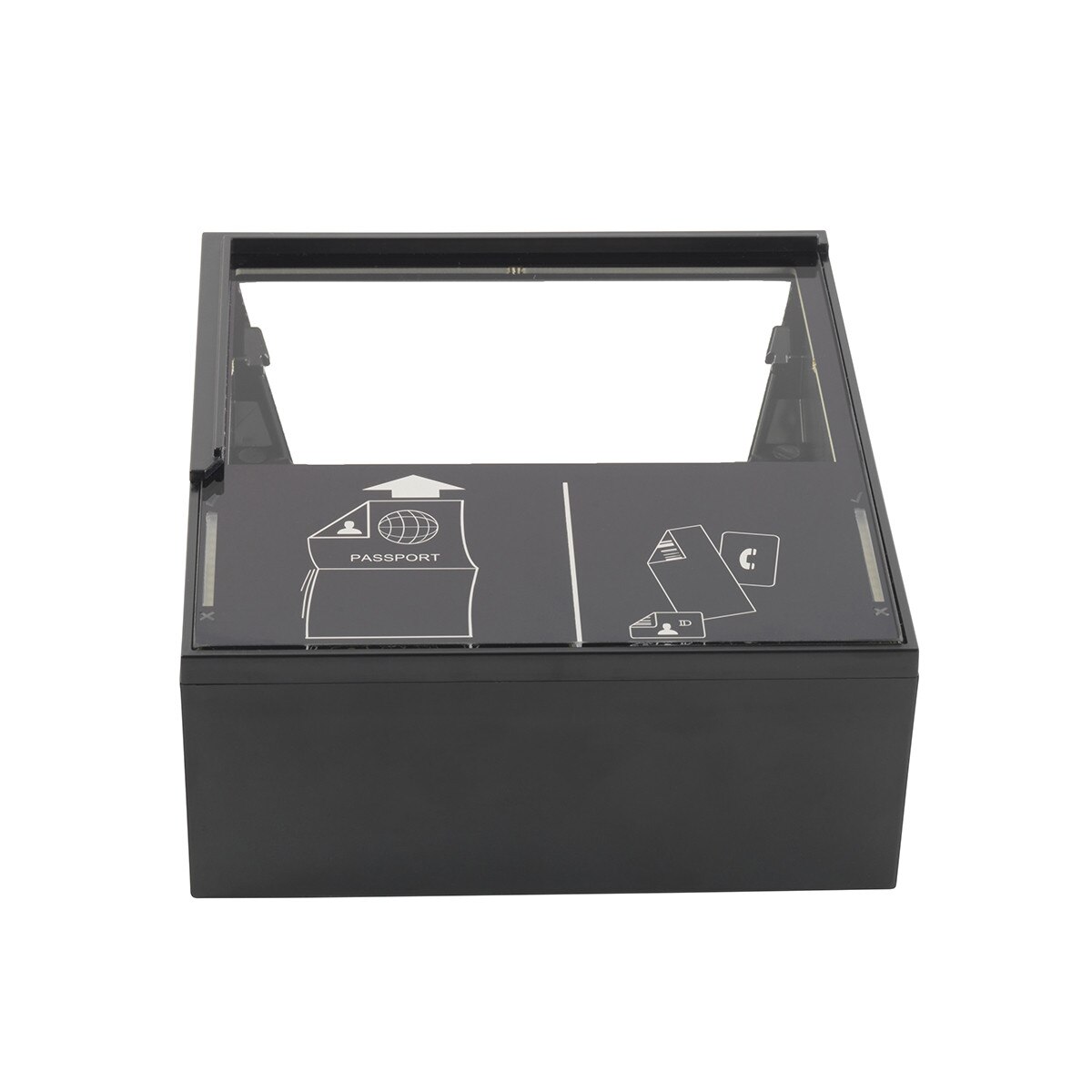

The AT10K-m OEM features a virtually flat top with new user instruction decals, making the reading area clear and easy to understand when presenting a paper boarding pass, cell phone boarding pass, passport, or ID document.
This helps create a more intuitive self-service experience, especially in high-traffic travel environments where users need to move quickly and confidently.
- Virtually flat top improves visibility of the reading area
- User instruction decals support easier self-service use
- Supports paper and mobile boarding pass presentation
- Helps users present passports and ID documents correctly
Power-efficient and environmentally conscious
The AT10K-m OEM is based on the same advanced AT10K-m platform, offering Energy Star certified performance and consuming 28% less power than previous generations.
For large-scale deployments across airports, terminals, kiosks, or multiple service points, that improved efficiency supports responsible technology purchasing and lower power consumption.
Advanced identity verification with a lighter power footprint.
- Energy Star certified document reader platform
- Consumes 28% less power than previous generations
Comprehensive document reading capabilities
The AT10K-m OEM supports ICAO-compliant documents in near infrared per ICAO 9303, one-line driving licenses in near infrared per ISO 18013 Part 2, and multiple 1D and 2D barcode formats.
Barcode support includes PDF417, QR Code®, DataMatrix™, and Aztec formats, along with an AAMVA parser that decodes North American driver’s license barcodes.
- OCR reading for ICAO-compliant documents
- 1D barcode support including Code 128, Code 39, EAN-8, and EAN-13
- 2D barcode support including PDF417, QR Code®, DataMatrix™, and Aztec
- AAMVA parser for North American driver’s license barcodes
ePassport, RFID, and NFC support
The AT10K-m OEM includes contactless RFID and NFC reading using ISO 14443 Type A and B through a PC/SC interface.
It supports ePassport reading for ICAO 9303 LDS 1.7 and 1.8, including PKI through the included SDK, along with iDL and eDL reading and access control for electronic driving licenses.
Advanced contactless reading for secure identity documents and electronic credentials.
- ISO 14443 Type A and B contactless reading
- ePassport support for ICAO 9303 LDS 1.7 and 1.8
- Supports standardized rates up to 848 Kbps
- PC/SC interface supports additional card types such as Mifare™
Powerful software and SDK features
The AT10K-m OEM uses the same API interface as other Thales document readers using the Document Reader SDK, helping simplify integration for developers and system builders.
The host application can select illumination sources, image type, image compression, photo extraction, reflection or ambient light elimination, color enhancement, and which data groups to read.
- Full SDK with DLLs, code examples, utilities, and demos
- High-level API for quick development
- Low-level API for detailed reader control
- Supports Visual C++®, Java®, Visual Basic® .NET, and Visual C#®
Clear images and automated data entry
The AT10K-m OEM captures images in BMP, PNG, or JPEG format and supports auto-triggered document capture to help reduce manual handling and speed up the scanning process.
VIZ data capture is available as an option, supporting data entry automation, accurate form filling, and reduced reliance on manual typing or photocopying.
Less manual typing. Better data accuracy. Faster form filling.
- Auto-triggered document capture
- Image formats include BMP, PNG, and JPEG
- Optional VIZ data capture
- Supports accurate form filling, including web pages
Designed for enhanced security applications
The AT10K-m OEM is ideal for organizations integrating reliable identity verification into customer-facing, passenger-facing, visitor-facing, and regulated environments.
It supports document authentication, age and ID verification, fraud prevention, registration, transportation workflows, access control, visitor management, and more.
- Airport eGates and self-service airport kiosks
- Railway and cruise terminal identity workflows
- Financial services registration and fraud prevention
- Hospitality, gaming, healthcare, and visitor management systems
Flexible deployment and maintenance
Firmware is upgradeable through the USB interface, and configuration and calibration are stored in non-volatile memory. Images are captured in volatile memory for immediate erasure upon power loss to support GDPR compliance.
- Upgradeable firmware through USB
- Non-volatile configuration and calibration
- Two-year warranty
Operating system compatibility
The AT10K-m OEM supports modern workstation and integration environments, including Windows® operating systems, Linux builds, and limited SDK functionality for macOS.
- Windows® 8.1, Windows® 10, and Windows® 11, 32 or 64 bit
- Builds for Ubuntu and CentOS LTS, 32 and 64 bit
- macOS support with limited SDK functionality
- Requires one USB 3 port and 60 MB of hard drive space for software
Low-profile OEM form factor
The AT10K-m OEM is designed with a low-profile shape for integration into kiosks, counters, eGates, and transportation terminal systems.
The reader measures 17.1 x 14.5 x 6.5 cm, or 6.7 x 5.7 x 2.6 in, and weighs approximately 1.1 kg, or 2.4 lbs.
Compact OEM footprint. Powerful identity capture. Built for integration.
TAA-compliant for government purchasing
The Thales Document Reader AT10K-m OEM is TAA-compliant, making it suitable for many federal, government, and contract purchasing requirements where Trade Agreements Act compliance is required.
In practical terms, TAA compliance means a product is manufactured or substantially transformed in the United States or in a TAA-designated country. For buyers working through GSA Schedule contracts or other covered government procurement channels, this helps confirm that the product meets applicable country-of-origin requirements.
For government buyers, TAA compliance helps simplify procurement and reduce sourcing concerns.
Why TAA compliance matters
Many public-sector purchasing teams need equipment that aligns with federal acquisition rules. TAA-compliant products help agencies, contractors, schools, transportation authorities, and other regulated organizations buy with greater confidence.
- Supports federal and government procurement requirements
- Helps meet Trade Agreements Act sourcing standards
- Useful for GSA Schedule and contract-based purchasing
- Provides added confidence for regulated identity verification projects
OEM identity verification, made practical
The Thales Document Reader AT10K-m OEM combines low-profile integration, physical document authentication, optional mobile ID support, Energy Star efficiency, high-resolution imaging, contactless RFID/NFC reading, robust SDK tools, self-service guidance, and TAA-compliant purchasing support in one compact reader built for kiosks, counters, eGates, and modern identity verification systems.
