Zebra ZXP Series 9 Single-Sided Retransfer Printer
Photo-Like Image Quality, Market-Leading Throughput
The Zebra ZXP Series 9 second generation retransfer printer is now available with 600 dpi, delivering photo-like image quality at market leading throughput.

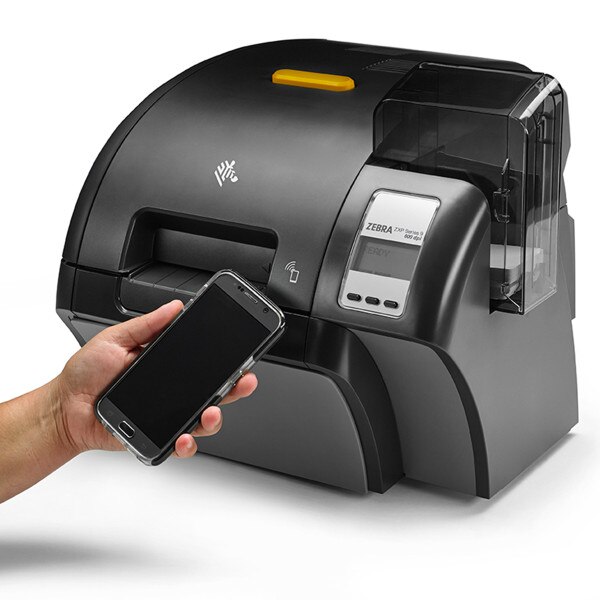

Users will benefit from a host of new features designed to make printer setup and operation easier: access printer information and support immediately with Android devices and the NFC Print Touch™ feature, or go straight to the printer support web page using any smart device and QR Code technology. Print setup and operation is simplified with a driver and toolbox featuring an all-new user interface.
As a second-generation printer, the ZXP Series 9 benefits from all the improvements made to the prior generation. The printer includes additional changes designed to improve printer reliability—which means less printer downtime and consistent quality cards from start to finish.
Outstanding print quality and fast print speeds
The ZXP Series 9 delivers exceptional print quality from the first to the last card—even from a cold start. Utilizing dye-based inks, the ZXP Series 9 offers a wider range of colors and color accuracy to produce prints that are more vibrant and realistic. Available with either 300 or 600 dpi, the ZXP Series 9 offers the best in class retransfer and laminate technology with fast throughput to save cost and time.
Color predictive technology
Zebra's exclusive Color Predictive Technology (CPT) delivers superior photo-like image quality. Based on patented image-processing algorithms, Zebra's CPT constantly monitors printing and instantaneously adapts printer settings to automatically produce the highest print quality—time after time, card after card.
Smart design for flexible, hassle-free operation
Zebra's patented dual-sided, simultaneous retransfer printing design eliminates the need for the printer to mechanically flip cards during production. This engineering makes throughput even faster and reduces the risk of costly mechanical errors and card jams. Featuring multiple connectivity options including standard USB and Ethernet, along with optional Wi-Fi (US and EU only), the ZXP Series 9 gives businesses added flexibility to relocate the printer anywhere within a network. Also, the printer's new user-selectable print quality mode provides more options and control.
Easy setup and configuration
Along with user interface improvements, enterprises will also enjoy added benefits including a certified Windows® driver and an enhanced toolbox for a consolidated view of all aspects of the ZXP Series 9 printer. These features work together to make the printer easier to set up and configure.
Valuable cost savings and reduced waste
Users can ensure security and reduce the likelihood of forgeries with best-in-class retransfer and laminate technology—including holographic images. Extremely low cost-per-card operation incorporates Zebra's patented waste-free laminate technology, featuring liner-less media with a single core and no carrier. Waste is reduced by 50%, saving up to 30% in costs compared to the competition.
- Dimensions (HxDxW): 13.2 in. H x 18.75 in. W x 20.4 in. D
- Weight: 27.5 lbs (12.5 kg)
- Cards per Hour (Single-Side): 180 cph @ 300 dpi, 125 cph @ 600 dpi
- Cards per Hour (Dual-Side): 190 cph @ 300 dpi, 140 cph @ 600 dpi
- Cards per Hour (Dual-Sided with Dual-Sided Lamination): 180 cph
- Card Thickness: 30 mil
- Card Size: CR80 ISO 7810 ID-1 format
- Input Hopper Capacity: 150 cards
- Output Hopper Capacity: 100 cards
- Printer/Printhead Warranty: Two-Year Unlimited Warranty
- Print Resolution: 300 or 600 dpi
- Print Technology: Dye Diffusion Retransfer
- Connectivity: USB, Ethernet, & Wi-Fi (Optional)
- Operating Systems: Windows 8, Windows 2012, Windows 10, Windows 2008, Windows 7
