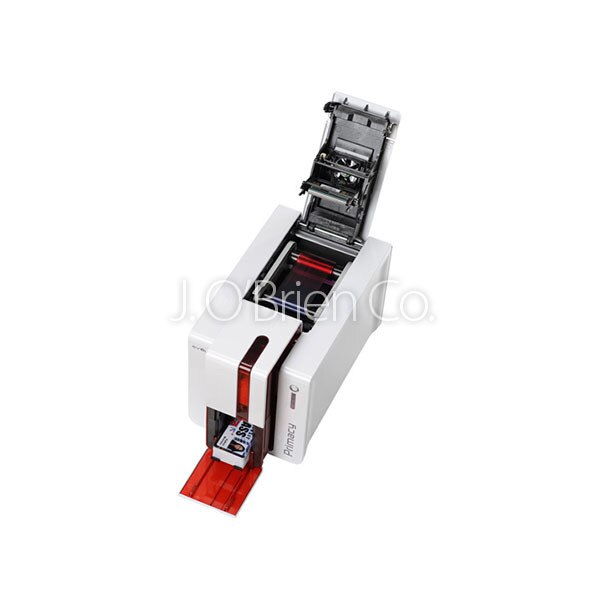

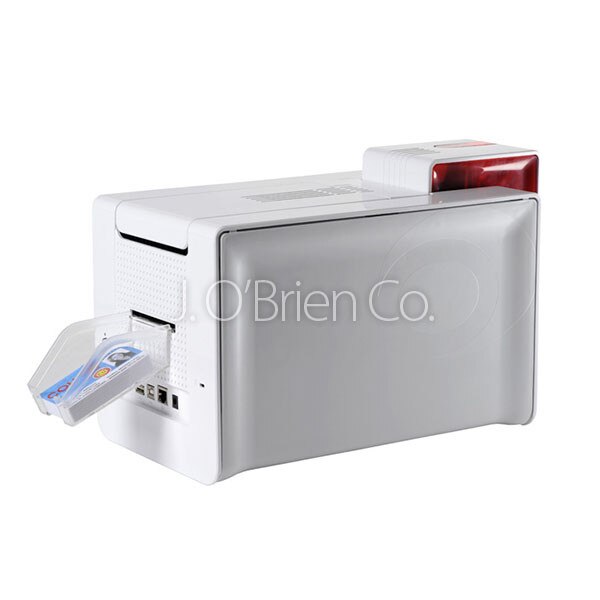

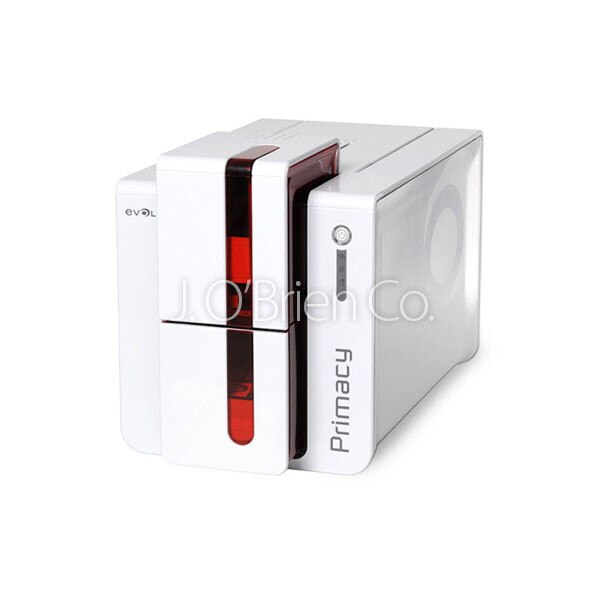

Evolis PM1HB000RD Primacy Dual Sided Mag Stripe Fire Red Ethernet ID Card Printer
Details
Direct to Card Printing Technology
This ID card printer utilizes “direct-to-card” printing technology, which diffuses ink (in the form of a ribbon) directly to a blank PVC or Composite card material. The technology is literally named to describe the one step process in which the print head heats up then comes in direct contact with the ribbon and blank card substrate Direct to card printers and their simple printing process improve efficiency, and are ideal for high volume printing requirements. Card printing that utilizes direct contact with a fixed printhead results in “edge to edge” printing, which leaves a small unprinted border around the perimeter of the card.
300 dpi
This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).
Dual Sided ID Card Printing
With a dual sided printing module, This ID card printer can automatically print on both sides of a PVC or Composite card.
Magnetic Stripe Encoding
This ID card printer includes a magnetic stripe encoding module. With an ISO magnetic stripe encoding module, you will be able to encode both high and low coercivity magnetic stripes embedded within a plastic or composite card. By configuring your printer and encoder, data can be stored across the three available magnetic stripe tracks; these magnetic stripe tracks can be used in a variety of third party systems. Systems that utilize magnetic stripe technology include: door access, payment, loyalty, etc.
Specifications
Dual side printing
Printing Speeds (sec/card)
Color (YMCKO-K): 140 cards/hour
Input Hopper Capacity
100
Output Hopper Capacity
100
Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the size of a standard credit card)
Card Thickness Accepted
10-50 mil
Interface
USB & Ethernet
Software Drivers
Microsoft® Windows® XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit), Windows 8 (32- & 64-bit), Mac OS X, Linux OS (upon request)
Evolis Warranty
3 years (printer and print head)
Evolis Primacy Weight & Dimensions
8.86 lbs (4.02 kg), 9.72'' x 8.07'' x 14.99'' (247mm x 205mm x 381mm)
Printer Options
Encoding:
Magnetic stripe encoder ISO7811 HiCo/LoCo, JIS2
Smart contain station ISO 7816-2
Contact smart card encoder - PC/SC, EMV 2000-1
Contactless encoder ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
