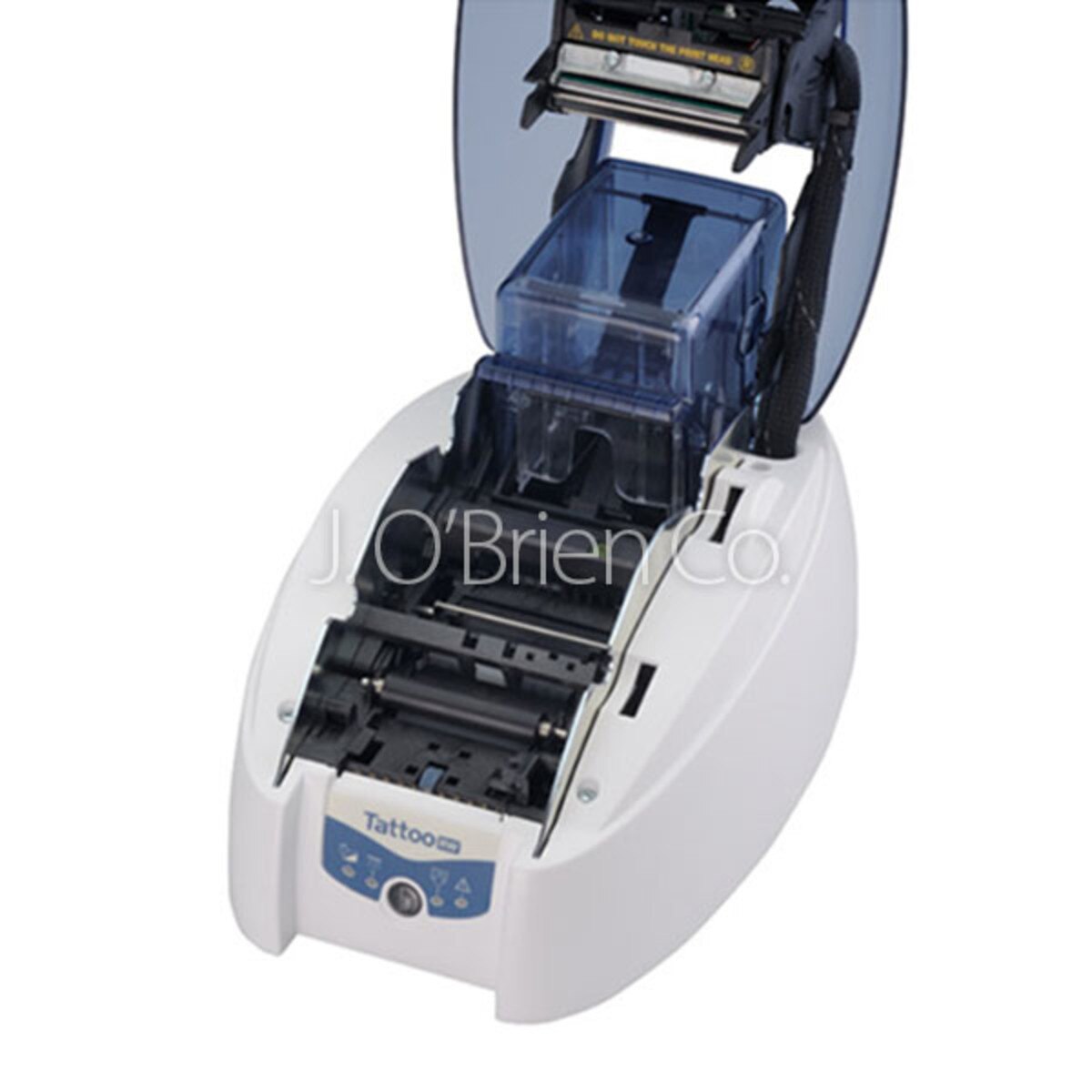

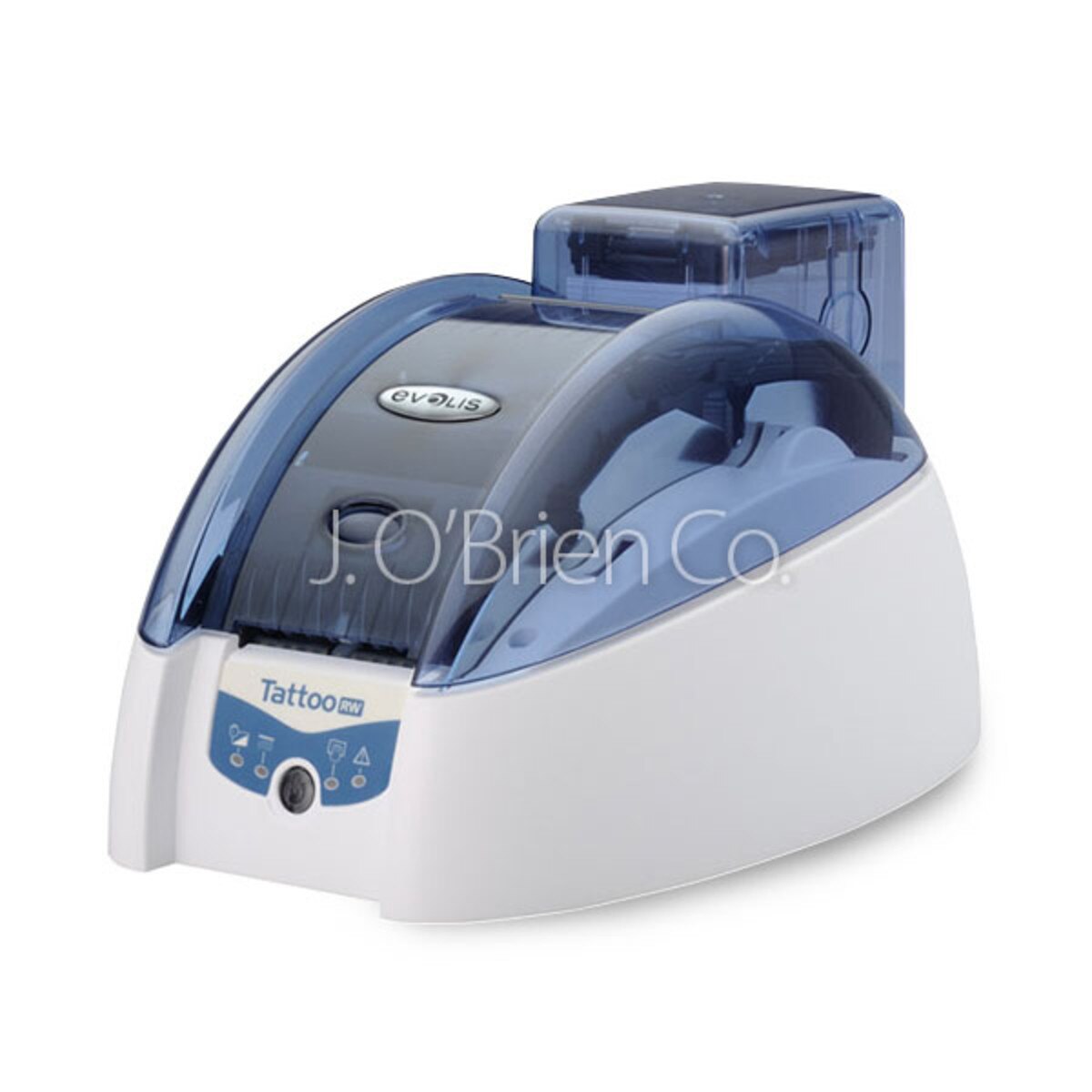

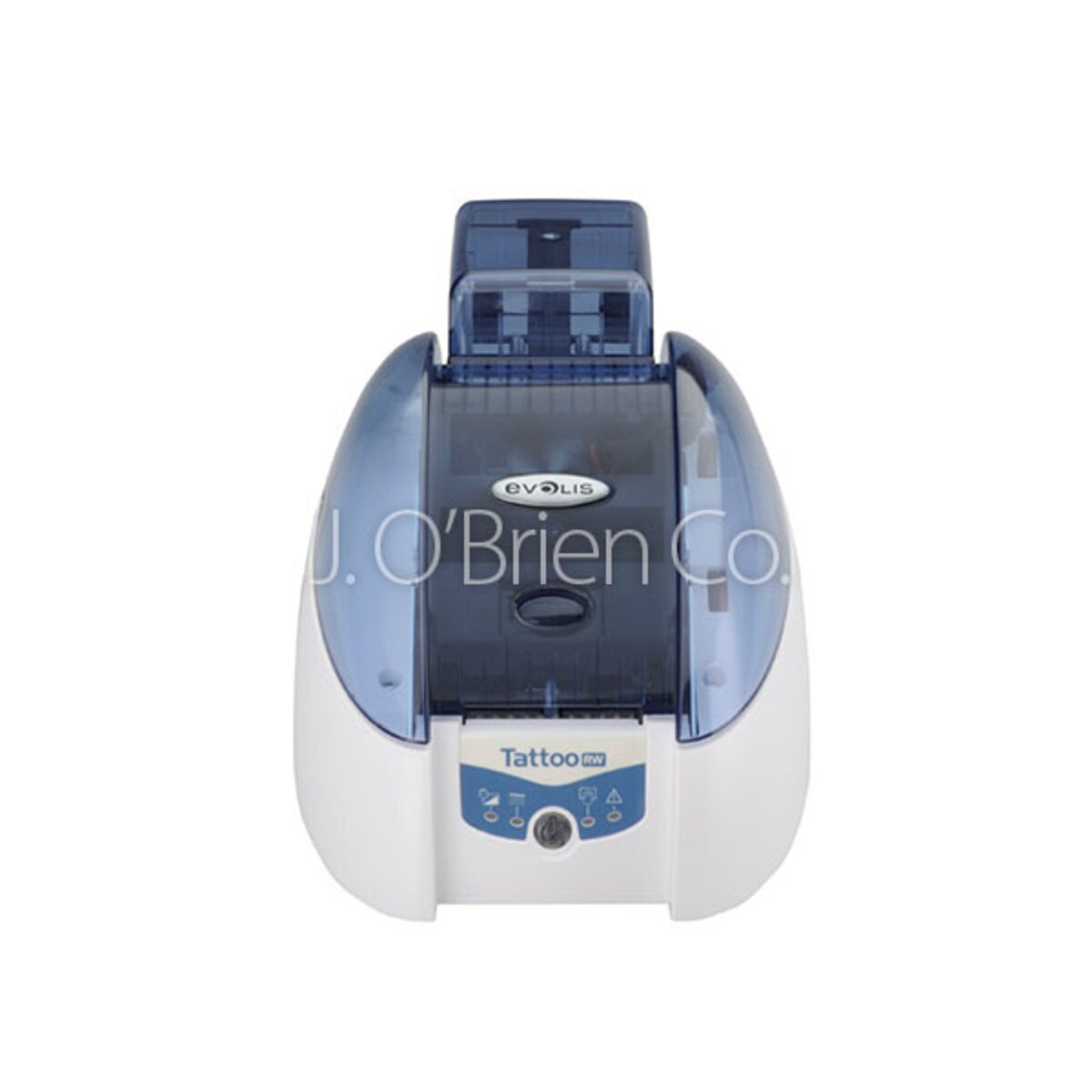

Evolis TTR201BBH-B TattooRW Single Sided Card Printer (Mag)
Direct to Card Printing Technology
This ID card printer utilizes “direct-to-card” printing technology, which diffuses ink (in the form of a ribbon) directly to a blank PVC or Composite card material. The technology is literally named to describe the one step process in which the print head heats up then comes in direct contact with the ribbon and blank card substrate Direct to card printers and their simple printing process improve efficiency, and are ideal for high volume printing requirements. Card printing that utilizes direct contact with a fixed printhead results in “edge to edge” printing, which leaves a small unprinted border around the perimeter of the card.
This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).
Single Sided ID Card Printing
This ID card printer can print on only one side of a PVC or Composite card.
Magnetic Stripe Encoding
This ID card printer includes a magnetic stripe encoding module. With an ISO magnetic stripe encoding module, you will be able to encode both high and low coercivity magnetic stripes embedded within a plastic or composite card. By configuring your printer and encoder, data can be stored across the three available magnetic stripe tracks; these magnetic stripe tracks can be used in a variety of third party systems. Systems that utilize magnetic stripe technology include: door access, payment, loyalty, etc.
Evolis TattooRW Printing Capability
Single side printing
Printing Speeds (sec/card)
8 seconds (manual)
12 seconds (card feeder)
3-Track ISO magnetic encoding: 4 seconds per card
Input Hopper Capacity
100 blank cards (Detachable)
Output Hopper Capacity
15 cards (Detachable)
Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the size of a standard credit card)
Card Thickness Accepted

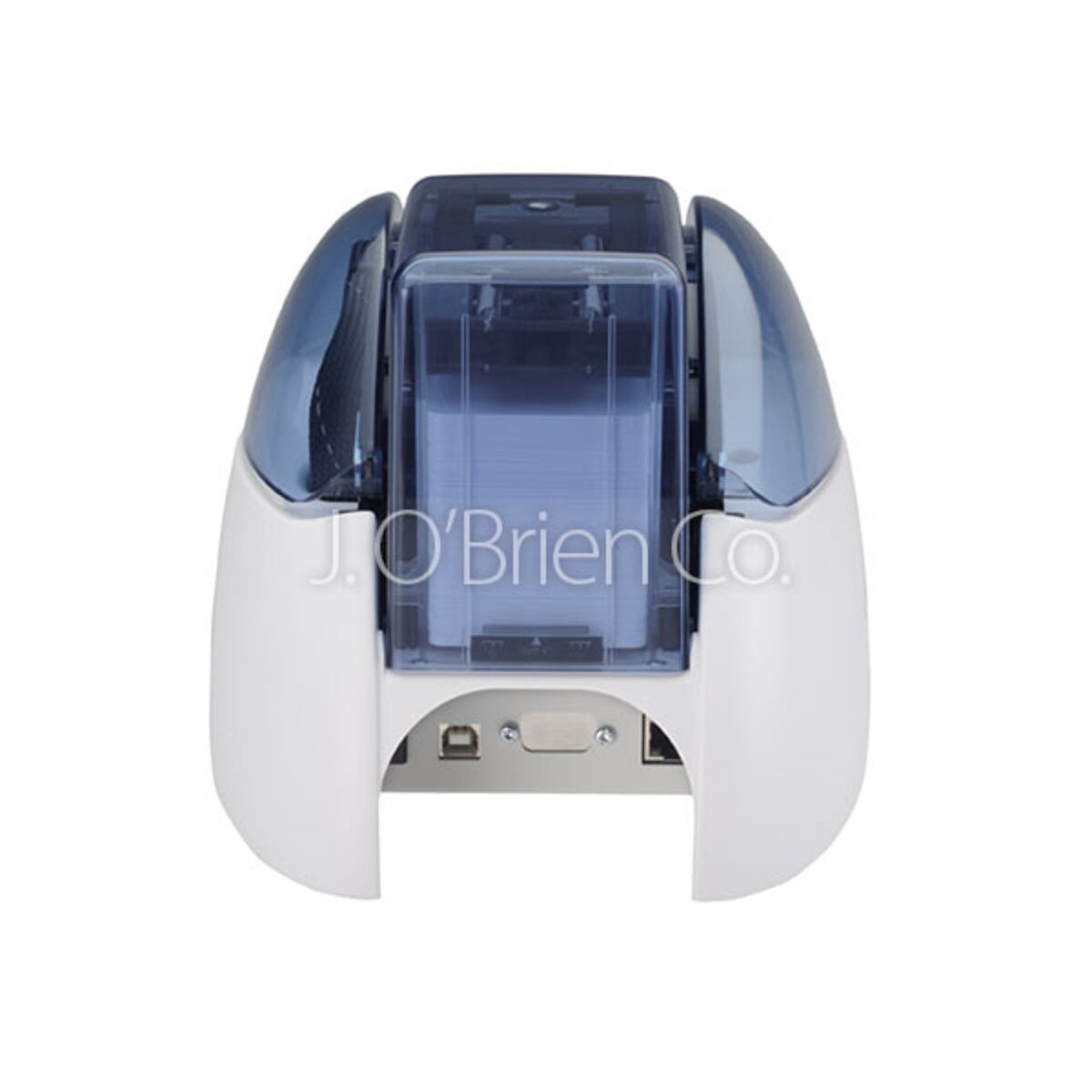

USB & Ethernet
Microsoft® Windows® XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit)
Evolis Card Printer Warranty
2 years (printer and print head), limited to 15,000 inserted cards
Evolis TattooRW Weight & Dimensions
5.3 lbs (2.4 kg), 6.54'' x 14.49'' x 7.36'' (166mm x 368mm x 187mm)
HiCo/LoCo magnetic stripe encoder ISO7811 or JIS2
Contactless encoder ISO 14443A & B, Mifare, DesFire (USB connection)
