Fargo 55608 DTC4500e Single-Sided Photo ID System
Details
Fargo 55608 DTC4500e Single-Sided ID Card Printer Bundle
Elevate your ID card printing capabilities with the Fargo 55608 DTC4500e Single-Sided ID Card Printer Bundle. This all-in-one package is tailored for organizations requiring high-volume, secure, and efficient ID card production. Ideal for large businesses, educational institutions, and government facilities, this bundle ensures reliable performance with every use.
The Fargo DTC4500e stands out with its advanced features, including a built-in Omnikey 5127 encoder for seamless encoding of contact and contactless smart cards. Coupled with Asure ID Express software, this printer bundle simplifies the process of designing, managing, and printing custom ID cards, making it the perfect solution for secure and professional ID production.
Why Choose the Fargo 55608 DTC4500e?
This bundle is not just about printing cards—it's about enhancing your security and streamlining your operations. The included YMCKO ribbon allows you to produce up to 500 full-color cards, and the 100 UltraCards ensure that you have the best materials on hand. With a 3-year printer warranty and a USB camera included, you're fully equipped to start producing high-quality ID cards right away.
Whether you need to issue employee badges, membership cards, or secure access credentials, the Fargo 55608 DTC4500e provides the speed, reliability, and security your organization demands. Invest in this robust printer bundle today and experience a seamless, high-volume ID card printing process that keeps your operations running smoothly.

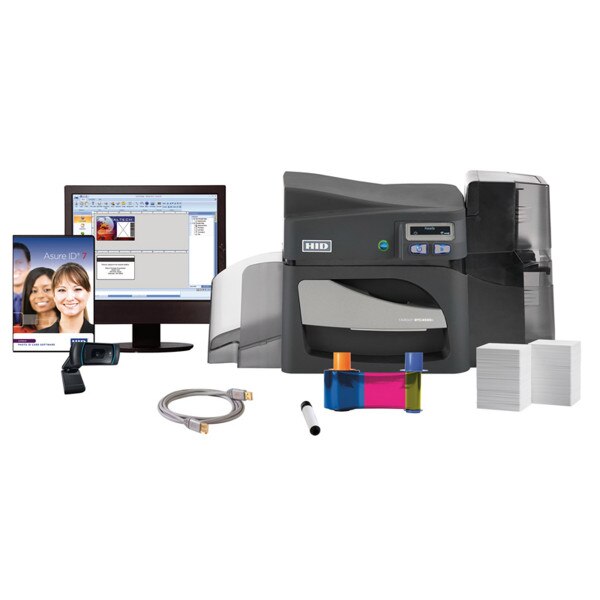

Includes:
- Fargo 55608 DTC4500e Single-Sided ID Card Printer
- Omnikey 5127 Encoder
- Asure ID Express Software
- YMCKO Ribbon (500 prints)
- 100 UltraCards
- USB Camera
- 3-Year Printer Warranty
Specifications
| Specification | Details |
|---|---|
| Print Method | Dye sublimation / resin thermal transfer |
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | Full-color with resin black and overlay panel (YMCKO), 500 prints Full-color half-panel with resin black and overlay panel (YMCKO), 850 prints Full-color with two resin black panels and overlay panel (YMCKOK), 500 prints Full-color with fluorescing, resin black and overlay panel (YMCFKO), 500 prints Full-color with two resin black panels (YMCKK), 500 prints Resin black (standard and premium), 3000 prints Resin white, 2000 prints |
| Print Speed | 6 seconds per card (K); 8 seconds per card (KO); 16 seconds per card (YMCKO); 24 seconds per card (YMCKOK) |
| Security Features | Optional locking hoppers; Password protection; AES 256 encryption; Resin scramble data protection; Fluorescent panel printing |
| Accepted Card Sizes | CR-80 (3.375" L x 2.125" W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313" L x 2.063" W / 84.1 mm L x 52.4 mm W) |
| Print Area | CR-80 edge-to-edge (3.36" L x 2.11" W / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W) |
| Accepted Card Thickness | Print only: .009" - .040" / 9 mil - 40 mil / .229 mm - 1.016 mm; Print / lamination: .030" - .040" / 30 mil - 40 mil / .762 mm - 1.02 mm |
| Accepted Card Types | PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; rewrite |
| Input Hopper Card Capacity | 100 cards per input hopper (.030" / .762 mm) – Dual input hopper standard on every unit for a total input capacity of 200 cards |
| Output Hopper Card Capacity | Single-sided: Up to 30 cards. Dual-sided: Up to 100 cards (.030” / .762 mm) |
| Reject Hopper Card Capacity | Up to 100 cards (.030" / .762 mm) - same-side input/output card hopper or lamination module required |
| Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Memory | 32 MB RAM |
| Software Drivers | Windows® 7 / 10 / 11 / Server 2012 / Server 2016 / Server 2019 / Server 2022 |
| Interface | USB 2.0, Ethernet with internal print server |
| Operating Temperature | 65° to 80° F / 18° to 27° C |
| Humidity | 20–80% non-condensing |
| Dimensions | Single-sided printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm D Dual-sided printer: 9.8˝ H x 18.7˝ W x 9.2˝ D / 249 mm H x 475 mm W x 234 mm D Printer + lam: 18.9˝ H x 18.7˝ W x 9.2˝ D / 480 mm H x 475 mm W x 234 mm D |
| Weight | Single-sided printer: 9 lbs. / 4.1 Kg Dual-sided printer: 11 lbs. / 5 Kg Printer + lam: 20 lbs. / 9.1 Kg |
| Agency Listings | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC |
| Environmental Features | GreenCircle® Certified card printer (base models only without encoders) Refillable supply cartridges (ECO) Card rewrite support |
| Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
| Supply Frequency | 50 Hz / 60 Hz |
| Warranty | Printer: three years Printhead: three years, unlimited card passes with UltraCard™ |
| Encoding Options | 125 kHz (HID Prox) reader 13.56 MHz (iCLASS® Standard / SE / SR / Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire EV1/EV2, ISO 14443 A/B, ISO 15693) read/write encoder Contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 |
| Supported Access Control Credential Programming | iCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE DESFire EV1, HID Prox |
| Options | Dual-sided printing Single- or dual-sided lamination Same-side input/output card hopper Locking card input/output hopper Smart card encoding (contact/contactless) Magnetic stripe encoding Printer cleaning kit Secure proprietary consumables system |
| Software | FARGO Workbench™ diagnostic utility with Color Assist spot color matching |
| Display | User-friendly, SmartScreen graphical display |
