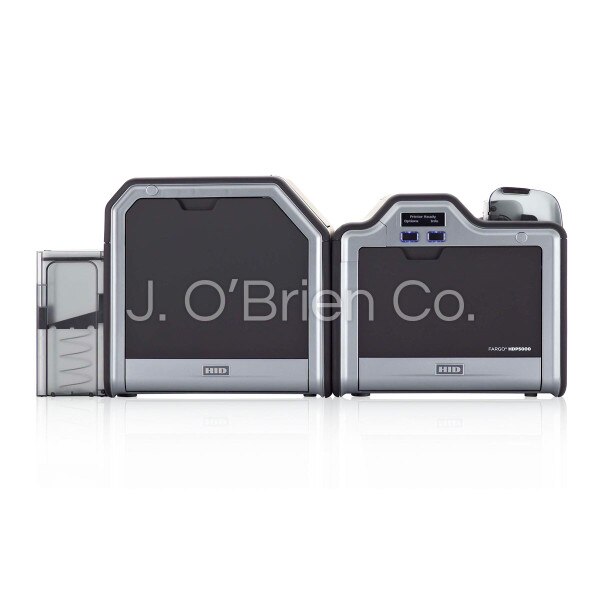

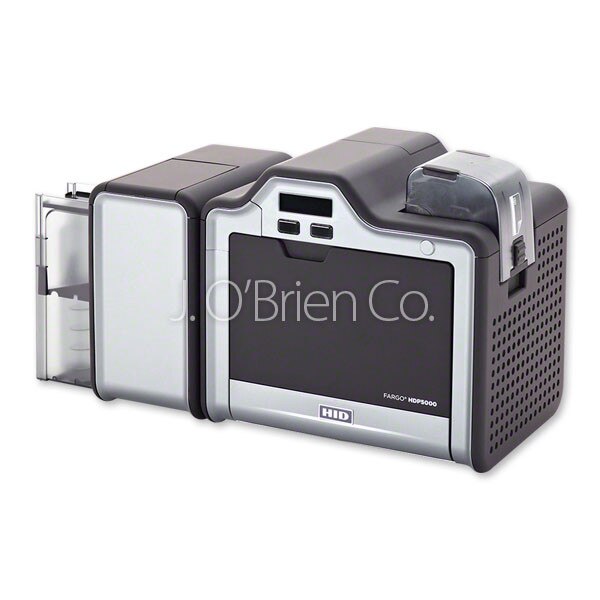

Fargo 89621 HDP5000 Single Sided/Single Sided Laminator Mag Stripe
ID cards printed on Fargo HDP5000 Card Printer/Encoders do more than protect your organization, they reflect the value you place on your brand. By printing a reverse image on the underside of HDP Film, then fusing the film to the card surface, the HDP5000 creates an image quality that looks more like a sharp glossy photo than an ordinary ID badge.
The 89621 HDP5000 is one of the most affordably priced reverse transfer printers on the market today. It’s also the most efficient, with improvements at every level. Simple operation requires only minimal training. Cards, ribbons and overlaminates literally load in a snap via the cartridge based system. Sharp image quality and new half-panel ribbons make High Definition Printing even more economical. Fast printing, combined with a dual card input hopper for multiple card types help you fly through the biggest production jobs.
Reverse Image Transfer (Re-Transfer) Card Printing Technology
This ID card printer utilizes “Re-Transfer” printing technology, which diffuses ink (in the form of a ribbon) to a dye receptive film known as a “transfer film”. Once all necessary colors have been applied to the transfer film, it is then fused to a blank PVC or Composite card material. This two-step printing process allows for a high definition “over the edge” printed card. Since the transfer process is not limited by a fixed printhead, but rather utilizes the flexible transfer film material, the re-transfer method is ideal for highly detailed imagery (up to 600dots/in), which can be applied to uneven surfaces such as ID cards with embedded electronic chips (smart cards). Along with advanced printing definition and overall card coverage, the lifespan of a re-transfer printhead is dramatically increased by the lack of contact with the card substrate.
This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).
Single Sided ID Card Printing
This ID card printer can print on only one side of a PVC or Composite card.
Single Sided Lamination
This ID card printer incudes a single sided lamination module, which allows you to apply a variety of different laminates (clear, generic holographic, custom holographic, etc.) to only one side of the card.
Magnetic Stripe Encoding
This ID card printer includes a magnetic stripe encoding module. With an ISO magnetic stripe encoding module, you will be able to encode both high and low coercivity magnetic stripes embedded within a plastic or composite card. By configuring your printer and encoder, data can be stored across the three available magnetic stripe tracks; these magnetic stripe tracks can be used in a variety of third party systems. Systems that utilize magnetic stripe technology include: door access, payment, loyalty, etc.
Single side printing with Reverse Transfer Technology and Magnetic Stripe Encoder
Printing Speeds (sec/card)
24 seconds (full-color (YMC) single-sided card)
29 seconds (full-color (YMCK) single-sided card)
Input Hopper Capacity
Output Hopper Capacity
Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the size of a standard credit card)
Card Thickness Accepted
USB & Ethernet with internal print server
Microsoft® Windows® XP, Windows Server 2003 & 2008, Vista (32- & 64-bit), Windows 7 (32- & 64-bit), Windows 8 (32- & 64-bit); Linux*
Mac OS X v10.5/v10.6
HID Fargo Warranty
3 years on printer and lifetime printhead coverage (unlimited passes with Fargo-certified supplies) with 1 year printer loaner coverage
Fargo HDP5000 Weight & Dimensions
46 lbs (20.8 kg), 25'' W x 12.75'' H x 9.25'' D (625mm x 324mm x 235mm)
HID Fargo Printer Includes
USB 2.0 cable
US/International power cords
CD with printer drivers & user guide
Quick start guide
Warranty registration card
Contact smart card encoding (field-upgradeable)
Dual-Sided Printing Module (field-upgradeable)
Door & cartridge security locks
