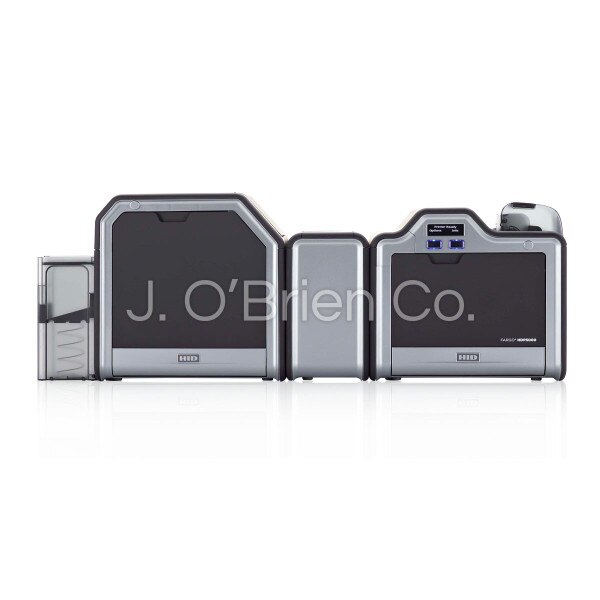

Fargo 89660 HDP5000 Dual Sided/Single Sided Laminator
ID cards printed on Fargo HDP5000 Card Printer/Encoders do more than protect your organization, they reflect the value you place on your brand. By printing a reverse image on the underside of HDP Film, then fusing the film to the card surface, the HDP5000 creates an image quality that looks more like a sharp glossy photo than an ordinary ID badge.
The 89660 HDP5000 is one of the most affordably priced reverse transfer printers on the market today. It’s also the most efficient, with improvements at every level. Simple operation requires only minimal training. Cards, ribbons and overlaminates literally load in a snap via the cartridge based system. Sharp image quality and new half-panel ribbons make High Definition Printing even more economical. Fast printing, combined with a dual card input hopper for multiple card types help you fly through the biggest production jobs.
Reverse Image Transfer (Re-Transfer) Card Printing Technology
This ID card printer utilizes “Re-Transfer” printing technology, which diffuses ink (in the form of a ribbon) to a dye receptive film known as a “transfer film”. Once all necessary colors have been applied to the transfer film, it is then fused to a blank PVC or Composite card material. This two-step printing process allows for a high definition “over the edge” printed card. Since the transfer process is not limited by a fixed printhead, but rather utilizes the flexible transfer film material, the re-transfer method is ideal for highly detailed imagery (up to 600dots/in), which can be applied to uneven surfaces such as ID cards with embedded electronic chips (smart cards). Along with advanced printing definition and overall card coverage, the lifespan of a re-transfer printhead is dramatically increased by the lack of contact with the card substrate.
This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).
Dual Sided ID Card Printing
With a dual sided printing module, This ID card printer can automatically print on both sides of a PVC or Composite card.
Single Sided Lamination
This ID card printer incudes a single sided lamination module, which allows you to apply a variety of different laminates (clear, generic holographic, custom holographic, etc.) to only one side of the card.
Dual side printing
Printing Speeds (sec/card)
24 seconds per card (YMC with transfer)
29 seconds per card (YMCK with transfer)
40 seconds per card (YMCKK with transfer)
35 seconds per card (YMCK with transfer and dual-sided, simultaneous lamination)
48 seconds per card (YMCKK with transfer and dual-sided, simultaneous lamination)
Input Hopper Capacity
Output Hopper Capacity
Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the size of a standard credit card)
Card Thickness Accepted
USB 2.0 & Ethernet with internal print server
Microsoft® Windows® 2000, XP, Windows Server 2003, Vista (32- & 64-bit), Windows 7 (32- & 64-bit), Linux Ubuntu 7.1, Fedora Core 7 & 8, Red Hat 5, Open Suse 10.3, Mac OS X v10.4 & v10.5
HID Fargo Warranty
2 years on printer and printhead (unlimited pass with Ultracard™)
Fargo HDP5000 Weight & Dimensions
51 lbs (23.1 kg), 30'' W x 12.75'' H x 9.25'' D (762mm x 324mm x 235mm)
HID Fargo Printer Includes
US/International power cords
CD with printer drivers & user guide
Card Lamination Module – single-sided or dual-sided (simultaneous)
Magnetic stripe encoding
200-card input hopper
Smart card encoding (contact/contactless)
Door and cartridge locks
Secure Proprietary Consumables System

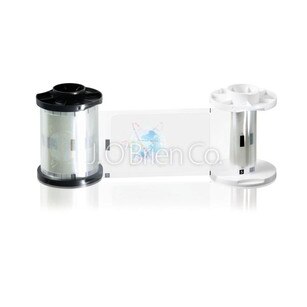

Custom Secure Holographic HDP Film and Overlaminate
