The Zebra GX420T Thermal Transfer Printer delivers the best quality with the fastest speed and the greatest features. It offers a wide range of connectivity options, simple upgrades, and integration with its programming languages and reduced total cost of ownership as Energy Star qualified printer.
Zebra GX420T Badge Label Printer Features

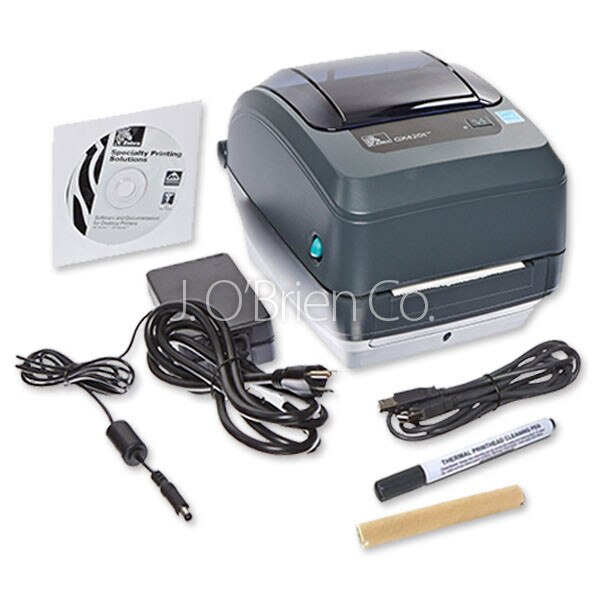

GX42-102811-000 Zebra GX420T standard features include thremal transfer print mode, 4" print width, 203 DPI, tear bar, RS-232 auto-sensing serial, Centronics parrallel, USB 1.1, 4MB standard flash, 8MB standard SDRAM, EPL2, ZPL II, USB cable, North America Power cord. Printers are shipped with windows drivers & multi-language user documentation CD Rom.
Thermal Transfer Print Methods
Bluetooth Connectivity (Replaces Parallel)

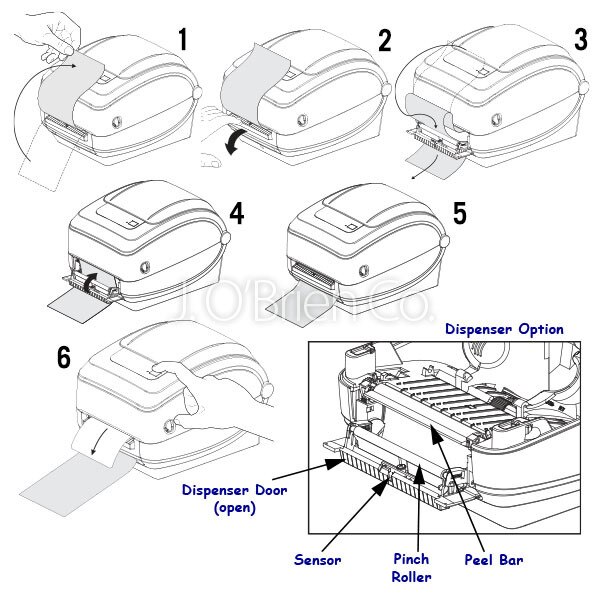

Dispenser (Peeler) - This will help you print labels one at a time, which could be helpful for shipping labels and other similar uses.
Tool-less Printhead and Platen Replacement
ZPL Programming Language
EPL Programmin Language
Dual-wall Frame Construction
OpenAccess for Easy Media Loading
Quick and Easy Ribbon Loading
Simplified Calibration of Media
Energy Star Qualified
Thermal Transfer Printing Method
The Zebra GX420T Thermal transfer printing uses a heated ribbon to produce durable, long-lasting images on a wide variety of materials. Badge Label Thermal transfer printers can accept a wider variety of media than direct thermal models, including paper, polyester, and polypropylene materials. Badge Label Thermal transfer printers can create extremely durable wristbands, asset tags, and certification labels, in addition to common labels, tags, and tickets. The specific label material and ribbon must be carefully matched to ensure print performance and durability.
By selecting the right media-ribbon combination, as well as specialty adhesives, users can create archival-quality labels to withstand temperature extremes, ultraviolet exposure, chemicals, sterilization, and more. Typical thermal transfer applications include: product identification; circuit board tracking; permanent identification; sample and file tracking; asset tagging; inventory identification; certification labels such as UL/CSA; laboratory specimens; cold storage and freezers; and outdoor applications.
See the GX420T Dispenser Mode in Action
The Zebra GX420T Badge Label Printer Ideal for These Applications
Retail - Coupons, receipts, price tags, retail inventory labeling and even prescription labels.
Healthcare - Patients, visitors, workers, vendors, staff, volunteer and even contractors badges.
Travel - Valid pass and drivers identification.
The GX42-102811-000 Zebra GX420T Badge Label Printer is available with thermal transfer, combines and intuitive design and optional LCD user interface with versatile connectivity. It supports the widest range of applications and can be integrated into almost any environment so that you can improve efficiency and profitability, save time and reduce operator training.
The Zebra GX420T Badge Label Printer Environment Friendly
To meet changing expectations and growing demands for devices that are mobile, intelligent and connected to the Cloud, Zebra created a new software platform to support its devices: Zebra’s Link-OS environment. This innovative solution makes Zebra printers even easier to integrate, manage and maintain than ever before—from any location.
The Link-OS environment is highly flexible, allowing new and creative ways for users to develop applications that interact with Zebra printers from mobile devices located anywhere in the world. Users can perform updates, gather data, and make smarter business choices from new analytic-driven insights.
Zebra GX420T Global Badge Label Printing Solution
Supports Microsoft Windows keyboard encoding (and ANSI), Unicode UTF-8 and UTF 16 (Unicode Transformation Formats), XML, ASCII (7 and 8 bit used by legacy programs and systems), basic single and double byte font encoding, JIS and Shift-JIS (Japanese International Standards), Hexadecimal encoding, and custom character mapping (DAT table creation, font linking, and character remapping).
A complete suite of free software applications and drivers to configure printer settings, design and print labels and receipts, get printer status, import graphics and fonts, send programming commands, update firmware, and download files. Clone printer settings and send graphics, files, fonts, and firmware (updates) to one or more Zebra® Ethernet and locally connected printers with ZebraNet™ Bridge.
NOTE: Bluetooth replace parallel port. All configuration options are factory install only.
Zebra GX420T Badge Label Printer Resolution 203 dpi/8 dots per mm 300 dpi/12 dots per mm
Zebra GX420T Memory Standard 4 MB Flash; 8 MB SDRAM Optional 64 MB (68 MB total) Flash with real-time clock
Zebra GX420T Badge Label Printer Maximum Print Size Printer Maximum Print Width: 4.09" (104 mm) Printer Maximum Print Length: 39.0" (990 mm)
Zebra GX420T Badge Label Printer Speed 6" (152 mm) per second (203 dpi) 4" (102 mm) per second (300 dpi)
Zebra GX420T Printer Media Sensors Standard Sensor: Fixed transmissive and reflective sensors Option Sensor: Multi-position transmissive and full-width reflective sensor
Zebra GX420T Communication and Interface Capabilities RS-232 auto-sensing serial interface, DB-9 USB V1.1, bi-directional Centronics Parallel Ethernet - 10/100 internal (optional) offered in combination with USB and Serial interface (replaces Parallel port) Bluetooth - with LCD display offered in combination with USB and Serial interfaces (replaces Parallel port)
