  • GoDEX GX4200i Thermal Transfer Printer, 203 dpi

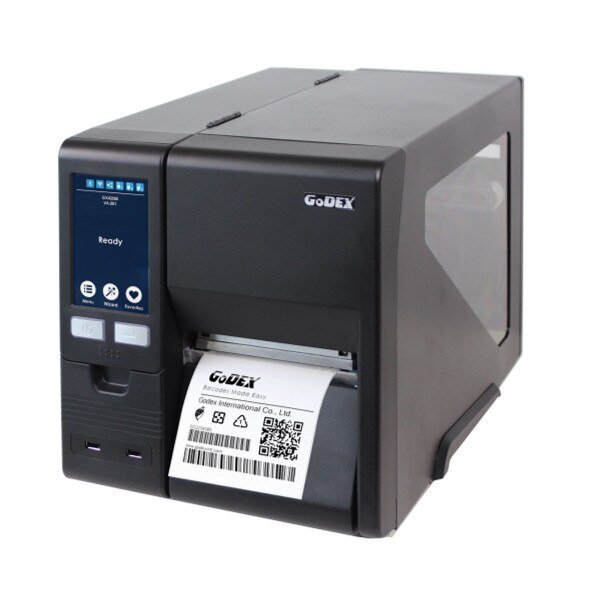

GoDEX GX4200i Thermal Transfer Printer, 203 dpi

(0)No Reviews yet
SKU: 011-X2i001-000
$2,395.00 each


GODEX Industrial Grade

GX4000i series


Ultra-high speed Industrial Thermal Printer with an intuitive 5” video touch screen.

The GODEX GX4000i, in its 600 dpi version, produces razor sharp results while maintaining the fastest 600 dpi throughput at 8 IPS. The GX4000i comes fully equipped to support your most demanding applications. With a robust steel design, the GX4000i will thrive in all environments.

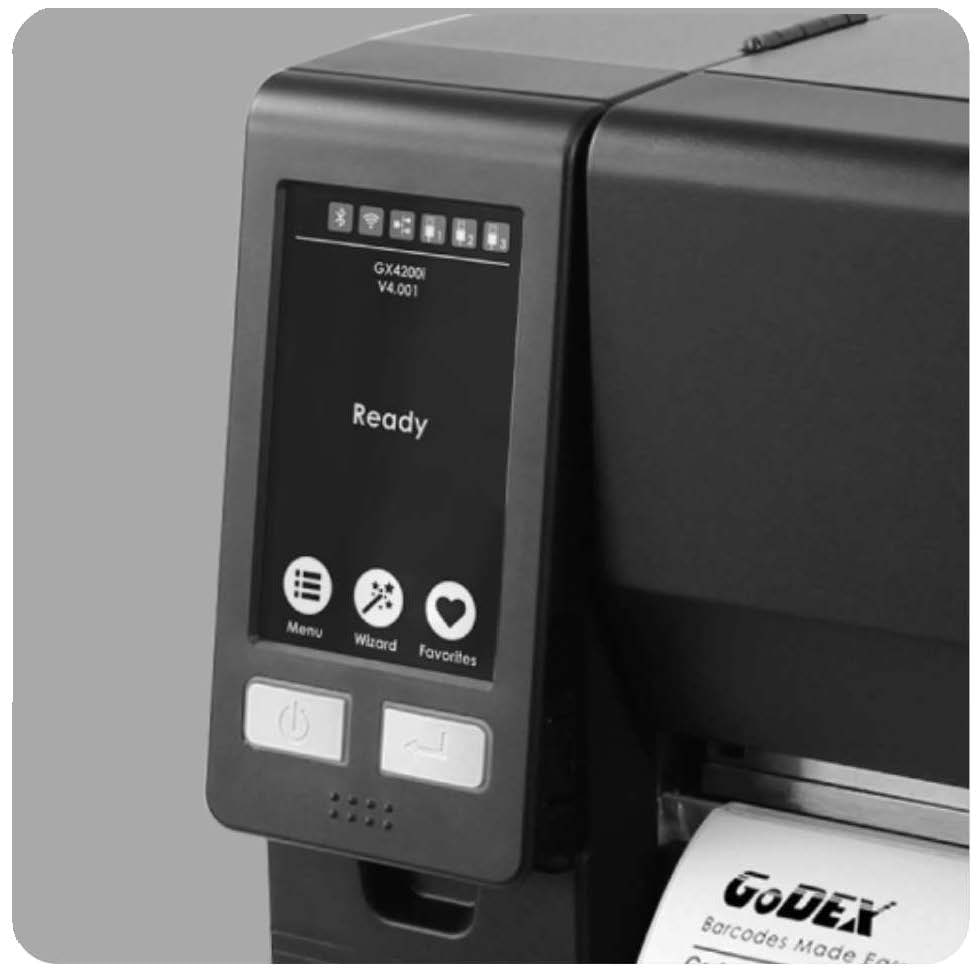

  • Equipped with a 5” LCD touch screen and 16GB of storage the GX4000i offers intuitive controls along with a built in video assistance guide printer operation has never been easier.
  • The GX4000i series offers a variety of resolutions to meet all high-volume and demanding applications. Top speeds include 16 inches per second at 203 dpi, 12 inches per second at 300 dpi and 8 inches per second at 600 dpi.

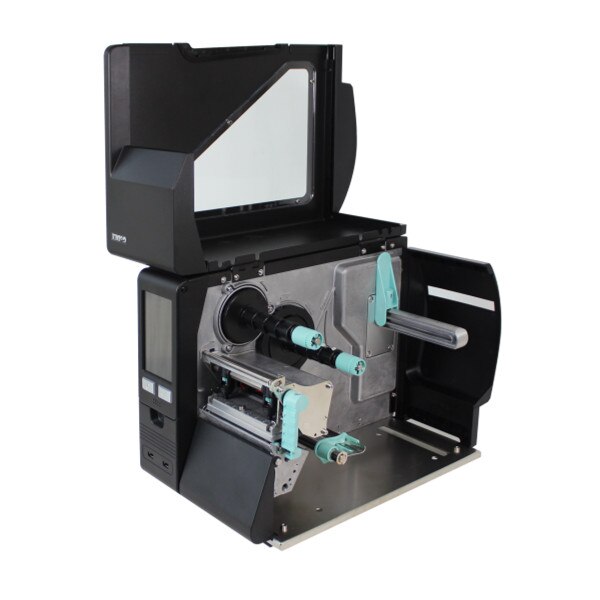

  • With a robust aluminum cast frame, the GX4000i can withstand the most demanding environments while maintaining the intricacies of precision printing.
  • Equipped with 256MB of flash memory, the GX4000i has more than enough storage for 1000’s of labels, fonts and/or images, making standalone functionality far more flexible.
  • Equipped with 256MB of SDRAM, the GX4000i will print large batch files seamlessly while maintaining superior throughput.
Print Method Thermal Transfer / Direct Thermal
Resolution203 dpi (8 dot/mm)300dpi (12 dot/mm)600dpi (24 dot/mm)
Print Speed16 ips (406.4 mm/s)12 ips (304.8 mm/s)Up to 8 ips (203.2 mm/s)
Print Width4.09” (104mm)4.16” (105.7mm)4.16” (105.6mm)
Print Length0.16” (4 mm)** to 180” (4572 mm)0.16” (4 mm)** to 100” (2540 mm)0.16” (4 mm)** to 30” (762 mm)
Processor32 Bit RISC CPU
Memory Printer : 256MB Flash (128MB for user storage); 256MB SDRAM
16GB for display
Sensor TypeAdjustable reflective sensor and transmissive sensor, left aligned
MediaTypes: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width (Tear): 1” (25.4 mm) Min.; 4.64” (118 mm) Max.
Width (Cutter): 4.61” (117 mm) Max.
Width (Dispenser / Rewind): 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min.; 0.01” (0.25 mm) Max.
Label roll diameter: 8” (203.2 mm) Max.
Core diameter: 1.5”-3" (38.1mm -76.2mm)
RibbonTypes: Wax, wax/resin, resin
Length: 1476’ (450 m) Max.
Width: 1.18” (30 mm) Min.; 4.33” (110 mm) Max.
Ribbon roll diameter: 3” (76.2 mm)
Core diameter: 1” (25.4 mm)
Printer LanguageEZPL, GEPL, GZPL, GDPL auto switch
SoftwareLabel design software: GoLabel (for EZPL only)
Driver: Windows 8 & 8.1, Windows 10, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, MAC, Linux
SDK: Win CE, .NET, Windows Vista, Windows 7, Windows 8 & 8.1, Windows 10, Android, Mac, iOS
Resident FontsBitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
Download FontsBitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
Barcodes1-D Bar codes : China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart and Random Weight
2-D Bar codes : Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite
Code PagesCODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)
GraphicsResident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
InterfacesSerial port: RS-232 (DB-9)
USB Device port (B-Type)
3 USB Host ports (A-Type). 2 ports at the front panel, 1 port at the rear panel
IEEE 802.3 10/100Base-Tx Ethernet print server (RJ-45)
Control PanelBacklight 5” touch screen LCD supports on-board videos
1 Power on/off button with blue color LED backlight
1 Control key: FEED/PAUSE/CANCEL with dual color (green/red) LED backlight
1 Calibration button at the rear panel
PowerAuto Switching 100-240VAC, 50-60Hz
EnvironmentOperation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
HumidityOperation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
Agency ApprovalsCE(EMC), FCC Class B, CB, cUL, BSMI, BIS, KC, CCC, EAC, UKCA
DimensionLength : 465 mm
Width : 263 mm
Height : 310 mm
Weight30 lbs (13.6 Kg), excluding consumables
OptionsCutter module (User install) ‒ Rotary cutter, Guillotine cutter, Perforation cutter, High speed cutter, Paper card cutter
Label dispenser + Internal rewinder module (Dealer install)
BT 2.1
BT 4.0
WiFi print server module (IEEE 802.11b/g/n)
Applicator Interface (DSUB female 15-pin)
RFID (UHF) R/W module (project option)
External label unwinder
External label rewinder

*Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of theirrespective owners.
**Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability.
*** The safety certification marks may be different depending on sales regions.
