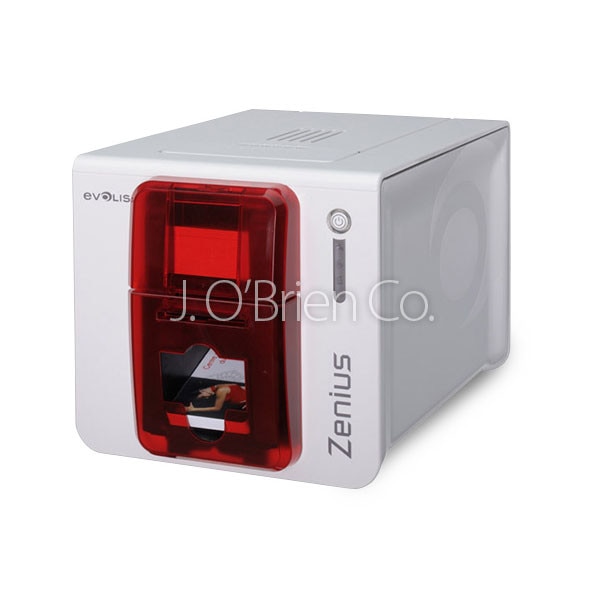

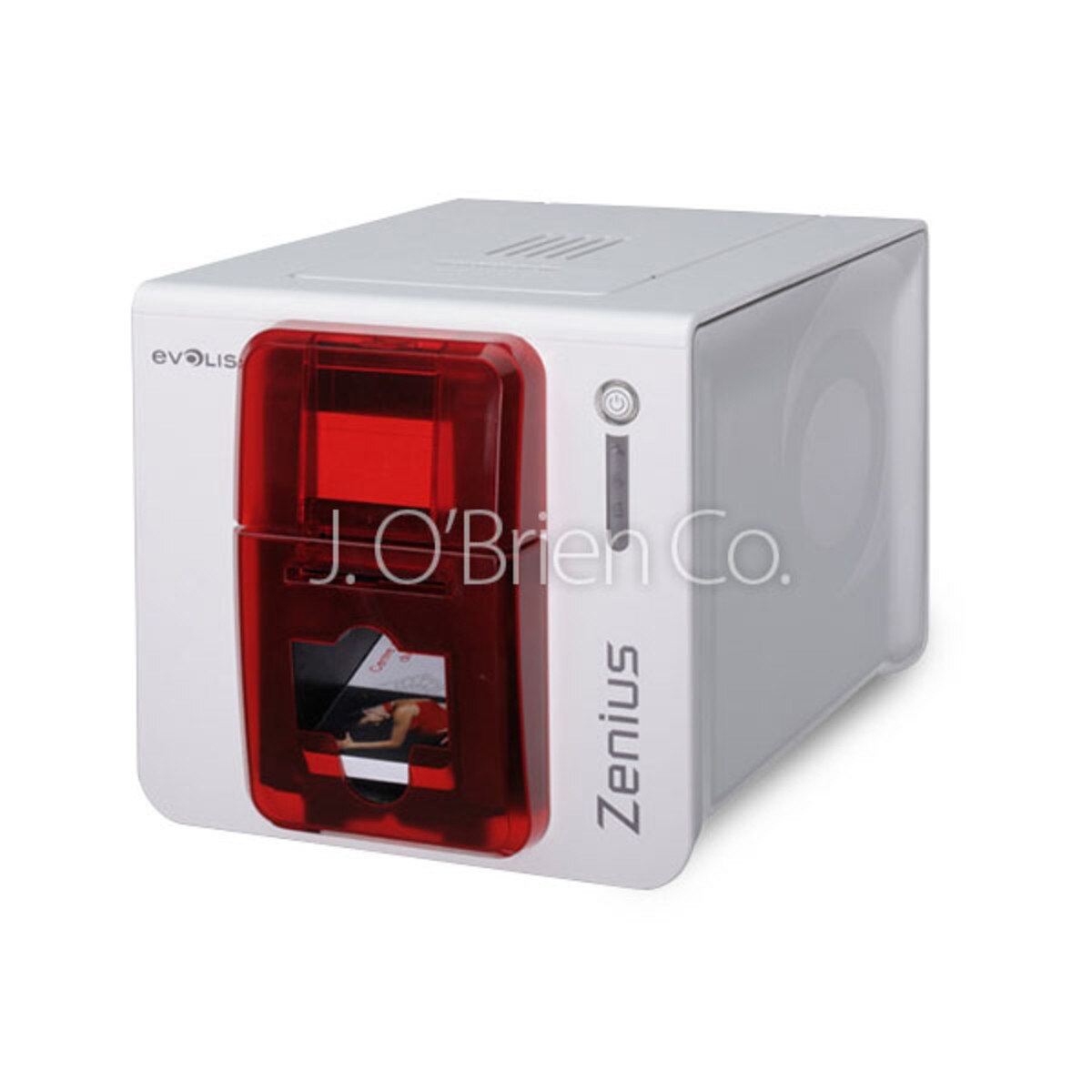

Evolis ZN1U0000RS Zenius Single Sided Fire Red ID Card Printer

(0)No Reviews yet
$1,250.00 each


This unit is USB only. If you require USB and Ethernet, click HERE.

Direct to Card Printing Technology

This ID card printer utilizes “direct-to-card” printing technology, which diffuses ink (in the form of a ribbon) directly to a blank PVC or Composite card material. The technology is literally named to describe the one step process in which the print head heats up then comes in direct contact with the ribbon and blank card substrate Direct to card printers and their simple printing process improve efficiency, and are ideal for high volume printing requirements. Card printing that utilizes direct contact with a fixed printhead results in “edge to edge” printing, which leaves a small unprinted border around the perimeter of the card.

300 dpi

This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).

Single Sided ID Card Printing

This ID card printer can print on only one side of a PVC or Composite card.


Evolis Zenius Printing Capability
Single side printing

Printing Speeds (sec/card)
Color (YMCKO): 120 - 150 cards/hour
Monochrome: 400 - 500 cards/hour

Input Hopper Capacity

Output Hopper Capacity

Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the size of a standard credit card)

Card Thickness Accepted
10-30 mil

USB & Ethernet

Software Drivers
Microsoft® Windows® XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit), Windows 8 (32- & 64-bit), Mac OS X, Linux OS (upon request)

Evolis Warranty
2 years (printer and print head)

Evolis Zenius Weight & Dimensions
7.3 lbs (3.3 kg), 7.68'' x 8.07'' x 12.4'' (195mm x 205mm x 315mm)

Printer Options
Magnetic stripe encoder ISO7811 HiCo/LoCo, JIS2
Smart contain station ISO 7816-2
Contact smart card encoder - PC/SC, EMV 2000-1
Contactless encoder ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
