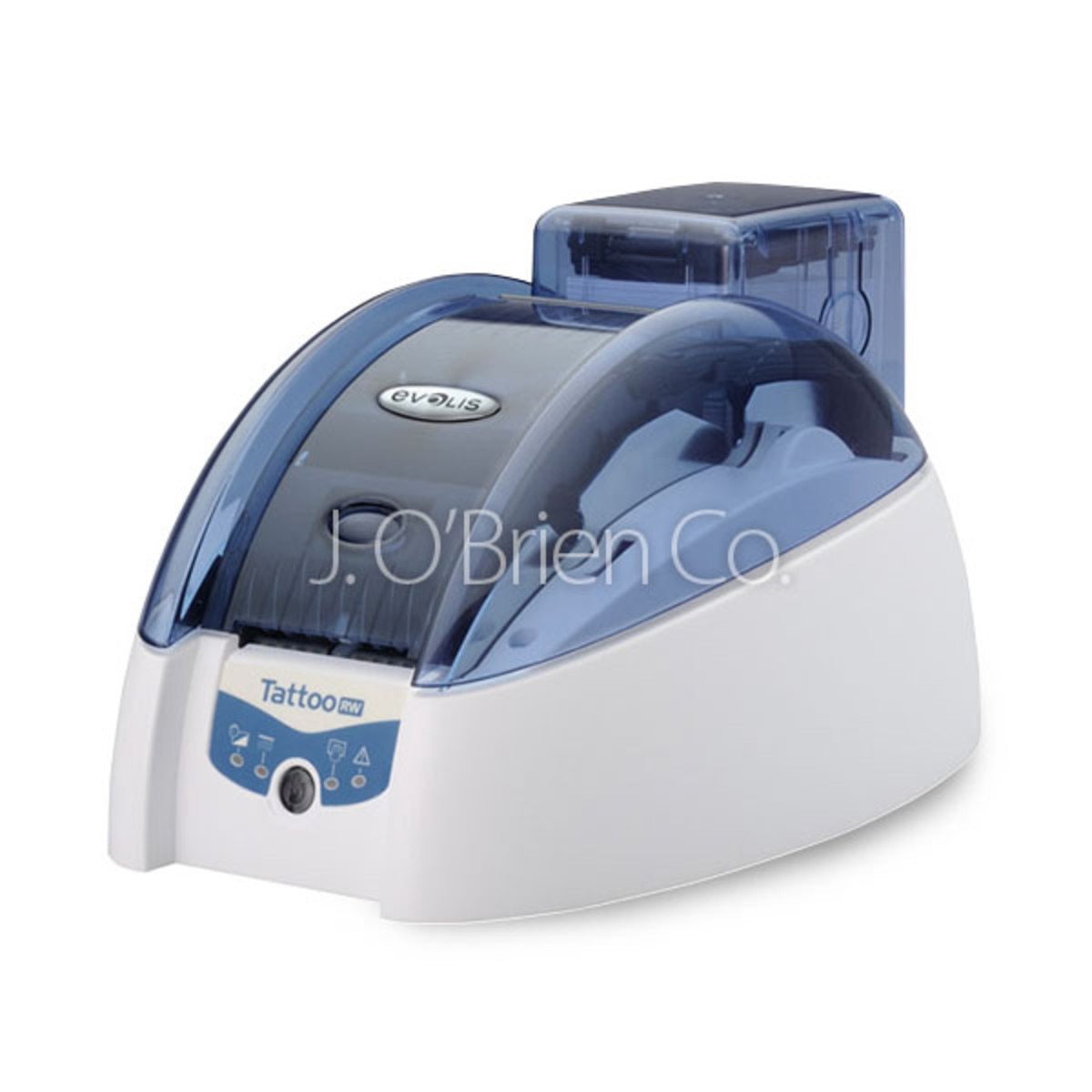

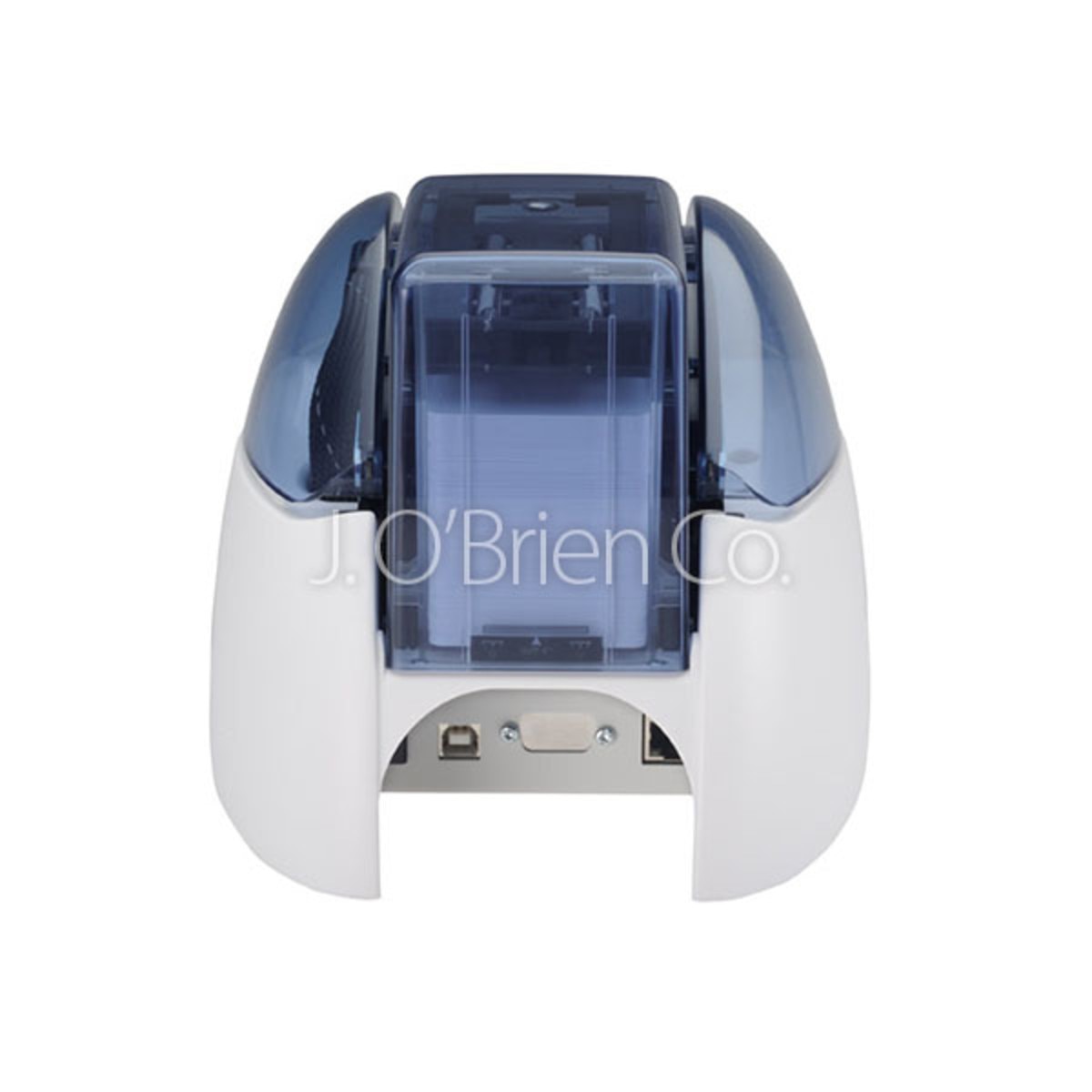

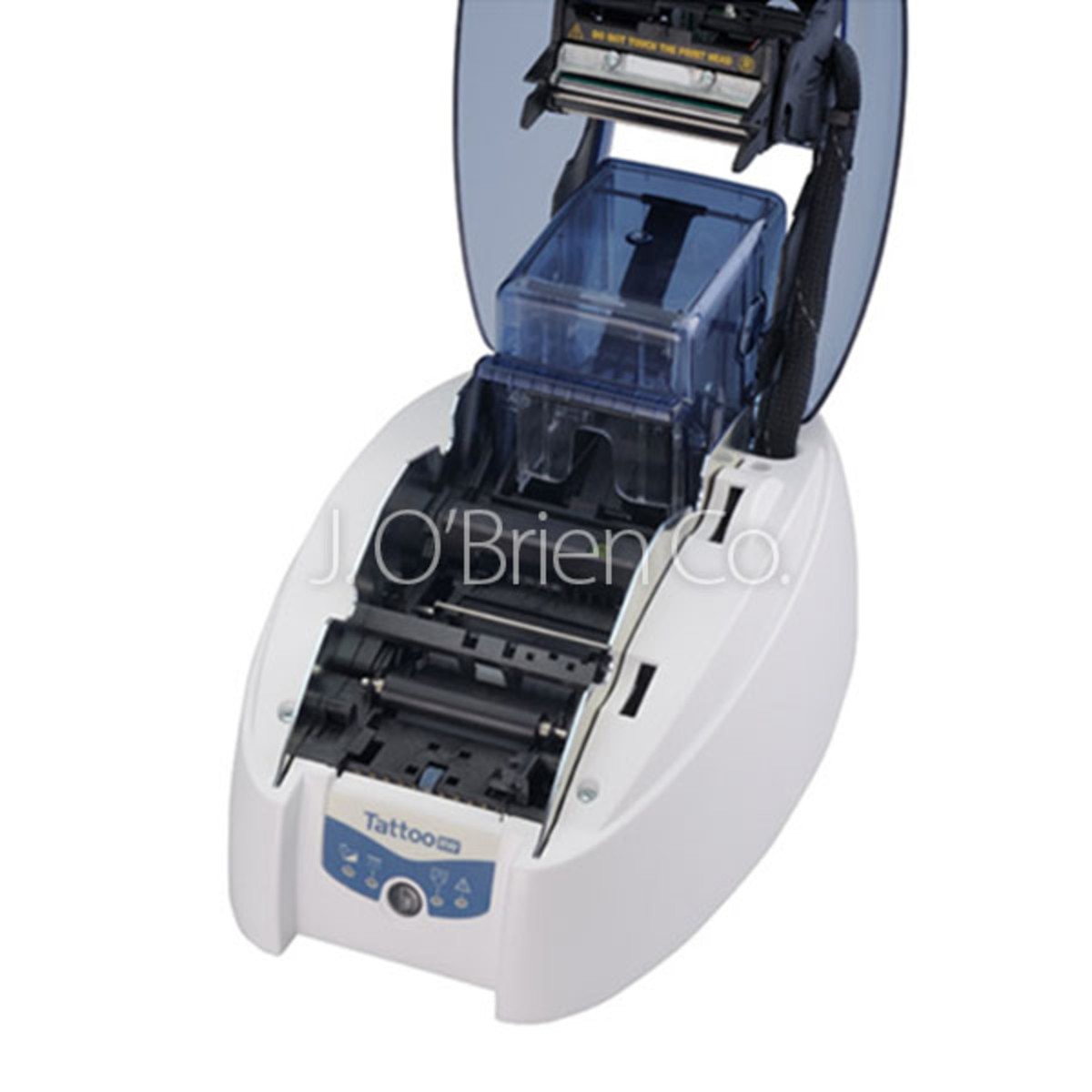

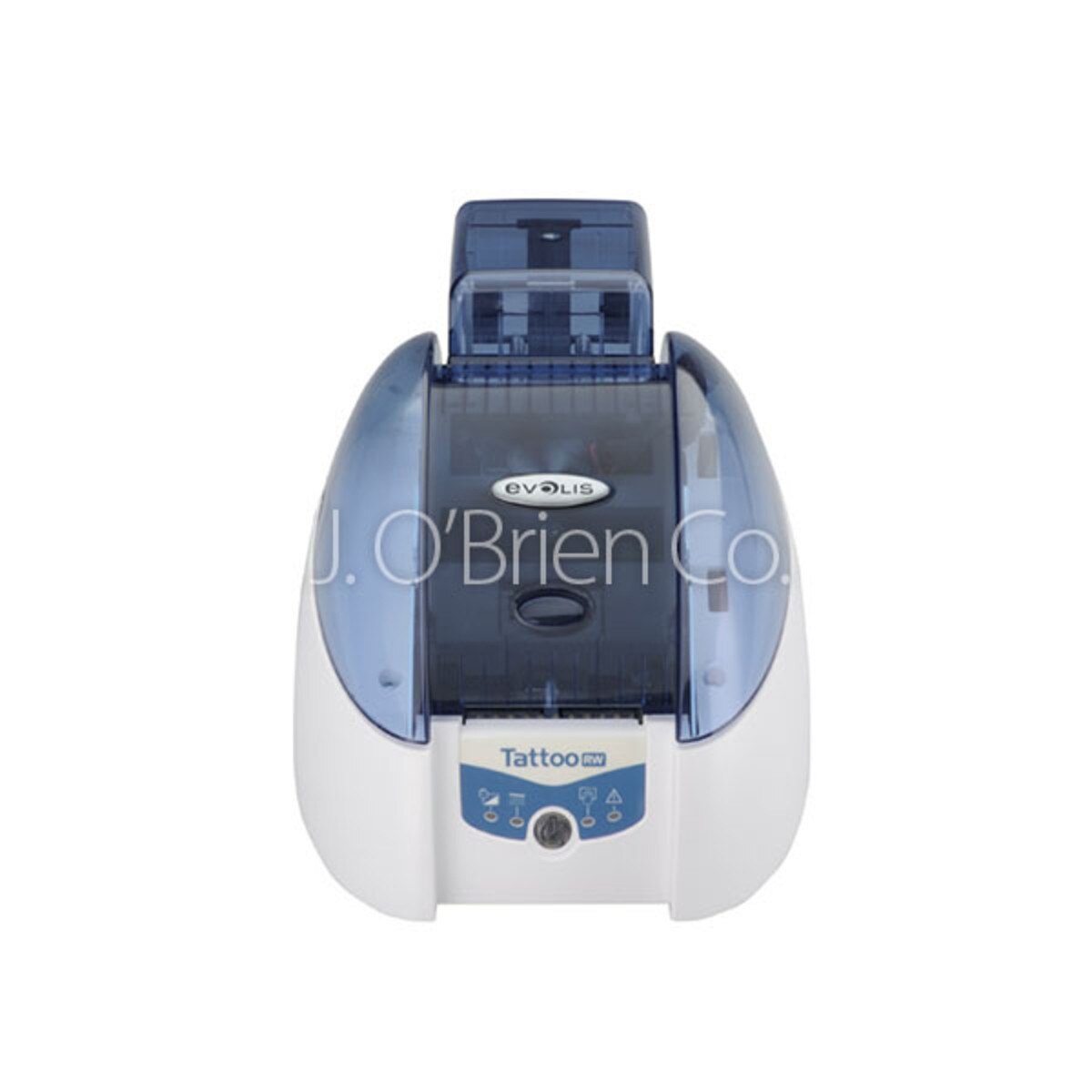

Evolis TTR201BBH TattooRW Single Sided Ethernet ID Card Printer
Details
Direct to Card Printing Technology
This ID card printer utilizes “direct-to-card” printing technology, which diffuses ink (in the form of a ribbon) directly to a blank PVC or Composite card material. The technology is literally named to describe the one step process in which the print head heats up then comes in direct contact with the ribbon and blank card substrate Direct to card printers and their simple printing process improve efficiency, and are ideal for high volume printing requirements. Card printing that utilizes direct contact with a fixed printhead results in “edge to edge” printing, which leaves a small unprinted border around the perimeter of the card.
300 dpi
This ID card printer prints with a resolution of 300 dpi (dots per inch) or 11.8 dpm (dots per millimeter).
Single Sided ID Card Printing
This ID card printer can print on only one side of a PVC or Composite card.
Specifications
Evolis Tattoo 2 RW Printing Capability
Single side printing
Printing Speeds (sec/card)
8 seconds (manual)
12 seconds (card feeder)
3-Track ISO magnetic encoding: 4 seconds per card
Input Hopper Capacity (Detachable)
Up to 100 blank cards
Output Hopper Capacity (Detachable)
Up to 15 cards
Card Sizes Accepted
CR80 - standard PVC or PET (CR80 is the same size as a standard credit card)
Card Thickness Accepted
20-40 mil
Interface
USB & Ethernet
Software Drivers
Microsoft® Windows® XP, Vista (32- & 64-bit), Windows 7 (32- & 64-bit)
Evolis Card Printer Warranty
2 years (printer and print head), limited to 15,000 inserted cards. Subject to observance of specific conditions and use of Evolis genuine consumables.
Evolis Tattoo2 RW Weight & Dimensions
5.3 lbs (2.4 kg), 6.54'' x 14.49'' x 7.36'' (166mm x 368mm x 187mm)
Printer Options
Encoding:
HiCo/LoCo magnetic stripe encoder ISO7811 or JIS2
Contactless encoder ISO 14443A & B, Mifare, DesFire (USB connection)
