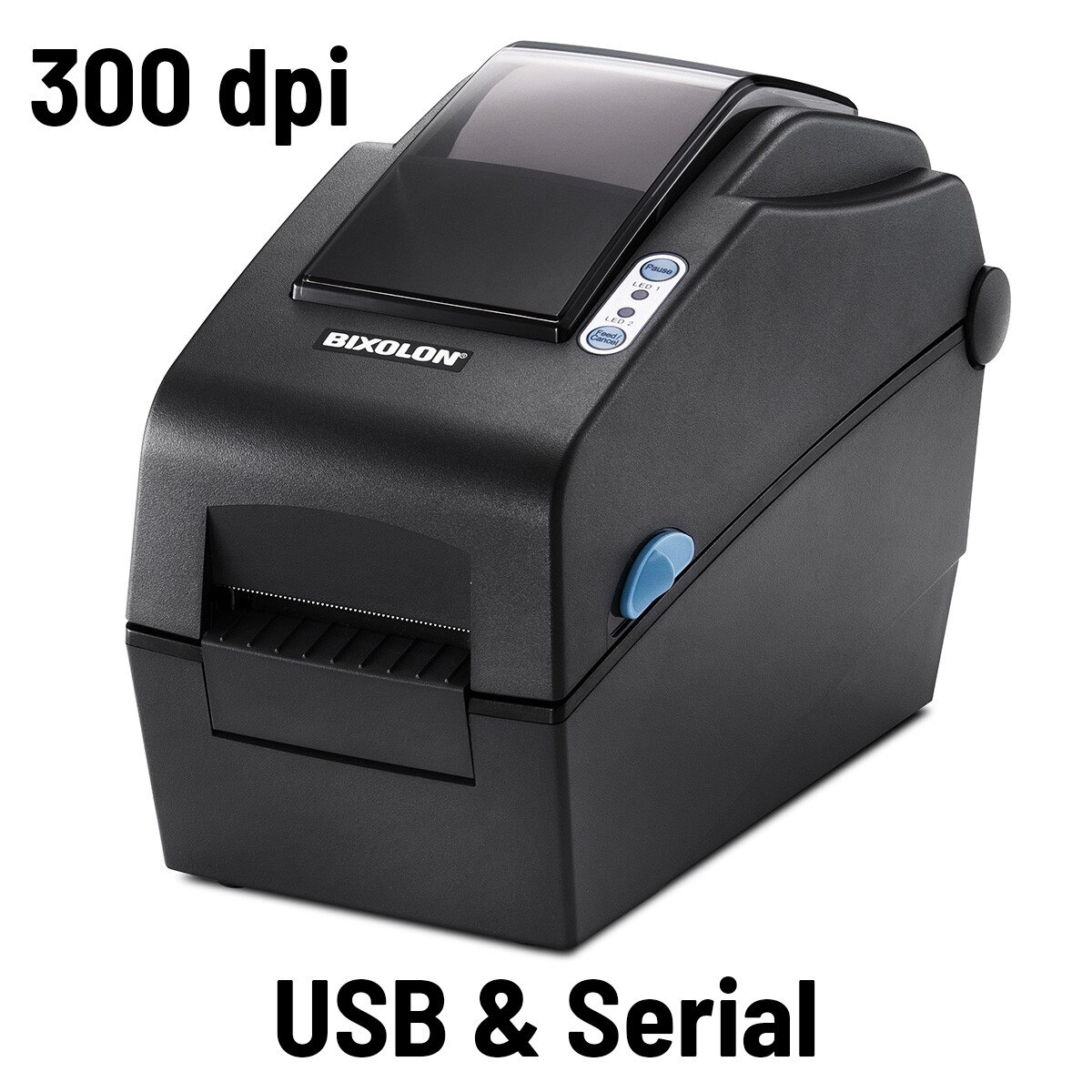

BIXOLON SLP-DX223G 2" Direct Thermal Label Printer

(0)No Reviews yet
SKU: SLP-DX223G
$345.00

Details

Document
Slim and Premium
Advanced Performance
- Printing speed up to 6 ips (152 mm/s)
- Fast data processing speed of various types of label
- The SLP-DX220 is fully compatible with market-leading programming language; SLCS, BPL-Z™, BPL-E™
- Automatic paper detection such as gap media, black mark media and short length media paper
Function-keys
User-Friendly Design
- Compatible with smart mobile devices
- Smart Bluetooth Auto Switch: Switching from iOS settings to standard Bluetooth mode
- Easy paper loading with adjustable paper guide
- Pause and cancel function-keys

Coffee

Retail

Healthcare

Post & Parcel

Specifications

Document
Printer Specifications
Print Method
Direct Thermal
Print Speed
SLP-DX220: Up to 6 ips (152 mm/sec)
SLP-DX223: Up to 4 ips (100 mm/sec)
Print Resolution
SLP-DX220: 203 dpi
SLP-DX223: 300 dpi
Print Width
SLP-DX220: Up to 54 mm
SLP-DX223: Up to 56.9 mm
Print Length
Up to 2,000 mm
Sensor
Transmissive, Reflective (Adjustable), Head open
Media Characteristics
Media Type
Gap, Black Mark, Notch, Continuous, Fan-Fold
Media Width
STD: 15 ~ 60 mm
Peeler:15 ~ 58 mm
Media Roll Diameter
Up to 130 mm
Media Thickness
0.06 ~ 0.20 mm
Supply Method
Easy Paper Loading
Inner Core
12.5 ~ 38.1mm
Physical Characteristics
Dimensions (WxDxH)
120 x 230 x 170 mm
(4.72 x 9.05 x 6.69 inch)
Weight
1.36 kg (2.99 lbs.)
Electrical
EnergyStar Certified,
External Power Adaptor 100-240V AC, 50/60Hz
Performance Characteristics
Memory
64 MB SDRAM, 128 MB Flash
Interface
Standard: USB + Serial
Optional:
① USB + Ethernet + WLAN
② USB + WLAN + Bluetooth
WLAN: 802.11a/b/g/n/ac Dongle type
- requires a USB Host port (Optional)
Real Time Clock
Supported (Optional)
Environment Characteristics
Temperature
Operating: 0 ~ 40℃ (32 ~ 104℉)
Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity
Operating: 10 ~ 80% RH
Storage: 10 ~ 90 % RH
Software
Emulation
SLCS™, BPL-Z™, BPL-E™
Driver / Utility
Windows Driver (Europlus / Seagull)
Linux/Mac CUPS Driver
Virtual COM USB / Ethernet Driver
Utility Program, OPOS / JPOS Driver,
Bartender Ultralite for BIXOLON,
Label Artist-II™, SAP® Device Driver,
Network Auto Installer
SDK / Plugin
Android / iOS / Windows SDK, Linux SDK,
Chrome SDK, Xamarin SDK, Web Print SDK
Application
Label Artist™ Mobile (Android, iOS)
mPrint App (iOS)
MDM
BIXOLON Profile Manager
- XPM™, XCM™ (Windows, Android)
Fonts / Graphics / Symbologies
Fonts
Bitmap Fonts (10 SLCS™, 16 BPL-Z™,
5 BPL-E™), Scalable Fonts (1 SLCS™, 1 BPL-Z™),
23 Code page, Unicode supported (UTF-8,
UTF-16LE, UTF-16BE)
Graphics
Supporting user-defined fonts, graphics, formats and logos
Barcode Symbologies
1D:
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC / EAN extensions, UPC-A, UPC-E, IMB
2D:
Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Options
Peeler, Auto Cutter,
WLAN Dongle (Consensus required),
Serial cable, USB cable
