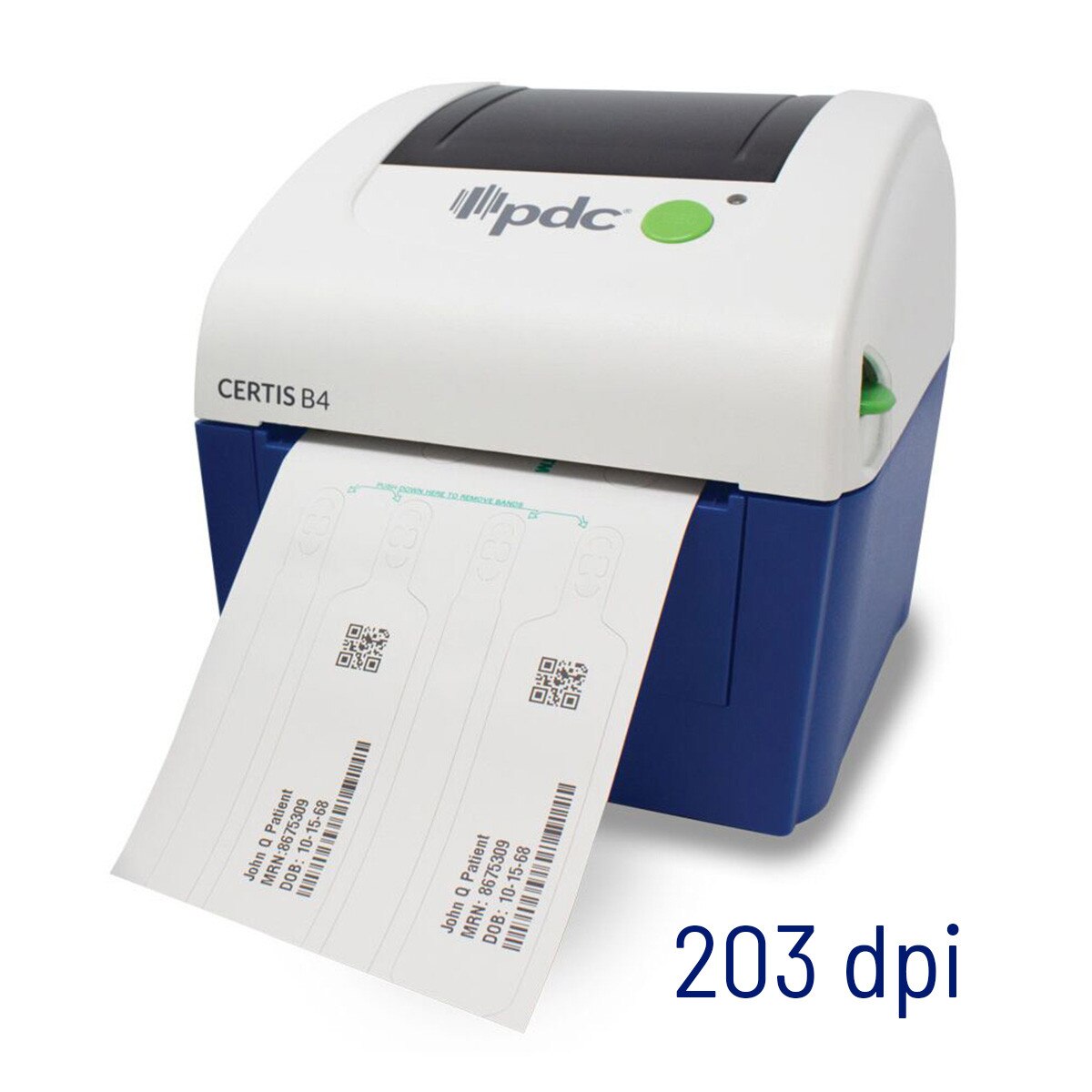

Certis PD-B4-20EA1000 B4 Desktop Thermal Printer, 203 dpi
For Large Quantity Orders Call (877) 379-8844 or
Details
Versatile Print Applications | Fast Printing in a Compact Form
Enhance patient safety and clinical workflow. PDC Certis Desktop Thermal Printers offer easy integration, simple implementation, and are best equipped for your full identification printing needs. Reliable and robust printer backed by an industry-leading 3-year warranty
- Supports a variety of healthcare print applications including Mother/Baby wristbands, chart labels, medication labels, and more
- Compact, easy media loading design
- Compatible with leading EMRs including Epic, Cerner, Meditech, and others
Specifications
| SPECIFICATIONS | CERTIS™ B4-20 | CERTIS™ B4-30 |
|---|---|---|
| Part Number | PD-B4-20EA1000 (Standard) or PD-B4-20WA1000 (Wireless) | PD-B4-30EA1000 (Standard) or PD-B4-30WA1000 (Wireless) |
| Resolution | 203 dpi | 300 dpi |
| Printing Method | Direct Thermal | |
| Max Print Speed | 6 ips | 4 ips |
| Max Print Width | 4.25" | 4.16" |
| Max Media Width | 0.7" ~ 4.5" | |
| Media Roll Capacity | 5.0" OD | |
| Media Core Diameter | 1.0" or 1.5" | |
| Media Type | Wristbands & Labels | |
| Dimensions | 6.8"Wx 6.5"Hx 7.7"D | |
| Connectivity | Internal Ethernet (10/100 Mbps) and USB 2.0 or Wireless 802.11 a/b/g/n, Internal Ethernet and USB 2.0 | |
| Power | External universal switching power supply Input:AC 100-240V, 50-60Hz | |
| Operation Switch, Button, LED | One power switch, one feed button, one LED (3 colors) | |
| Sensors | Gap transmissive sensor Black mark reflective sensor (adjustable) Head open sensor | |
| Printer Language | ZPL, ZPL II,TSPL-EZTM | |
| Environment Condition | Operation: 41~104°F (5-40°C), 25-85% non-condensing Storage: -40~140°F (-40~60°C), 10-90% non-condensing | |
| Safety Regulation | FCC, UL, CE, NOM | |
| Bar Code | 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN, UPC 2D bar code: PDC-417, Maxicode, DataMatrix, QR code, Aztec, and more | |
| Warranty | 3 years, with 1 year Hot Swap included | |
| Included in Box | External Power Supply, Power Cord, USB Cable, USB Drive with: Labeling Software, Quick Start Guide & User Manual installed | |
