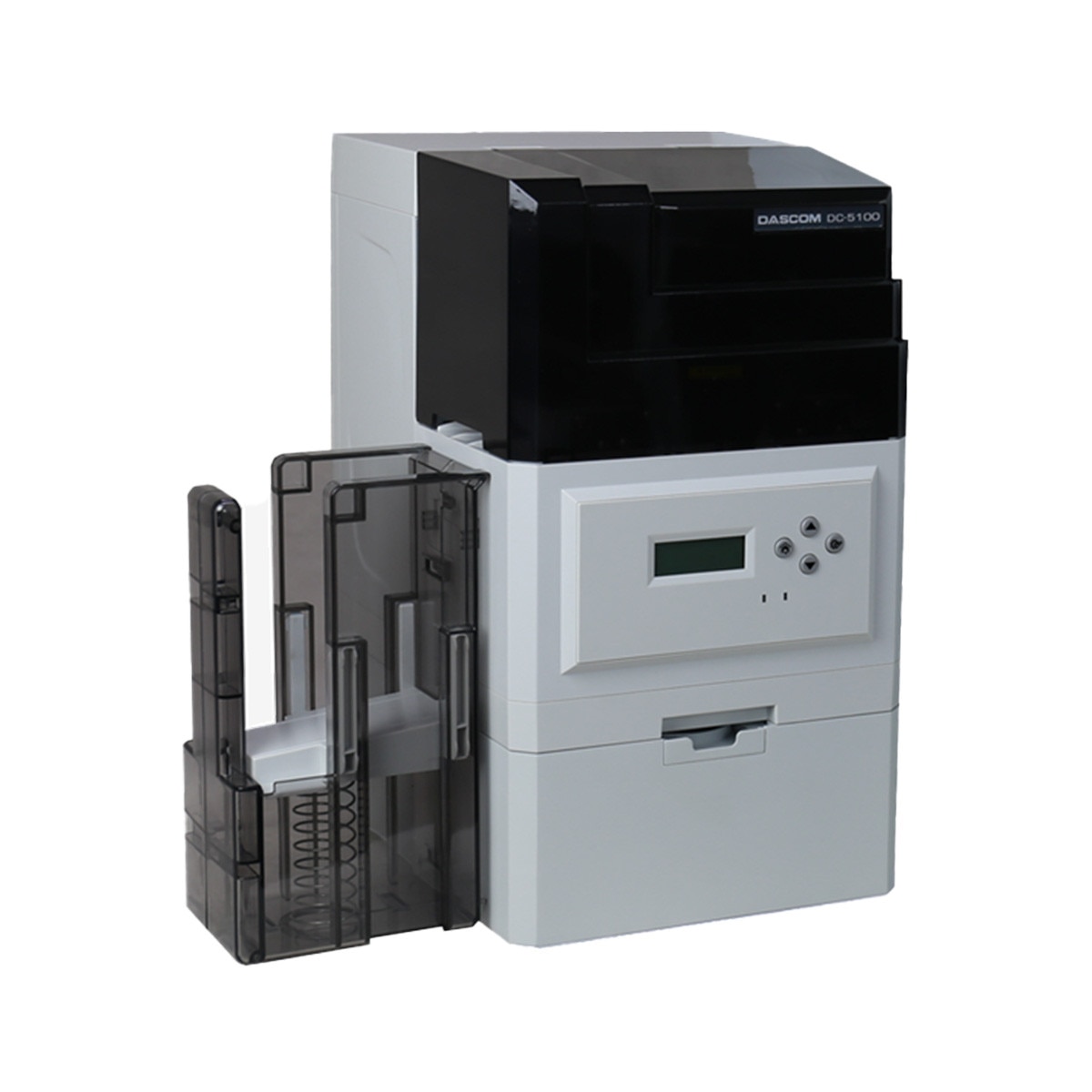

DASCOM 28.849.4208 DC-5100 Dual-Sided Laminator
Details
Overview
The DC-5100 Laminator is designed for fast, efficient performance in the most demanding environments. This high-performance laminator provides excellent throughput and workload capacity, making it ideal for heavy-duty operations. Whether used in hospitality, healthcare, or high-security environments, the DC-5100 delivers reliable, long-lasting protection for your cards.
An excellent value, the DC-5100 offers low operating costs and can laminate any CR-80 card on its own. However, it fully integrates with the Dascom DC-7600 Retransfer Printer, allowing for both printing and laminating to be done in one seamless operation.
User-Friendly Features
The DC-5100 minimizes user intervention with its intuitive menu system and easy-to-use setup tool. It also features a backlit display, making it easy to read all necessary information. Standard connectivity includes USB 2.0 and Ethernet with IPv4 support for seamless integration into any work environment.
Advanced Security Features
The DC-5100 supports clear or holographic laminates, offering up to three levels of security, ensuring the protection of your ID cards. With RFID protection for laminates and options for two-dimensional holographic designs, microtext, and color-shifting inks, this laminator is perfect for organizations requiring enhanced security measures.
Security Levels
Level 1: Two-dimensional holographic design, Kinetic effects, Micro Text (.010 inches to .008 inches).
Level 2: Two-dimensional holographic OVD security design, Guilloche fine lines, Two Channel Flip Image, Black/White color shift.
Level 3: High-resolution OVD, UV ink (Red, Green, or Blue), Color shifting ink, Forensic features including micro taggents, DNA taggents, sequential numbering, QR codes, and IR coatings.
Common Applications
The DC-5100 Laminator is perfect for use in:
- Hospitality environments
- Medical facilities
- ID card printing
- Security applications
- High-loyalty membership cards
Specifications
| Specification | Details |
|---|---|
| Lamination Method | Direct thermal transfer |
| Lamination Speed | 5 - 35 mm/sec (adjustable) |
| Lamination Type | Single and dual-sided (with DC-7600 integration) |
| Card Size | ISO CR80-ISO 7810 (53.98 x 85.60mm) |
| Card Thickness | 0.48 - 1.1 mm (20 - 50 mil) |
| Lamination Temperature | 100 - 185°C |
| Interfaces | USB 2.0, Ethernet 10/100 Base-TX, IEEE 802.3u |
| Power Supply | 100-240 V AC, 50/60 Hz (24V output) |
| Power Consumption | 96 W during operation |
| Dimensions | 220 x 270 x 370 mm (8.66 x 10.63 x 14.57 in) |
| Weight | 8.3 kg (18.3 lbs) |
| Operating Conditions | Temperature: 15 - 30°C, Humidity: 35 - 70% |
| Storage Conditions | Temperature: -20 - 60°C, Humidity: 20 - 90% |
| Security Features | RFID protection for laminates |
