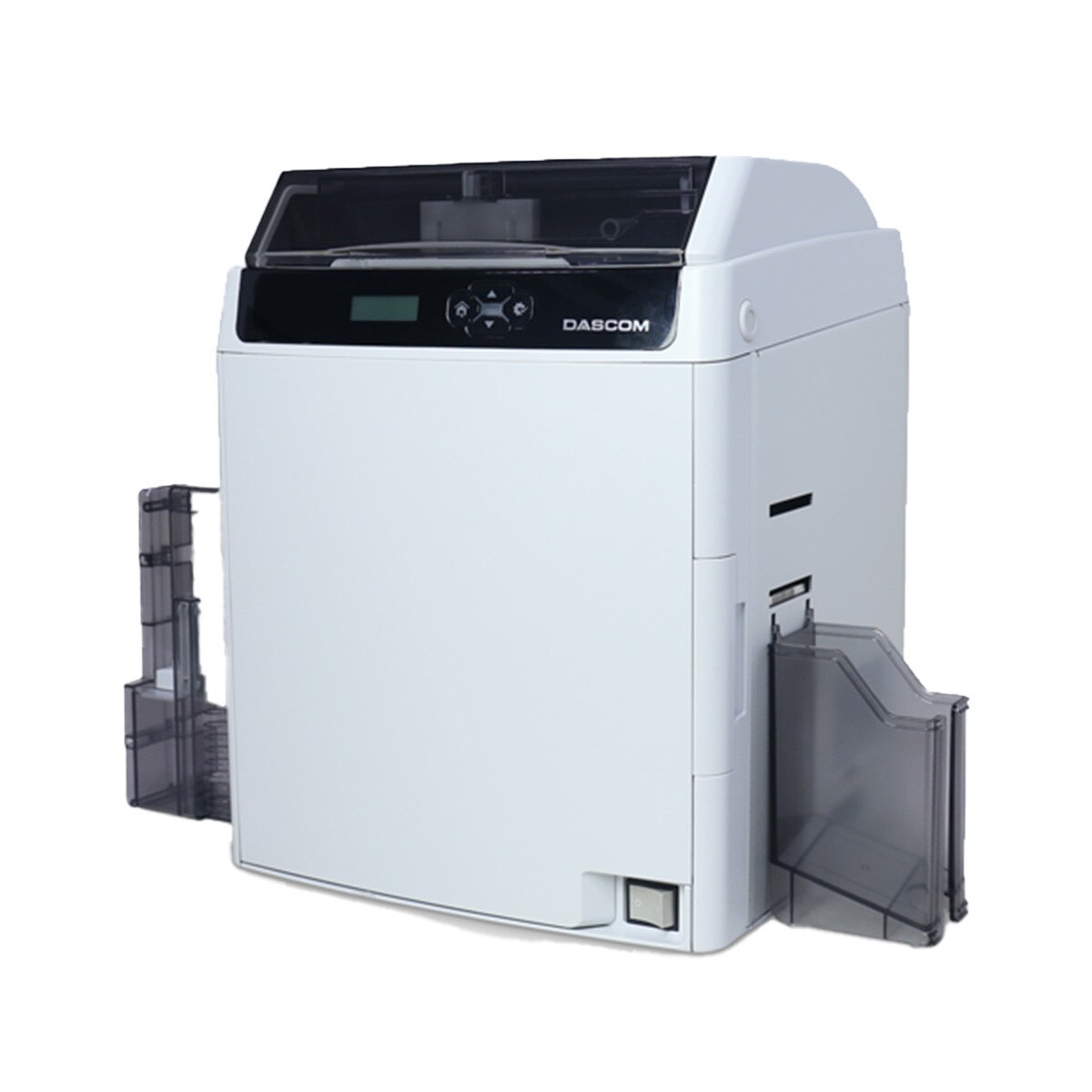

Dascom DC-7600 Dual-Sided Retransfer Printer

(0)No Reviews yet
SKU: Dascom DC-7600 Dual-Sided
$3,450.00 to $6,174.95

Details

The DASCOM DC-7600 is a top-tier, industrial-grade card printer designed for businesses that require the highest quality and security in their card printing operations. Utilizing advanced retransfer print technology, the DC-7600 delivers stunning 600 DPI, edge-to-edge printing, making it ideal for high-quality applications such as travel IDs, entry permits, and driver’s licenses. With the ability to print single-sided cards in just 25 seconds, and dual-sided cards in 55 seconds, this printer is built for speed and productivity. The DC-7600 features a large 250-card feeder and supports various smart card encoders, ensuring versatility for a wide range of card types. Its rugged design, combined with proprietary DASCOM SOC technology and RFID security features, ensures that your card data remains secure. The DC-7600 is the perfect choice for organizations looking for high-volume, high-quality, and secure card printing solutions.

Reverse Image Transfer (Retransfer) Card Printing Technology

This ID card printer uses advanced retransfer printing technology, where ink from a ribbon is first applied to a dye-receptive "transfer film." After all necessary colors are layered onto the film, it is then fused onto a blank PVC or composite card. This two-step process results in a high-definition, "over-the-edge" printed card. Because the printing process uses a flexible transfer film rather than a fixed printhead, it is perfect for producing highly detailed images (up to 600 dpi) on uneven surfaces, such as ID cards with embedded electronic chips (smart cards). Additionally, the re-transfer method extends the lifespan of the printhead by eliminating direct contact with the card material.

600 dpi

This ID card printer offers an impressive resolution of 600 dpi (dots per inch), or 23.6 dpm (dots per millimeter), delivering exceptionally vibrant and crisp prints. DPI, or dots per inch, measures the number of ink dots the printer can place within a linear inch on the card’s surface. With 600 dpi, the printer can produce double the detail compared to standard 300 dpi printers, resulting in sharper images, smoother gradients, and more precise text. This higher resolution is ideal for ID cards where the quality of fine details, such as intricate logos, microtext, and high-definition photos, is critical. The enhanced clarity and vibrancy ensure that every element on the card stands out, providing a superior level of professionalism and security.

Dual-Sided ID Card Printing

This ID card printer is built for dual-sided printing, offering the flexibility to print on both the front and back of each card. This feature is ideal for organizations that need to display more information, such as employee details on one side and company branding or security features on the other. With its advanced technology, this dual-sided printer ensures that both sides of the card are printed with the same high level of quality and precision, all in one seamless operation. This makes it a versatile and efficient choice for creating professional, full-featured ID cards, membership cards, and more, without the need for multiple printing passes or additional equipment. Whether you’re looking to enhance security, improve functionality, or simply make better use of card space, this dual-sided printer is designed to meet your needs with ease.

Magnetic Stripe Encoding

ISO Magnetic stripe encoding allows data to be encoded onto magnetic stripes embedded within plastic or composite cards. An ISO magnetic stripe encoder supports both high coercivity (HiCo) and low coercivity (LoCo) magnetic stripes, giving you flexibility depending on your specific application needs. By configuring your printer and encoder, you can store data across three distinct magnetic stripe tracks, each capable of holding different types of information. These tracks can be programmed for use in a wide range of systems, including door access control, payment processing, loyalty programs, and more. Magnetic stripe technology remains a reliable and widely used method for securely storing and transmitting data, making it a valuable feature for businesses looking to integrate with various third-party systems.

Smart Card

Smart card encoding in ID card printers is the process of writing data onto the embedded chip within a smart card during the card printing process. This allows the card to store and transmit secure information, such as access credentials, personal identification, or payment details. Integrated directly into the ID card printer, the smart card encoder programs the card with the necessary data while the card is being printed, ensuring seamless production of fully personalized and secure credentials. This technology is widely used in environments requiring enhanced security, such as corporate offices, government facilities, and educational institutions.

Locking Hopper

Enhance the security of your ID card printing process with locking card hoppers. These secure hoppers provide an effective way to safeguard your cards at every stage. Locking input hoppers protect your inventory of blank, unprinted cards from theft or tampering while they are in the printer. On the other end, locking output hoppers keep your newly-printed ID cards, which contain sensitive and valuable identification information, secure until they are retrieved. By using locking input and/or output hoppers, you add an essential layer of protection to your ID card printing operations, ensuring that your card issuance process remains secure and uncompromised.

Specifications

SpecificationDetails
Print MethodColor dye sublimation retransfer
Resolution600 DPI
Print CapabilitySingle side, double side, over-the-edge, photo-quality image color
Print SpeedSingle side: 25 seconds/card, Double side: 55 seconds/card
Card Thickness20-50 mil (manual slot available)
Card LoadingAuto card feeder (250 cards), manual feed for single cards
Dimensions12.25" (L) x 13.25" (W) x 17" (H)
Weight48 lbs (22 kg)
Power Supply100-240V, 50/60 Hz
Supported CardsPVC, ABS, PET, PET-G, PC (ISO ID-1/CR-80 size)
InterfacesUSB 2.0, Ethernet 10/100
Operating EnvironmentTemperature: 15 - 30 °C, Humidity: 35 - 95%
DriverWindows 32/64 bit (7, 8, 10)
Warranty3 years, lifetime for print head
