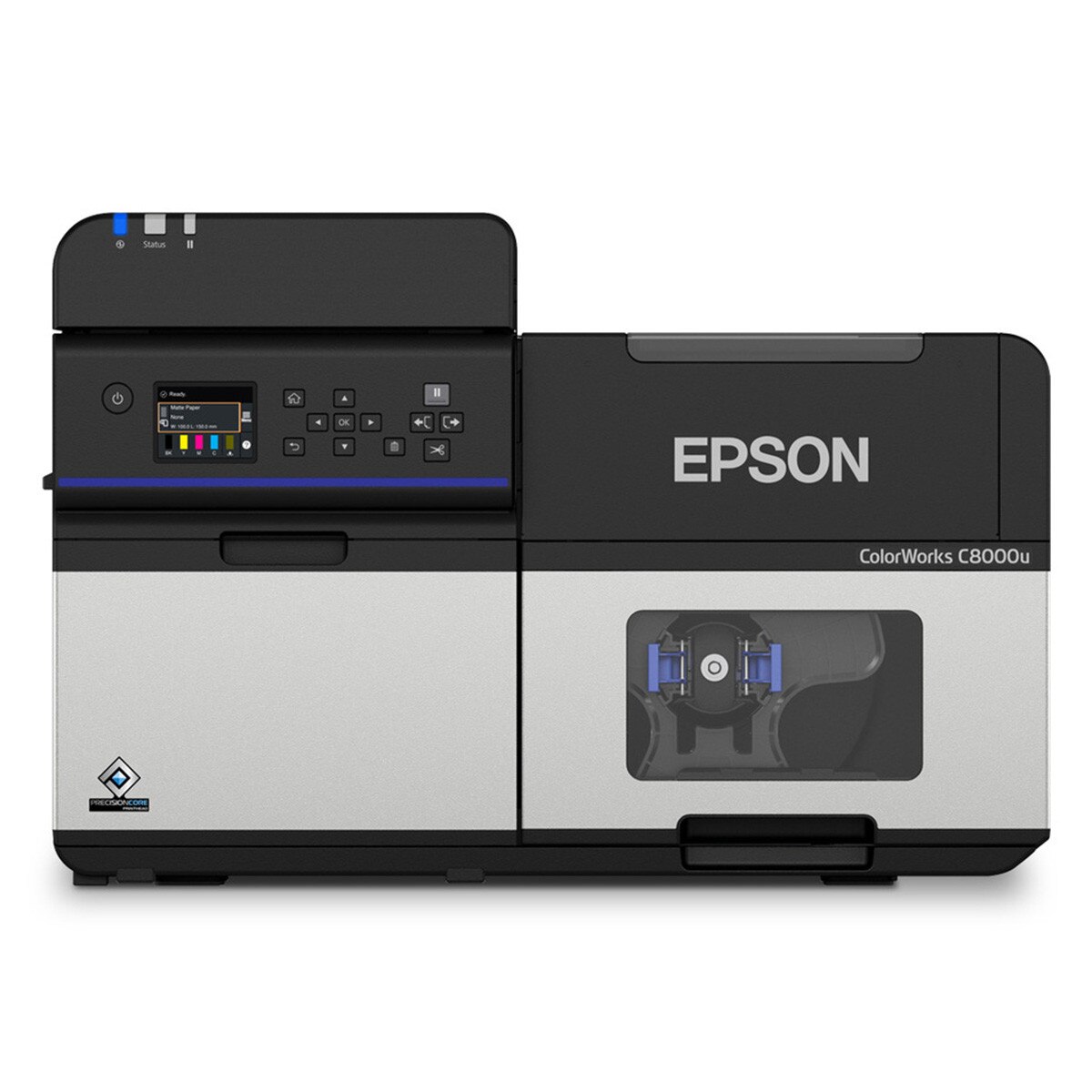

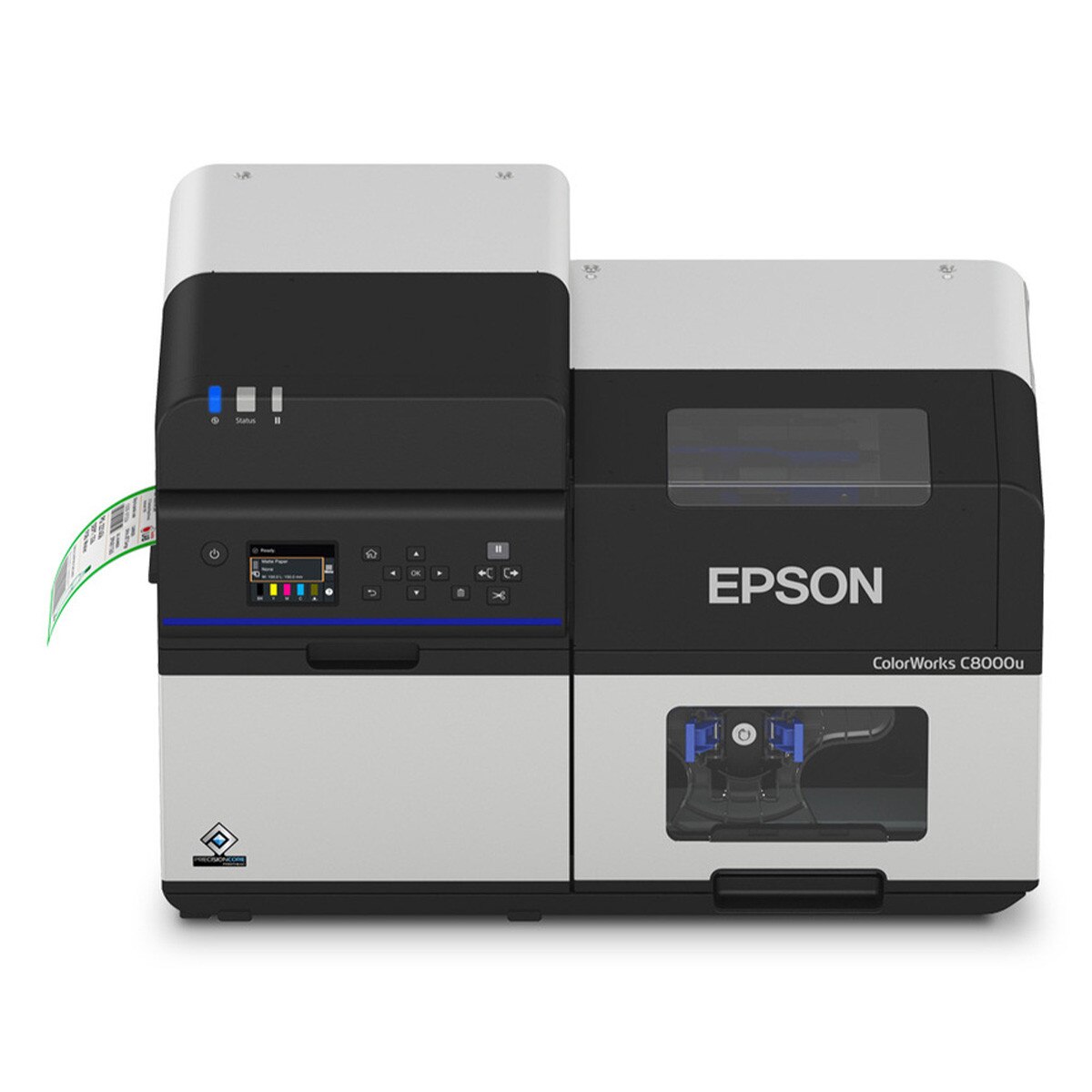

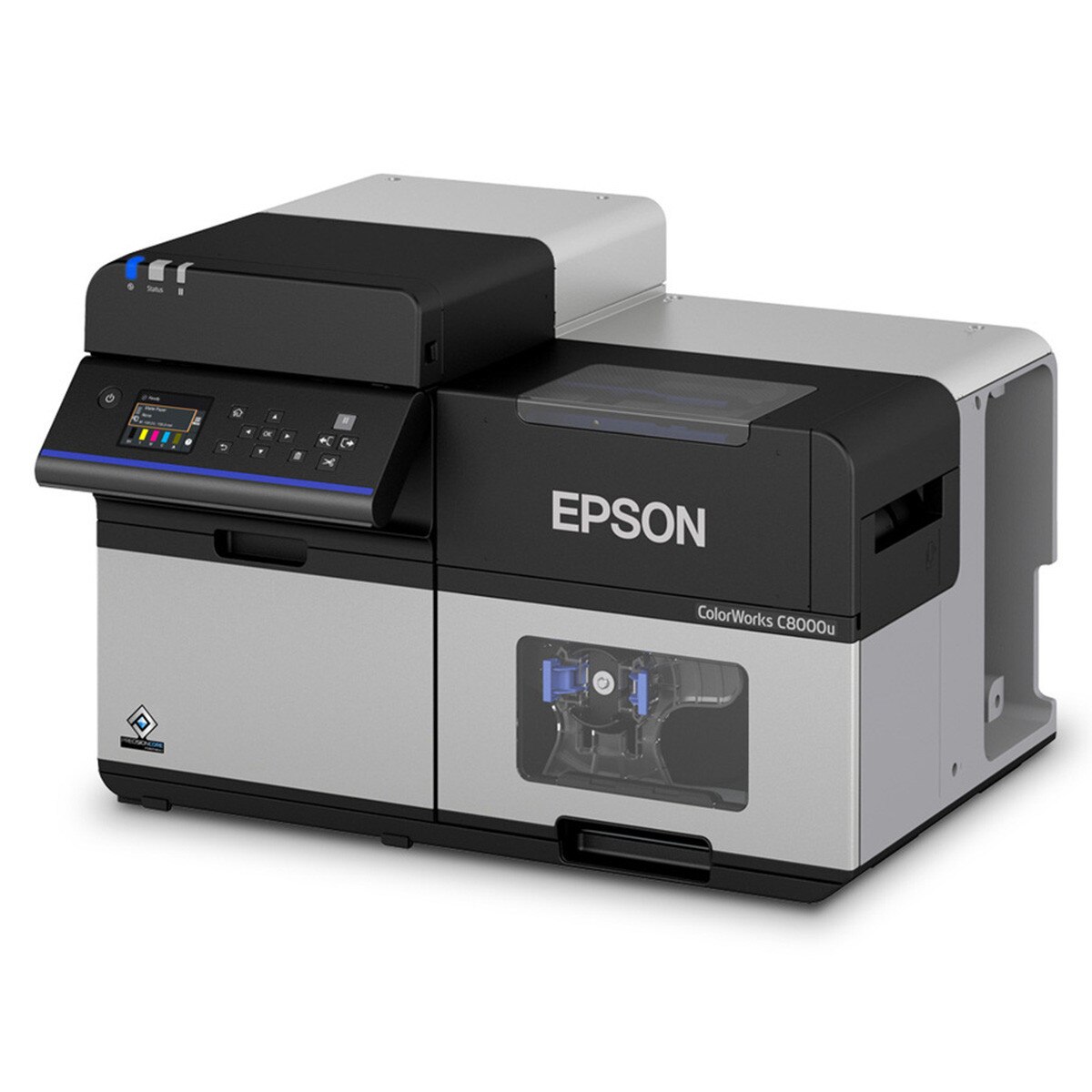

Epson ColorWorks CW-C8000 High-Speed 4" Color Inkjet Label Printer
Details
Elevate your label printing with the Epson ColorWorks CW-C8000, a state-of-the-art color label printer designed for mid- to high-volume batch runs. With advanced PrecisionCore® Heat-Free technology, this printer combines exceptional image quality and sharp precision at incredible speeds, making it the perfect solution for busy, on-demand environments.
The CW-C8000 features durable, high-performance UltraChrome® DL pigment inks, ensuring high-quality, long-lasting labels that resist smudging, smearing, and fading. Choose between Gloss and Matte Black Ink to suit your specific labeling needs. With high-capacity ink packs, you can expect a low cost per milliliter and reduced consumable waste.
Maximize Your Workflow
The ColorWorks CW-C8000 is built to maximize your workflow with advanced connectivity options and remote management tools. Whether it's cloud printing or optional Wi-Fi®, integrating large fleets has never been easier thanks to Epson Cloud Solution PORT®.
Key Features
- Exceptional print quality — PrecisionCore Heat-Free technology and UltraChrome DL Inks deliver accurate colors, smooth gradations, precise barcodes, and sharp text.
- High-speed, on-demand color labels — Print multiple labels with variable data at speeds up to 12 inches per second, ideal for mid- to high-volume batch runs.
- Reliable performance with PrecisionCore — The permanent printhead minimizes user interventions and lowers maintenance costs.
- High-yield 1.9L total ink capacity — Perfect for high-volume batch runs, reducing the frequency of interventions and offering low cost per milliliter.
- Advanced connectivity and remote management — Integrate large fleets with Epson Cloud Solution PORT®, supporting cloud printing and optional Wi-Fi®.
- Seamless workflow integration — Compatible with ZPL II®, major middleware, SAP®, Windows®, Mac®, and Linux®; includes built-in ESC/Label® language.
- Durable, high-quality labels — UltraChrome DL Ink technology ensures labels resist smudging, smearing, and fading.
- High efficiency and low power consumption — PrecisionCore Heat-Free technology optimizes ink usage and minimizes energy consumption.
- World-class service and support — Comes with a 1-year limited warranty, with extended service plans available for up to 5 years of continuous coverage.
Choosing Between Gloss and Matte
When choosing between matte and gloss ink for your Epson ColorWorks printer, the decision hinges on the type of media you'll primarily be printing on and the specific application of your labels. Gloss ink is the more versatile option, ideal for producing high-quality, vibrant images on various substrates, including glossy paper, polypropylene, and clear labels. It's particularly well-suited for product labels in industries like food, beverages, cosmetics, and more, where a polished, professional look is essential. If you ever need to print on glossy materials, the gloss ink version is recommended, as it can also perform well on matte media in most cases.
On the other hand, matte ink is your best bet if your focus is on printing exclusively on matte materials. It delivers a richer, darker black and more vibrant images on matte and plain media, making it ideal for industrial labels, especially those requiring GHS BS5609 compliance for chemical labeling. Matte ink excels in durability under harsh conditions but struggles with adhesion on glossy surfaces, which can result in suboptimal drying and durability.
Ultimately, if your printing needs are varied or you might print on glossy media occasionally, the gloss ink version is the most flexible and reliable choice. However, if you are certain that all your media will be matte, opting for the matte ink version will provide superior results on those specific surfaces.
Epson Preferred Plus Support Plans
Epson's support plans for ColorWorks inkjet label printers are designed to ensure your business keeps running smoothly, no matter what. Choosing the right plan means you can rest easy knowing that any potential disruptions to your operations are minimized, allowing you to focus on what you do best.
The Spare-In-The-Air (SITA) Plan is perfect for businesses that can't afford downtime. If your printer experiences a hardware issue, Epson will swiftly ship you a replacement unit, typically by the next business day. This plan covers all labor and shipping costs, so there's no extra hassle for you. Simply send back the faulty unit, and you're back to business as usual in no time. With coverage options of one, three, or five years, the SITA Plan offers peace of mind and uninterrupted productivity.
Alternatively, the Return for Repair Plan provides a cost-effective solution for businesses that have more flexibility. When issues arise, simply send your printer to Epson, and their expert technicians will repair and return it, with all labor and shipping costs covered. This plan is available for one, two, or four years, ensuring that your investment in high-quality printing is protected.
Both plans are designed to meet the diverse needs of Epson customers, but the SITA Plan stands out for those who need a quick turnaround to maintain their operations. On the other hand, the Return for Repair Plan offers robust support at a lower cost, ideal for those with backup equipment or less urgent needs. By choosing either of these plans, you're not just protecting your printer—you're safeguarding your business's efficiency and productivity. Don’t wait until a problem arises; secure your Epson support plan today and keep your operations running seamlessly.
Delivery Options
When it comes to receiving your Epson printer, we want to ensure you understand the delivery options available, especially given the weight of this printer, which is approximately 95 pounds. This weight necessitates special delivery considerations, and you have three options to choose from: Loading Dock Delivery, Liftgate Required, and Inside Delivery (Including Liftgate).
- Loading Dock Delivery: This is the most straightforward and cost-effective option if your facility has a loading dock—a raised platform at your building designed for trucks to back up and unload. With this option, there are no additional fees, and the printer can be quickly and easily unloaded.
- Liftgate Required: If your location doesn’t have a loading dock, selecting the liftgate service is essential. A liftgate is a hydraulic platform attached to the back of the delivery truck that safely lowers the printer from the truck to ground level. This service incurs an additional fee because it requires specialized equipment to handle the heavy printer.
- Inside Delivery (Including Liftgate): This is the most comprehensive delivery option, ideal if you need the printer placed inside your facility. It includes the liftgate service to lower the printer to the ground and also covers the service of moving the printer from the outside into your desired location within your building. This option provides maximum convenience and safety but comes with the highest additional cost.
Each delivery option is designed to accommodate the significant size and weight of the Epson printer, ensuring it reaches you safely and securely. Choose the option that best fits your facility's capabilities and your specific needs.
Specifications
Printer
- Print Method: Line inkjet, dot matrix
- Print Resolution: 600 dpi x 1200 dpi
- Print Speed: Up to 11.8" per second (300 mm/sec)
- Color Adjustment: Epson Preferred Color, Epson Standard, Epson Vivid Color
- Media Dispense Type: Auto cutter (scissor type), up to 1.5 million cuts
- Printhead: PrecisionCore printhead, permanent
- Paper-Feeding Mechanism Life: 500 km
Ink
- Ink Type: UltraChrome DL SJIC47P pigment ink
- Ink Colors: Cyan, Magenta, Yellow, and Black (Gloss or Matte Black Options)

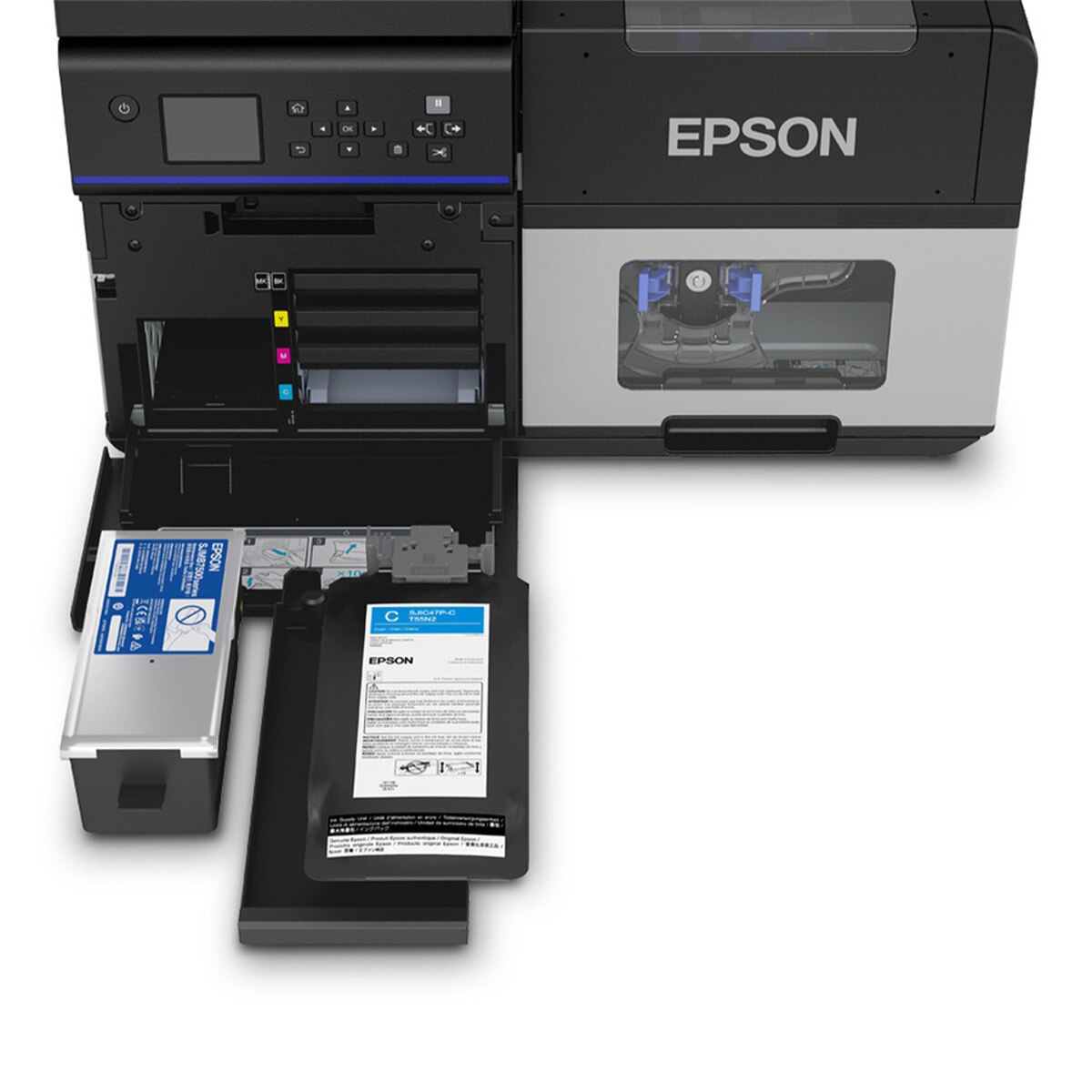

- Ink Pack Configuration: Four (4) individual ink packs, 480 mL each pack
This printer is designed for use with genuine Epson packs only, not third-party packs or ink.
Media
- Supported Media Types: Die-Cut Label, Full-Page Label, Continuous Label, Tag
- Supported Media Constructions: Plain Paper, Textured Paper, Matte Paper, Synthetic, Glossy Paper, Glossy Film, High Glossy Paper
- Die-Cut Label Gap: 0.12" – 0.24" (3 mm – 6 mm)
- Gap Sensor Position: Adjustable; 0.12" – 2.20" (3 mm – 56 mm) from left side; pitch: 0.04" (1 mm)
- Black Mark Sensor Position: Fixed position; approximately 0.49" (12.4 mm) from left
- Black Mark Width: 0.75" (19 mm) or more from paper edge
- Black Mark Length: 0.16" to 1.0" (4 mm – 25.4 mm) with 0.16" (4 mm) or more of white space around the black mark
- Maximum Print Width: 4.25" (108 mm)
- Media Width:
- Internal Roll Media (Min. – Max.): 1.0" – 4.40" (25.4 mm – 112 mm)
- External Roll Media, Fanfold (Min. – Max.): 1.97" – 4.40" (50 mm – 112 mm)
- Media Length: (Min. – Max.): 0.31" – 40" (8 mm – 1,016 mm)
- Media Thickness: (Min. – Max.): 3.30 mils – 23.62 mils (0.084 mm – 0.600 mm)
- Internal Roll Media:
- Media Core Inner Diameter: 3.0" (76.2 mm)
- Media Maximum Outer Diameter: 8.0" (203.2 mm)

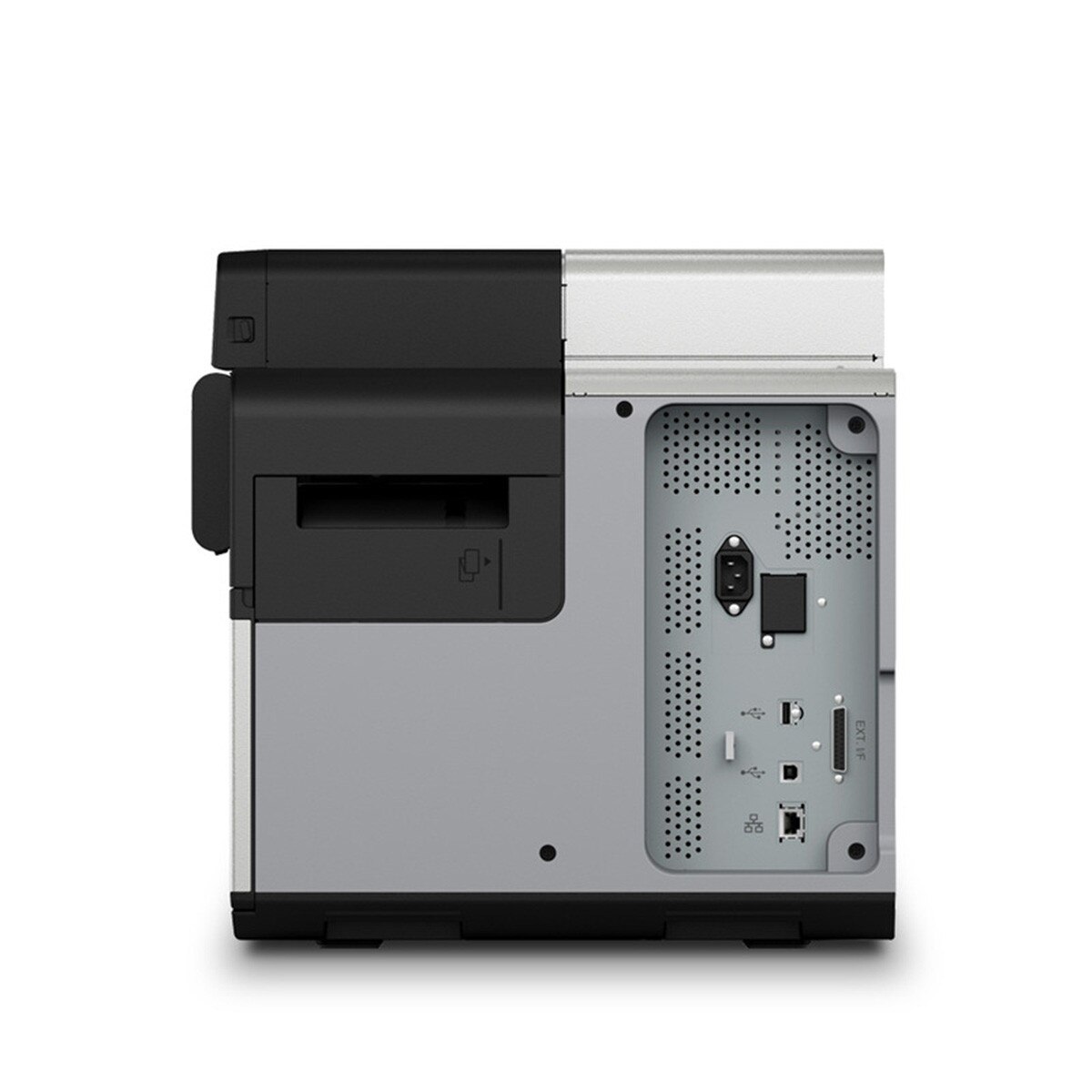

Connectivity
- USB: USB 3.0 (one port), USB 2.0 (one port)
- Ethernet: 1000Base-T/100Base-TX/10Base-T
- Wi-Fi: Optional Wi-Fi dongle available (OT-WL06)
- General-Purpose I/O Port: D-Sub 25
Print Utilities and Remote Management Tools
- EpsonNet SetupManager
- EpsonNet Config SE
- Epson Device Admin
- Epson Deployment Tool
- PrinterSetting
- Color Tone Matching Assistant
- USB Printer Class Device Replacement
- Epson Firmware Updater
- Epson Cloud Solution PORT3 Production Monitor
- WebConfig
General
- Display: 2.7" color LCD
- Operating Systems Supported:
- Windows® 11
- Windows 10 (32-bit/64-bit)
- Windows 8.1 (32-bit/64-bit)
- Windows Server® 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012
- Windows Server 2012 R2
- OS X® 10.9.5 or later, macOS® 10.12 or later
- CentOS® 7 (x86_64), Ubuntu 20.04 (x86_64)
- Direct Command-Based Printing: Zebra® ZPL II® native language support, plus command extensions, to allow for colorization of data; ESC/Label color command language; SAP® Direct Printing
- Power Supply: AC Direct
- Temperature:
- Operating: 41 °F to 95 °F (5 °C to 35 °C), 20% to 80% RH
- Storage (When Ink Is Loaded and Charged):
- Gloss Black Ink: 5 °F – 104 °F (-15 °C – 40 °C), up to 120 H
- Matte Black Ink: 14 °F – 104 °F (-10 °C – 40 °C)
- Power Consumption:
- Operating: 83.0 W
- Standby: 3.3 W
- Power Off: 0.4 W
- Rated Voltage: 100 V – 240 V
- Rated Frequency: 50 Hz – 60 Hz
- Acoustic Noise: Approx. 57 dB
- EMI: FCC Class A, ICES-003 Class A
- Warranty: 1-year limited warranty with Return for Repair
Weight and Dimensions
- Printer Dimensions (W x D x H): 24.4" x 15.4" x 16.5" (620 mm x 392 mm x 420 mm)
- Printer Weight: 79.4 lb (35 kg)
- Packaging Weight and Dimensions:
- Packaging Dimensions (W x D x H): 32.2" x 22.7" x 24.3" (818 mm x 576 mm x 616 mm)
- Packaging Weight: 94.8 lb (43 kg)
Eco Features
- RoHS compliant
- End-of-life options available
- Epson America, Inc. is a SmartWay® Transport Partner
What’s Included
- ColorWorks CW-C8000 printer (Gloss or Matte)
- Four ink packs (CMYK)
- Maintenance box
- AC power adapter and cord
- Sample label roll
- Start Here guide
Ordering Information
- Printer Models:
- CW-C8000 Matte Printer: C31CL02A9981
- CW-C8000 Gloss Printer: C31CL02A9991
- Ink Packs:
- SJIC47P-BK Gloss Black Ink Pack: C13T55N120
- SJIC47P-MK Matte Black Ink Pack: C13T55N520
- SJIC47P-C Cyan Ink Pack: C13T55N220
- SJIC47P-M Magenta Ink Pack: C13T55N320
- SJIC47P-Y Yellow Ink Pack: C13T55N420
- Maintenance Box: SJMB7500 Maintenance Box for C7500, C8000
- Optional Accessories:
- Take-Up Unit: C32C882501
