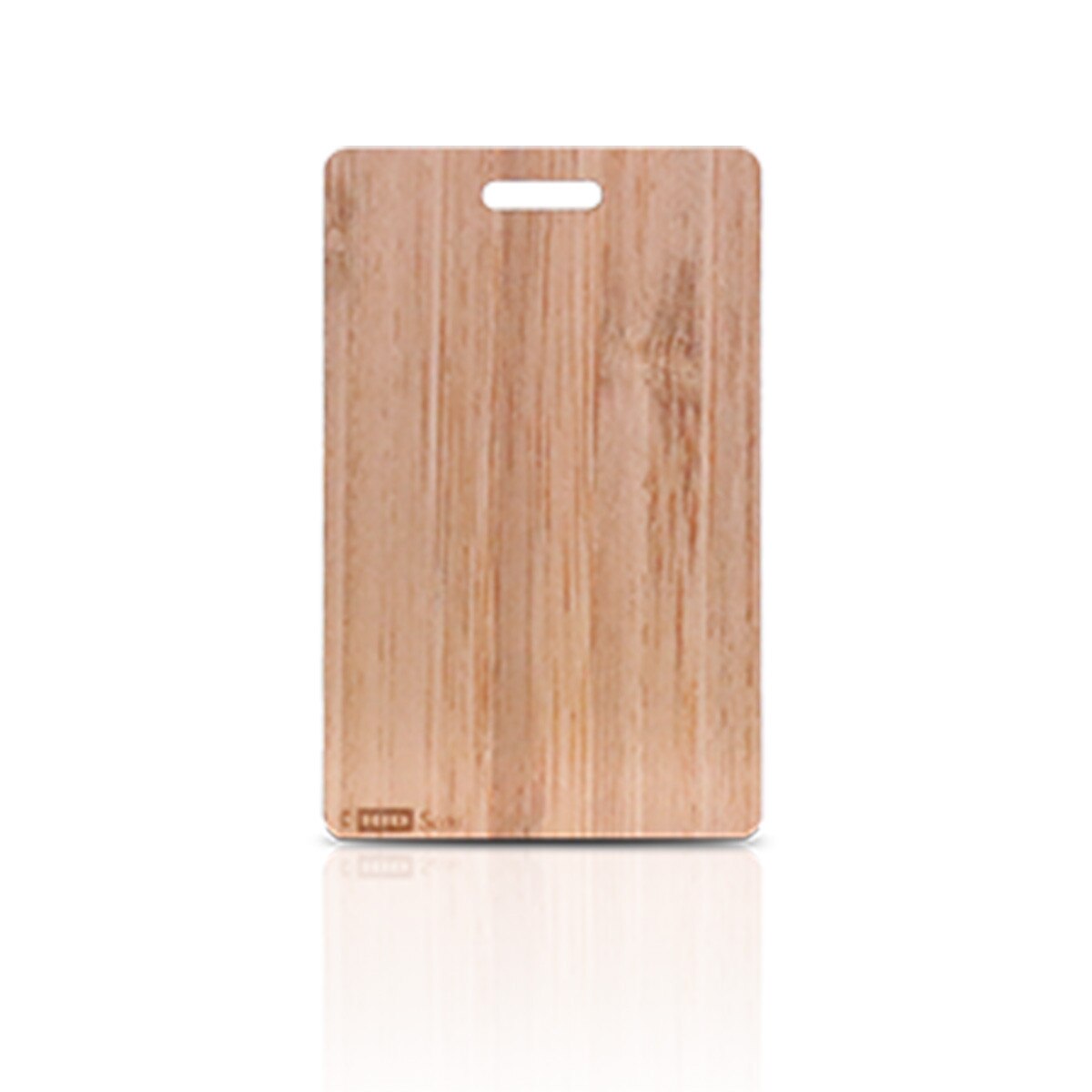

HID 5746PGGNV Programmed Bamboo SEOS Contactless Smart Card with Vertical Slot Punch

(0)No Reviews yet
SKU: 5746PGGNV
MSRP: $684.00
$430.00 per Pack of 100

🚚 FREE Shipping Over $100

Details

HID Seos Bamboo Card was designed to meet the needs of the modern world — delivering trusted security and user privacy while offering the flexibility to accommodate organizations as they transition to a more connected universe.


As the world becomes more environmentally conscious, choosing products that align with your organization's commitment to sustainability is important. That's why HID is proud to introduce the first in a series of environmentally friendly,  secure access control credentials — HID Seos Bamboo — made with sustainably sourced bamboo certified by the Forest Stewardship Council (FSC).


HID Seos Bamboo not only provides advanced security technology but also demonstrates your organization's commitment to the environment. The bamboo material is durable and stylish, making it the ideal choice for organizations looking to positively impact the environment without sacrificing security.  This PVC-free credential contains 73 % less plastic than the original Seos Card


HID Seos credentials leverage modern cryptography and mutual authentication between the credential and reader to ensure reliable and secure access control. HID Seos has received TÜViT Seal 5 certification for extra peace of mind.


Here are some key features of HID Seos Bamboo:


  • Supports environmental, social, and governance goals
  • Offers HID Seos technology for enhanced data protection
  • Works with a wide range of access control systems and applications
  • Provides durability, with a three-year warranty
  • Offers choices among profiles to best suit your application, with or without SIO
  • Backed by TÜViT Seal 5 certification
  • Included with the HID Corporate 1000 and HID Elite key programs
  • Highly secure — HID Seos is Secure Identity Object® (SIO)-enabled, allowing for multi-layered security beyond the card technology and protecting identity data from unauthorized access

Specifications

Base Part Number5746 (8K Memory)
Warranty3 Years
Operating Frequency13.56MHz
ProtocolISO14443A-4
Communication SpeedUp to 848kbps
Memory & Endurance8 Kbytes (min 500k cycles/10 years)
Security Features

Mutual authentication (compliant with ISO/IEC 24727-3) based on AES 128

Key diversification (based on NIST SP800-108 using AES 128)

Secure messaging (compliant to EN14890-1:2009)

Session key derivation based on NIST SP 800-56A

SIO Data Object SupportYes (enabled by default)
HID Format Support Yes (wrapped in SIO)
Signo ReadersUp to 7cm (2.75 )
iCLASS SE ReadersUp to 6cm (2.34”)
multiCLASS SE ReadersUp to 3cm (1.18”)
CP1000DRead/Write (SIO) / R/W to Custom ADF
iCLASS SE Biometric ReaderTemplate R/W
ICLASS SE RB25F Biometric ReaderTemplate R/W
Omnikey Readers2Read SIO and R/W to Open Data or Custom ADF
Embedded SE Devices3Read SIO and R/W to Open Data or Custom ADF
Body Construction 4,5Bamboo (86.6%), Thermoplastic Polyurethane (13.9%), Other (0.5%)
Bamboo CertificationMade with FSC-certified bamboo
Environmental Certification

RoHS, China RoHS, REACH, Halogen Free

Green Circle (pending)

Weight~6g
Product Dimensions

Length: 85.6mm +/- 0.25mm (3.37” +/- 0.01”)

Width: 53.98mm +/- 0.25mm (2.125” +/- 0.01”)

Thickness: 1.65mm +/- 0.35mm (0.65” +/- 0.14”)

Operating Temperature-35°C to +50°C (-31°F to +122°F)
Storage Temperature-35°C to +50°C (-31°F to +122°F)
HumidityTested for up to 1hr at 95%
Slot PunchYes (maximum pull force of 60 N)
Chemical Resistance

24 h salt water (5 %), 24 h sugared water (10 %),

24 h artificial perspiration

Handling Guidance

Bamboo is a natural wood, follow the handling guidance below:

  • Avoid prolonged use and storage in high-humidity environments
  • Do not submerge in water (If the card does become wet, dry at room temperature)
  • Do not bend
  • Do not overstress the slot punch

1HID testing occurs in the open air. Some environmental conditions, including metallic mounting surfaces, can significantly degrade read range and performance; plastic or ferrite spacers are recommended to improve performance on metallic mounting surfaces. Spacers for iCLASS® SE™ readers are available at hidglobal.com.

2Read performance is dependent on antenna design and environment.

3See logical access HTOG for HID Seos compatible OMNIKEY® products.

4Bamboo is a natural material, variations in color and texture will occur. Layers are bonded with Thermoplastic Polyurethane (TPU)
5 Calculated by Volume
