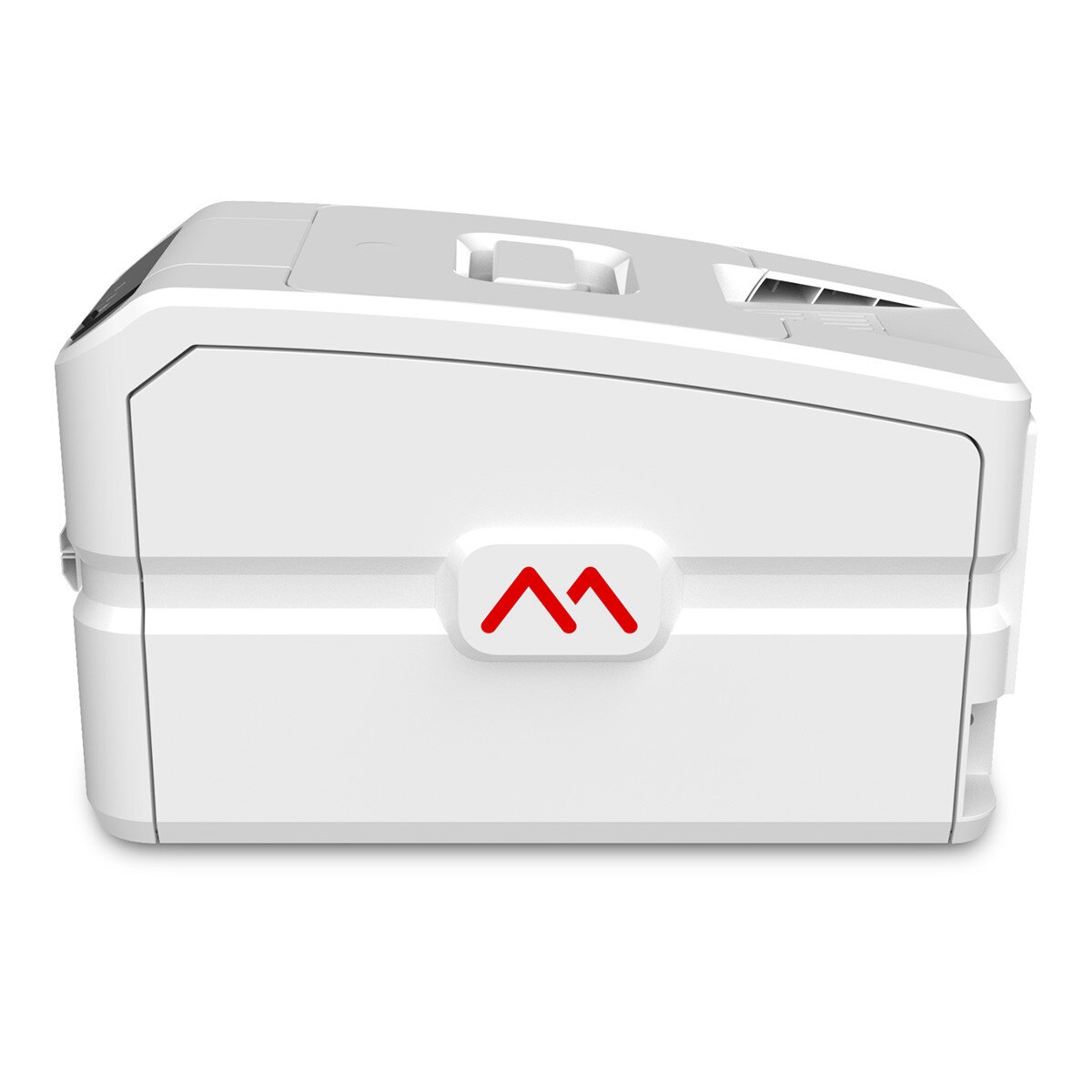

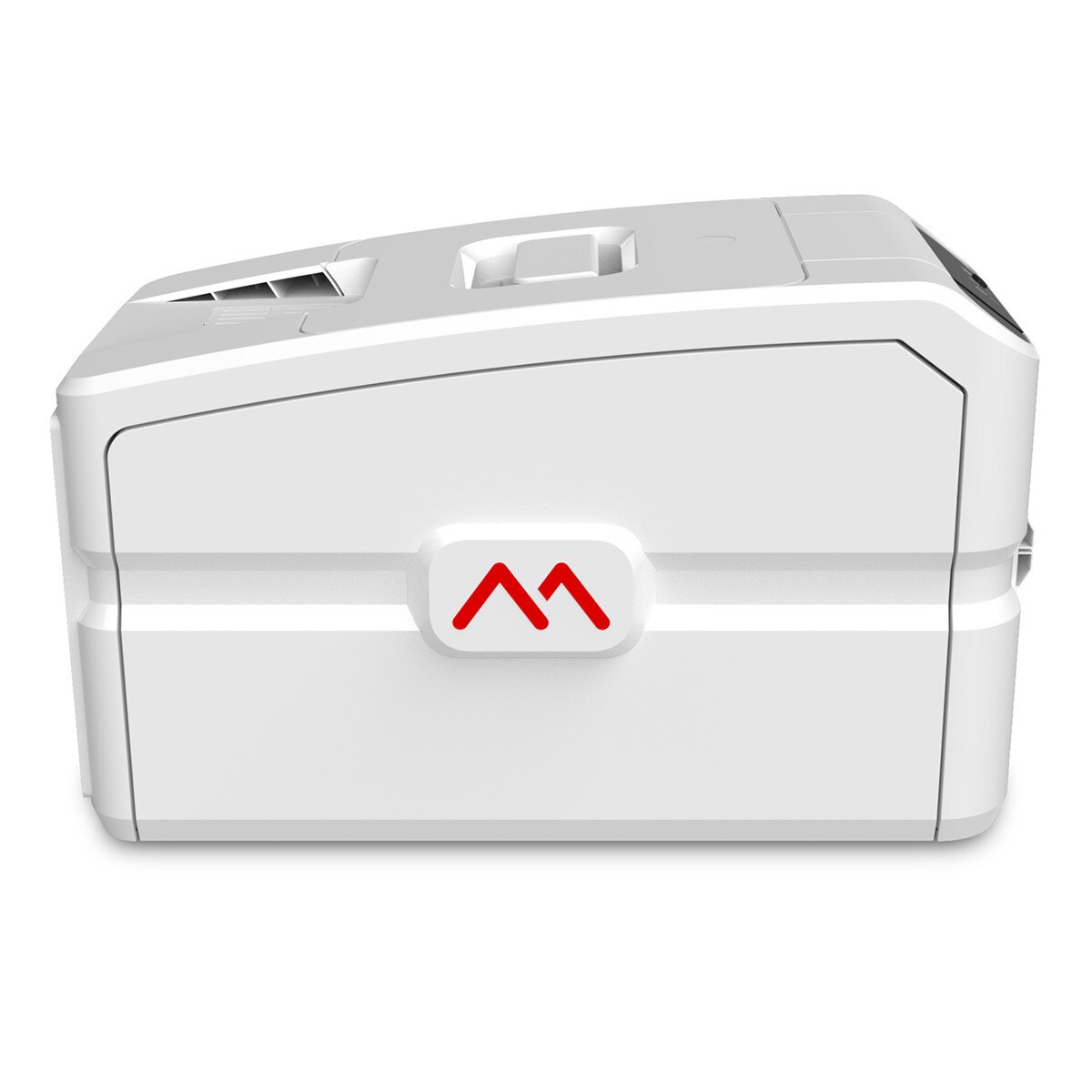

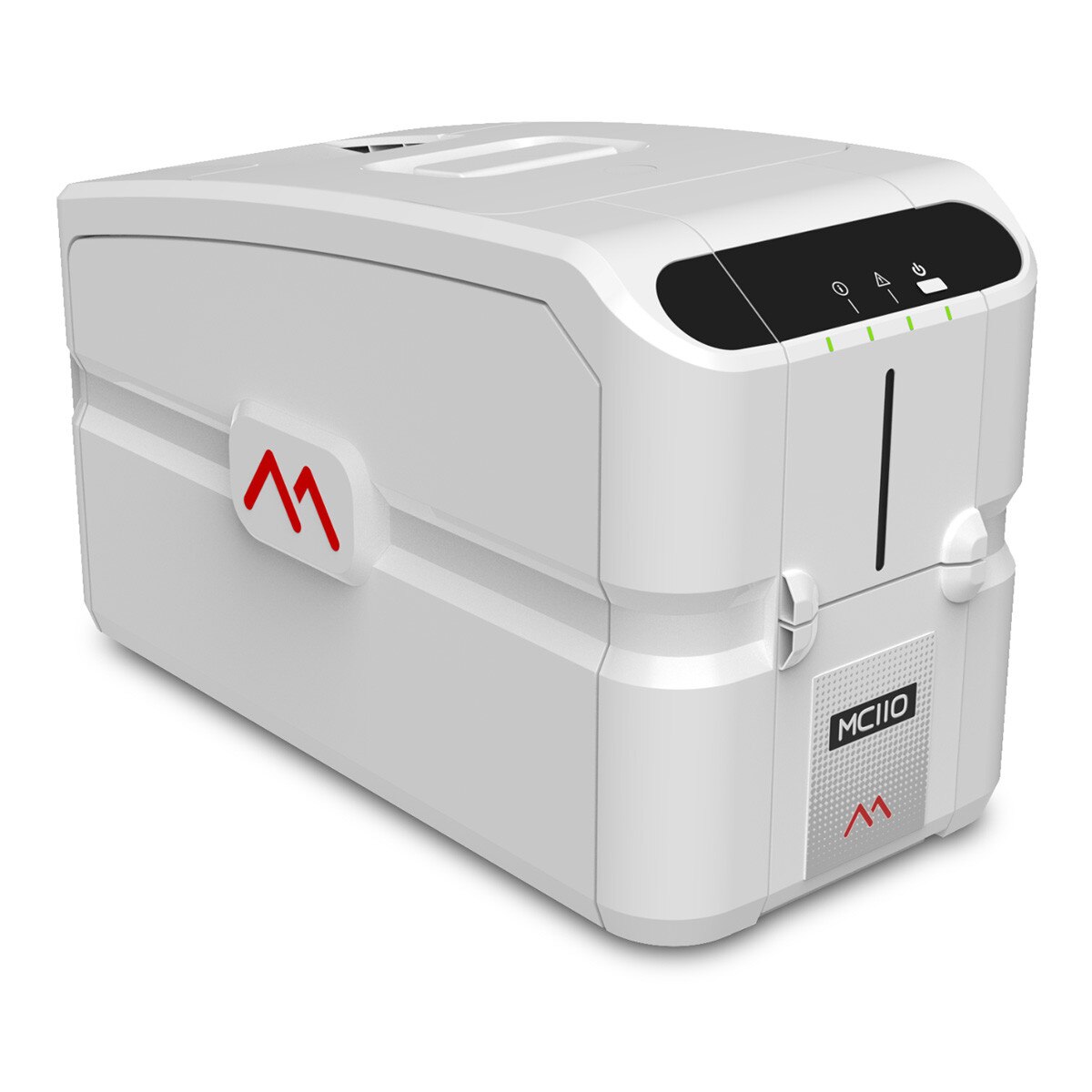

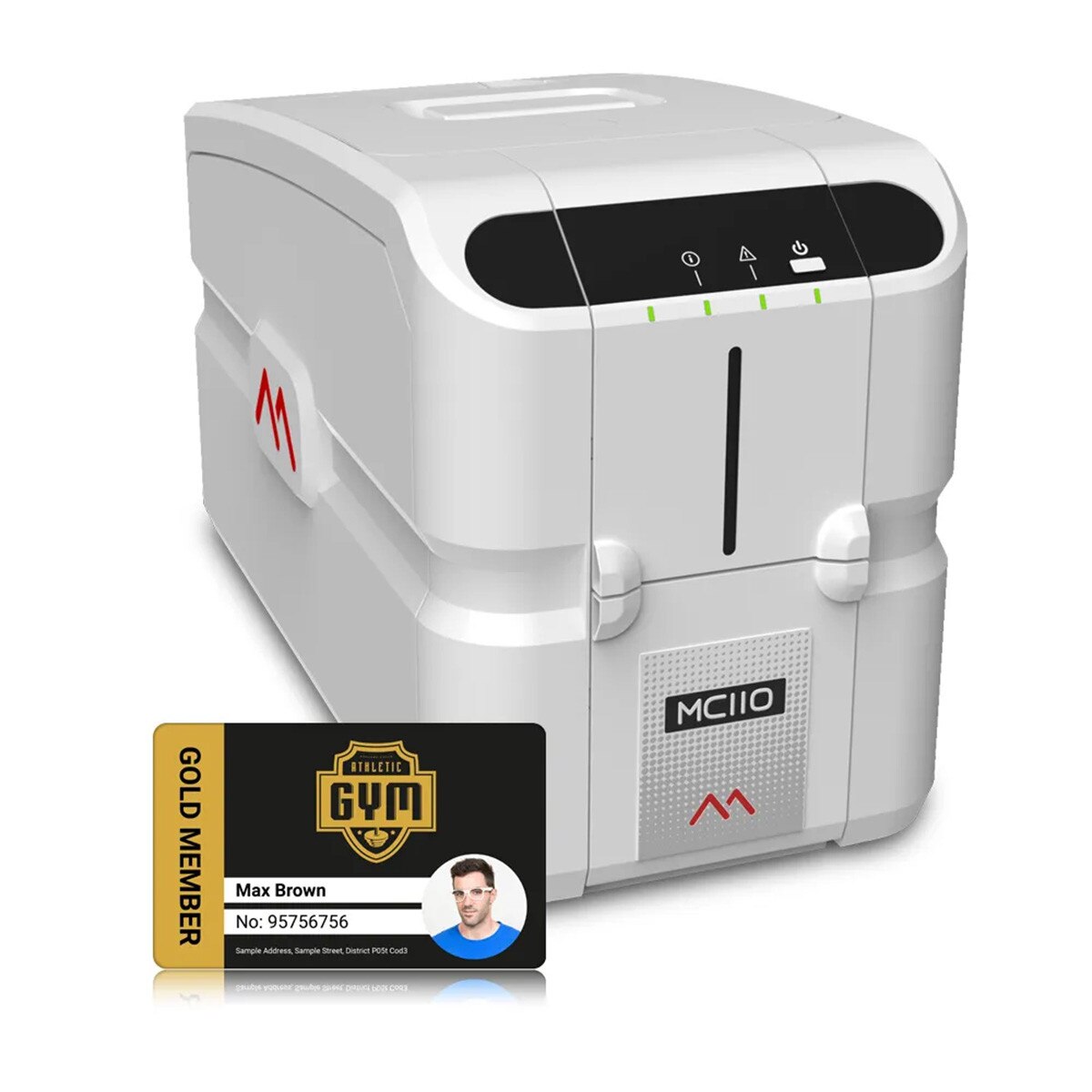

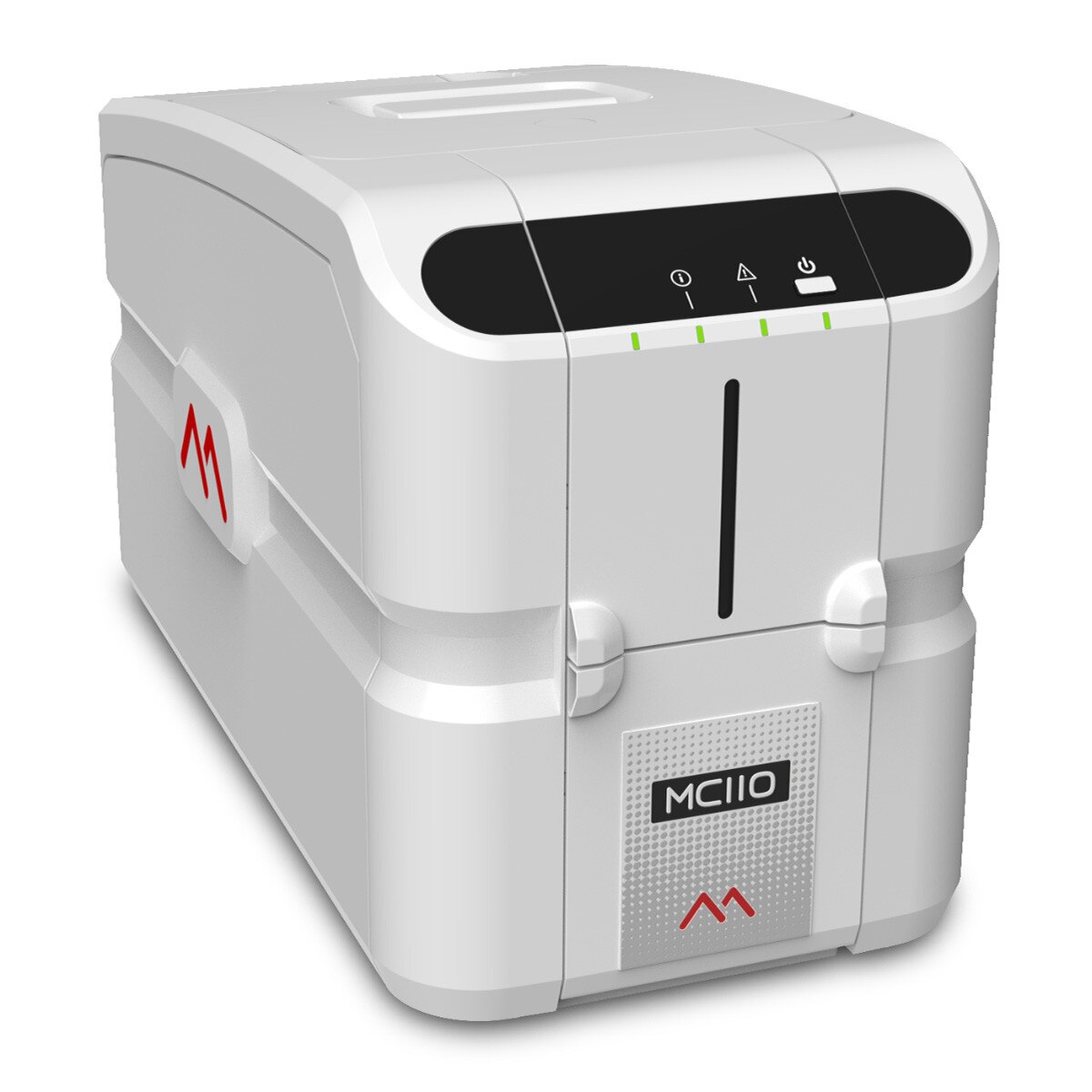

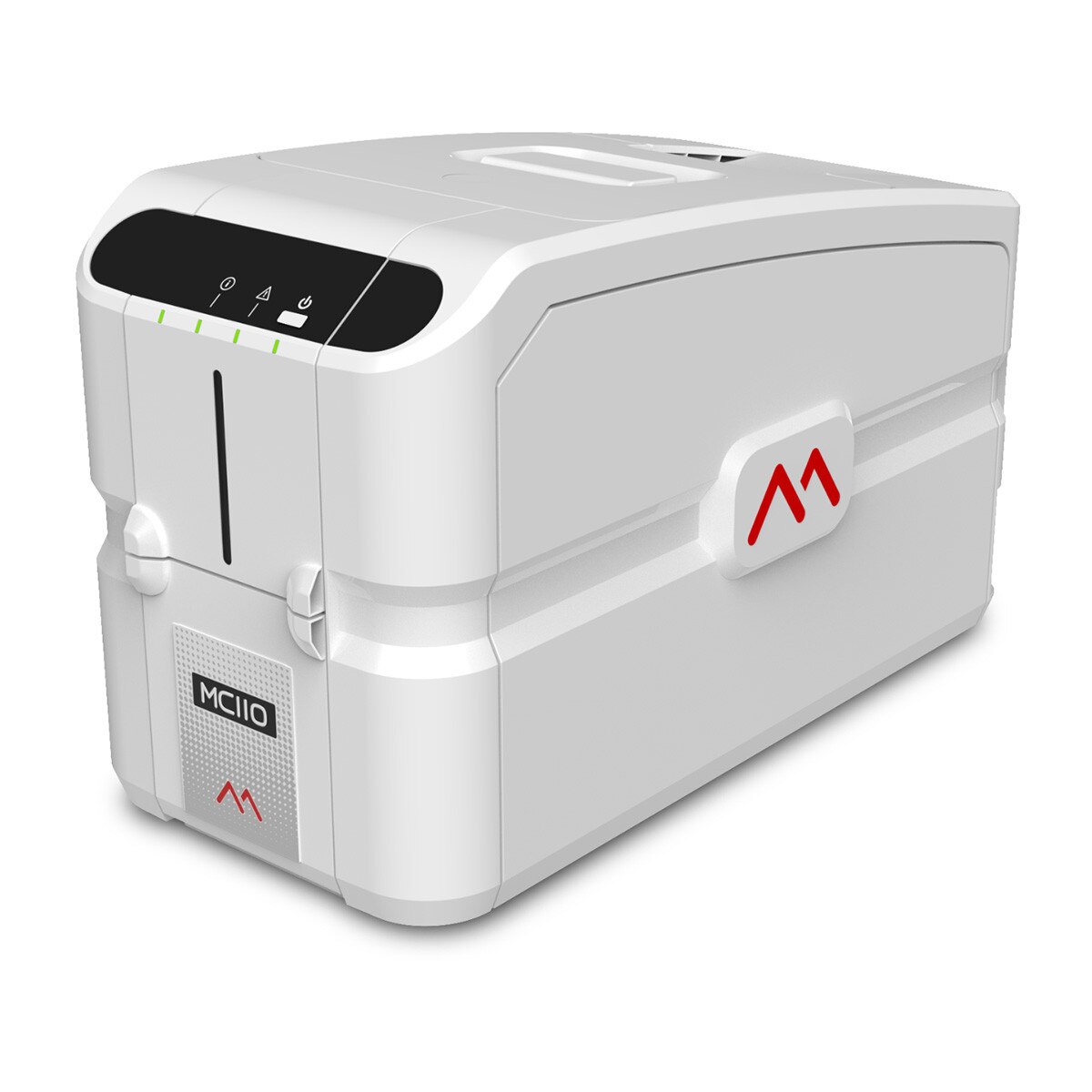

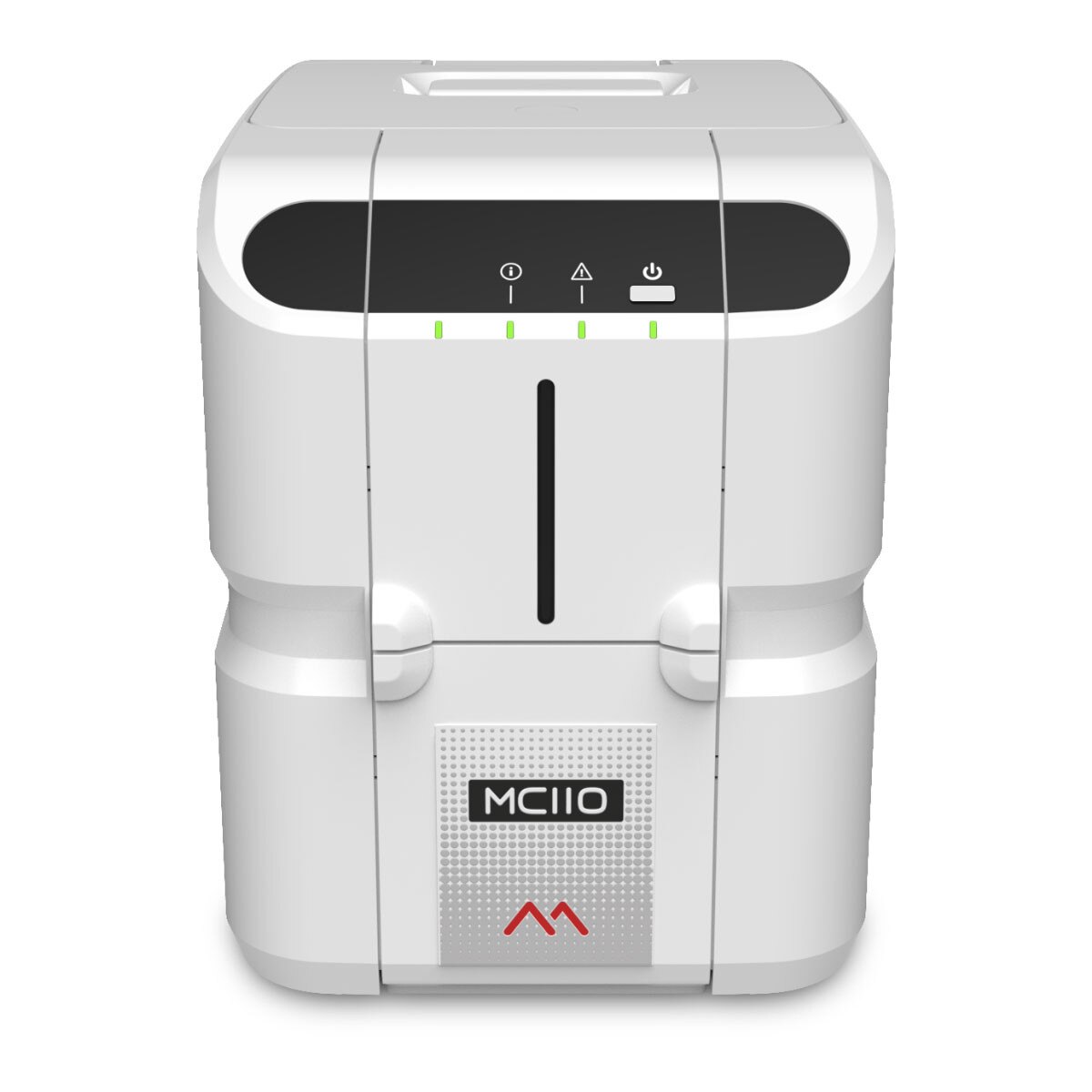

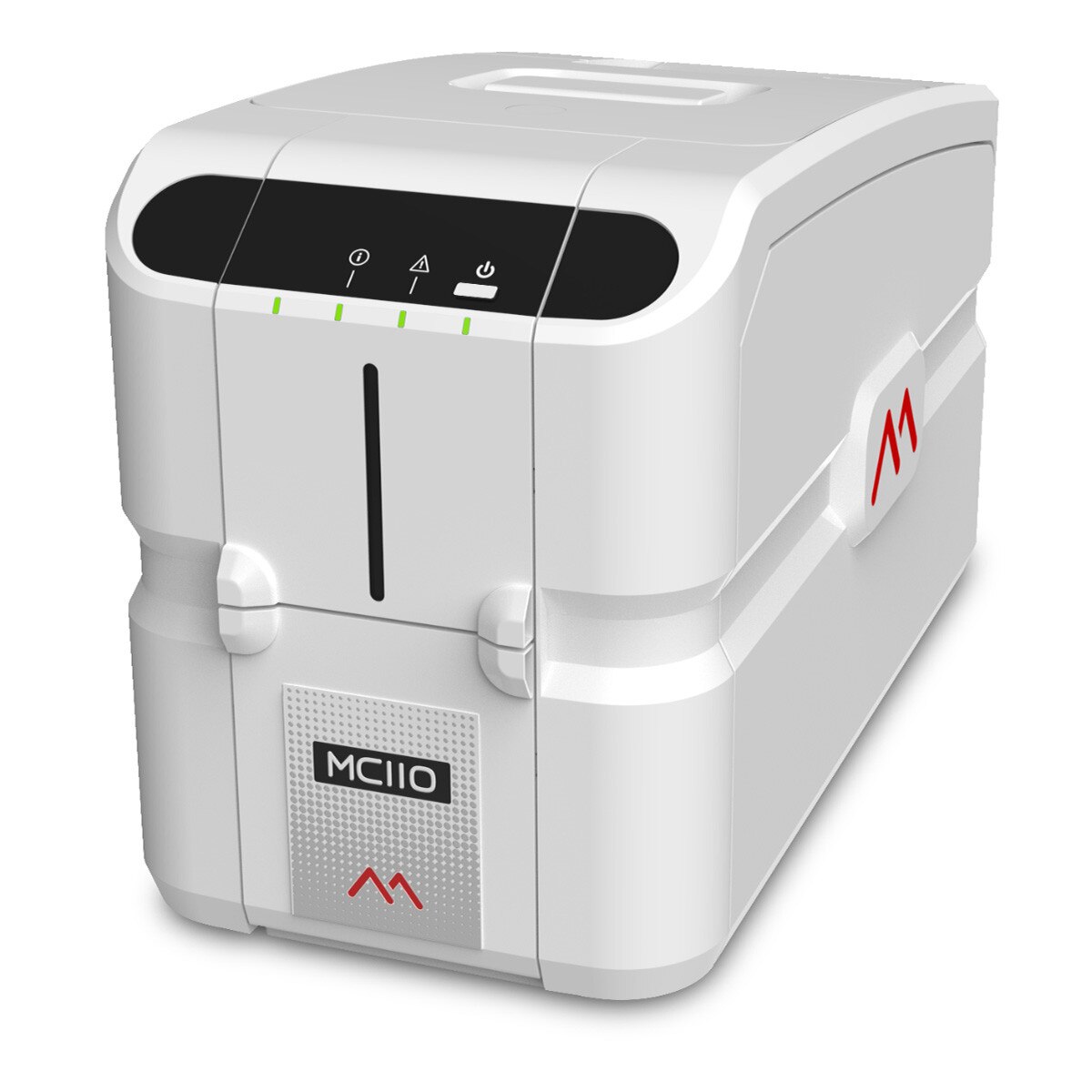

MATICA MC110 Single-Sided Direct-to-Card Printer
Details
The Matica MC110 is designed to streamline card issuance with its user-friendly, 'plug & print' operation. Ideal for in-house ID card programs, it is a popular choice for membership organizations and small to medium-sized businesses. Leveraging Matica’s reliable print engine, the MC110 consistently produces vibrant, high-quality cards. It offers flexibility with upgradable options from single-sided to dual-sided printing. It can be equipped with a contact/contactless encoder to issue smart cards for access and entry control.
Direct to Card Printing Technology
This ID card printer uses advanced “direct-to-card” technology, where ink is directly diffused onto a blank PVC or composite card through a ribbon. The print head heats up and contacts the ribbon and card in a seamless, one-step process. Direct-to-card printers are highly efficient, making them ideal for high-volume printing environments. The method ensures reliable, consistent results, producing “edge-to-edge” prints that nearly cover the entire card, with only a narrow unprinted border. This technology offers a balance of speed, quality, and cost-effectiveness, making it a smart choice for organizations with regular security or visitor management needs.
300 dpi
This ID card printer achieves a resolution of 300 dpi (dots per inch), equivalent to 11.8 dpm (dots per millimeter). DPI refers to the number of individual dots of ink the printer can place within a linear inch of the card’s surface. A higher DPI means more dots, resulting in finer detail and sharper images. At 300 dpi, this printer ensures that photos, logos, barcodes, and text are rendered with precision, producing professional-grade cards with clear, vibrant visuals. This level of detail is crucial for ID cards, where every element—from facial features to small text—needs to be easily readable and visually appealing.
Single-Sided ID Card Printing
This ID card printer is optimized for single-sided printing, focusing on efficiency and precision for projects where content is only needed on one side of the card. Its streamlined design makes it a cost-effective and straightforward solution for organizations that don’t require dual-sided printing capabilities. By dedicating its technology to one side at a time, the printer ensures consistent, high-quality output with each card, making it perfect for applications like employee IDs, membership cards, or visitor badges. Should your needs evolve to require dual-sided printing, additional passes, upgraded modules, or new equipment would be required to achieve that functionality.
Smart Card
Smart card encoding in ID card printers is the process of writing data onto the embedded chip within a smart card during the card printing process. This allows the card to store and transmit secure information, such as access credentials, personal identification, or payment details. Integrated directly into the ID card printer, the smart card encoder programs the card with the necessary data while the card is being printed, ensuring seamless production of fully personalized and secure credentials. This technology is widely used in environments requiring enhanced security, such as corporate offices, government facilities, and educational institutions.
Specifications
| Specification | Details |
|---|---|
| Print Technology | Dye-sublimation, direct-to-card, Rewritable |
| Print Resolution | 300 dpi |
| Print Area | 53.98 x 85.6mm / 3.370’’ x 2.125’’ (CR-80 cards) |
| Print Speed | 150 cph (YMCKO single-side), 700 cph (monochrome printing) |
| Print Mode | Single-sided / optional dual-sided |
| Printer Memory | 128 Mb |
| Communications Interface | USB 2.0 |
| Dimensions (HxWxD) | 256 x 202 x 405 mm / 10.6” x 7.9” x 15.9” |
| Weight | 5.9 kg, 13 lb |
| Power Supply | 220-240V/110-115V, 50-60 Hz |
| Operating Environment | Temperature: 15ºC - 40ºC, 59ºF - 104ºF Humidity: 20% - 65% (non-condensing) |
| Storage Conditions | Temperature: -5ºC to 70ºC, 23ºF to 158ºF Humidity: 20% to 70% (non-condensing) |
| Sound (ISO 7779) | Sound pressure less than 48dB (A) |
| Certifications | RoHs, CE, FCC, CQC, UL, WEEE, Proposition 65 (California, USA) |
| Warranty | 2 years (subject to the use of chromXpert® ribbons) |
| Card Specifications | |
| Input Hopper Capacity | 100 cards (0.76 mm / 30 mil thickness) |
| Output Hopper Capacity | 30 cards (front) |
| Card Thickness | 0.25 mm - 1.25 mm / 10 mil - 50 mil |
| Card Types | CR-80 PVC, PVC-C |
| Software Specifications | |
| XPS Printer Driver | Windows® (32/64bit) 7, 8.1, 10, 11, Server 2012, 2016, 2019, 2022 |
| MacOS | MacOS: from Mavericks 10.9 to Ventura 13.1 |
| Options | |
| Smart Card / Contactless Encoding | Contact PC/SC, EMV compliant Smart contact station: ISO 7816-2 ISO14443A, B, ISO15693, MIFARE®, DESFire®, HID iClass® |
