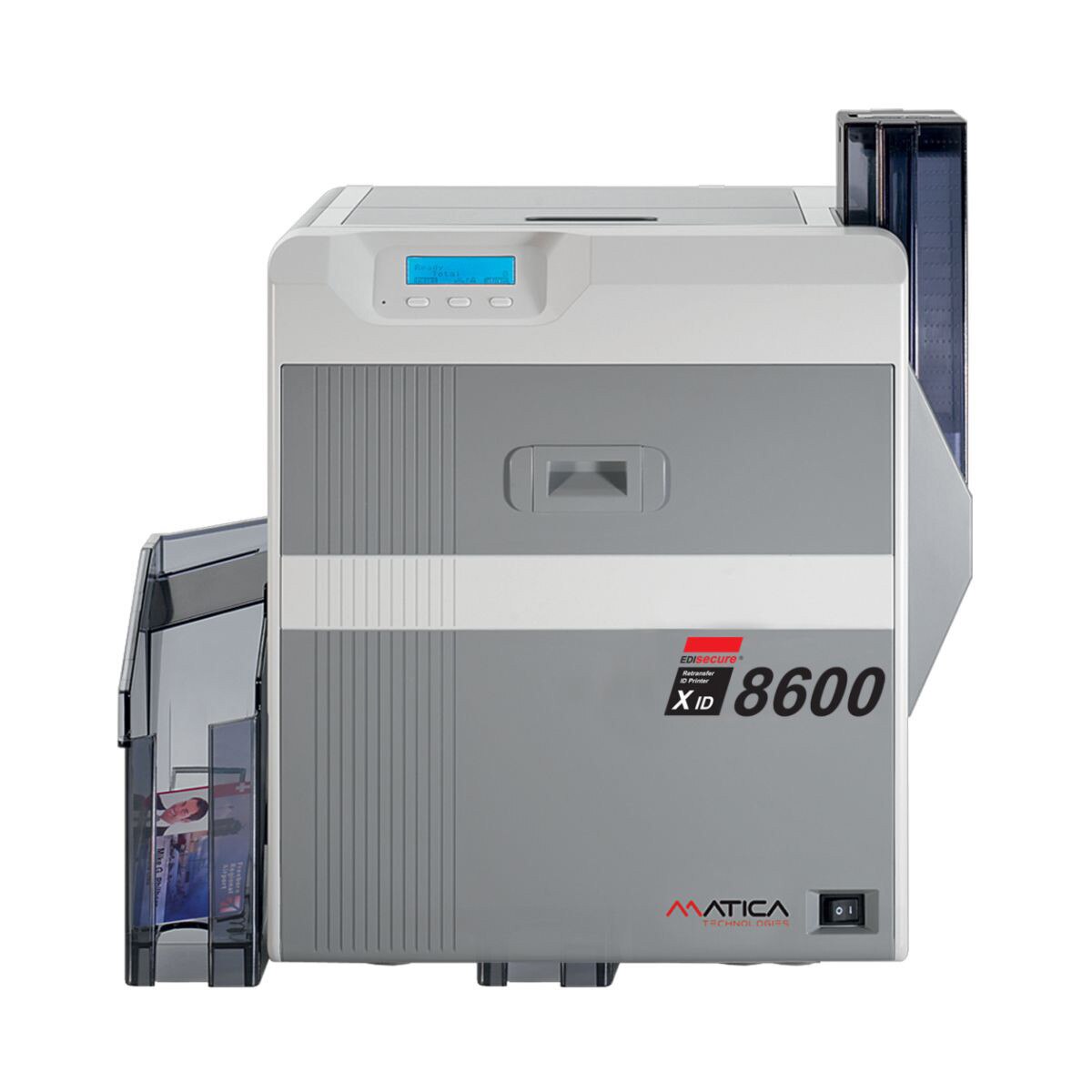

Matica XID8600 Dual-Sided Retransfer Printer
Details
The Matica XID8600 is a top-tier printer designed for the most demanding ID card programs that require high-definition and high-security printing. With a 600 dpi printhead, it delivers exceptional image quality and advanced security features like microtext and covert UV printing, enhancing the number of Visual Security Elements (VSEs) on each card. Built on the reliable XID series print engine, the XID 8600 is both durable and dependable, making it ideal for high-volume, secure government ID projects such as driver’s licenses and national ID cards. The printer supports duplex printing with its factory-fitted flipper module and includes a 200-card feeder and output hopper. It can also be customized with additional internal and external modules, including contact or contactless chip encoders and magnetic stripe encoders. For added durability and tamper resistance, the XID 8600 can be paired with single or dual-sided inline lamination modules.
Reverse Image Transfer (Retransfer) Card Printing Technology
This ID card printer uses advanced retransfer printing technology, where ink from a ribbon is first applied to a dye-receptive "transfer film." After all necessary colors are layered onto the film, it is then fused onto a blank PVC or composite card. This two-step process results in a high-definition, "over-the-edge" printed card. Because the printing process uses a flexible transfer film rather than a fixed printhead, it is perfect for producing highly detailed images (up to 600 dpi) on uneven surfaces, such as ID cards with embedded electronic chips (smart cards). Additionally, the re-transfer method extends the lifespan of the printhead by eliminating direct contact with the card material.
600 dpi
This ID card printer offers an impressive resolution of 600 dpi (dots per inch), or 23.6 dpm (dots per millimeter), delivering exceptionally vibrant and crisp prints. DPI, or dots per inch, measures the number of ink dots the printer can place within a linear inch on the card’s surface. With 600 dpi, the printer can produce double the detail compared to standard 300 dpi printers, resulting in sharper images, smoother gradients, and more precise text. This higher resolution is ideal for ID cards where the quality of fine details, such as intricate logos, microtext, and high-definition photos, is critical. The enhanced clarity and vibrancy ensure that every element on the card stands out, providing a superior level of professionalism and security.
Dual-Sided ID Card Printing
This ID card printer is built for dual-sided printing, offering the flexibility to print on both the front and back of each card. This feature is ideal for organizations that need to display more information, such as employee details on one side and company branding or security features on the other. With its advanced technology, this dual-sided printer ensures that both sides of the card are printed with the same high level of quality and precision, all in one seamless operation. This makes it a versatile and efficient choice for creating professional, full-featured ID cards, membership cards, and more, without the need for multiple printing passes or additional equipment. Whether you’re looking to enhance security, improve functionality, or simply make better use of card space, this dual-sided printer is designed to meet your needs with ease.
Magnetic Stripe Encoding
ISO Magnetic stripe encoding allows data to be encoded onto magnetic stripes embedded within plastic or composite cards. An ISO magnetic stripe encoder supports both high coercivity (HiCo) and low coercivity (LoCo) magnetic stripes, giving you flexibility depending on your specific application needs. By configuring your printer and encoder, you can store data across three distinct magnetic stripe tracks, each capable of holding different types of information. These tracks can be programmed for use in a wide range of systems, including door access control, payment processing, loyalty programs, and more. Magnetic stripe technology remains a reliable and widely used method for securely storing and transmitting data, making it a valuable feature for businesses looking to integrate with various third-party systems.
Contact Encoder
A contact encoder in an ID card printer is a specialized module that encodes data directly onto a card with a built-in chip, commonly known as a contact smart card. These cards require physical contact with a reader, meaning the chip on the card must touch the reading device to transfer or access the encoded data. Contact encoding is often used for high-security applications, such as banking, government, or access control systems, where sensitive information is stored on the chip. This encoding method ensures data security and reliable communication between the card and the system.
Contactless Encoder
A contactless encoder in an ID card printer encodes data onto cards embedded with a chip and an antenna, which communicate via radio frequency (RF). Unlike contact smart cards, contactless cards do not need to touch the reader physically. Instead, they can be read by simply holding the card close to the reader. This technology is often used for access control, payment systems, or secure identification. It offers the convenience of quick, wireless data transmission, improving both security and ease of use in environments like offices, schools, and government buildings.
Contact & Contactless Encoder
A contact and contactless encoder in an ID card printer integrates both types of encoding technologies into one device. This dual-encoder allows the printer to encode data onto both contact smart cards, which require physical contact with a reader, and contactless smart cards, which use radio frequency (RF) to transmit data without physical contact. This feature is particularly useful in environments that need to support multiple types of cards, such as secure access control systems, banking, and healthcare applications. The flexibility of using both encoding methods ensures compatibility with a wide range of systems and enhances the security and convenience of card-based operations.
Specifications
| Specification | Details |
|---|---|
| Print Technology | Dye-sublimation, retransfer |
| Print Resolution | 600 dpi |
| Print Area | ISO CR-80, 85.60 x 53.98 mm |
| Print Speed | Up to 125 cards per hour (single-sided) |
| Print Mode | Dual-sided |
| Input Hopper Capacity | 200 cards (0.76 mm / 30 mil thickness) |
| Output Hopper Capacity | 100 cards |
| Card Thickness | 0.25 mm – 1.02 mm / 10 mil – 40 mil |
| Card Types | ISO CR80, PVC, Composite PVC, PET, ABS, Polycarbonate |
| Communications Interface | USB 2.0, Ethernet |
| Printer Security | Support for Kensington® security lock |
| Printer Dimensions (HxWxD) | 343 x 322 x 360 mm / 13.5” x 12.7” x 14.2” |
| Weight | 13.9 kg / 30.6 lb |
| Power Supply | 220-240V/100-120V, 50-60 Hz |
| Operating Environment | Temperature: 15ºC - 30ºC, 59ºF - 86ºF; Humidity: 35% - 70% (non-condensing) |
| Storage Conditions | Temperature: -5ºC to -70ºC, 23ºF to 158ºF; Humidity: 20% to 70% (non-condensing) |
| Certifications | RoHs, CE, FCC, CQC, UL, WEEE, Proposition 65 (California, USA) |
| Warranty | 3 years (subject to chromXpert ribbons), Printhead: Lifetime warranty |
