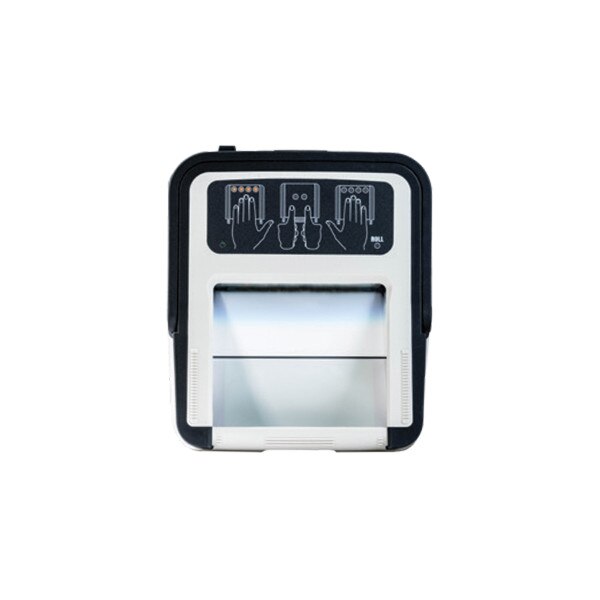

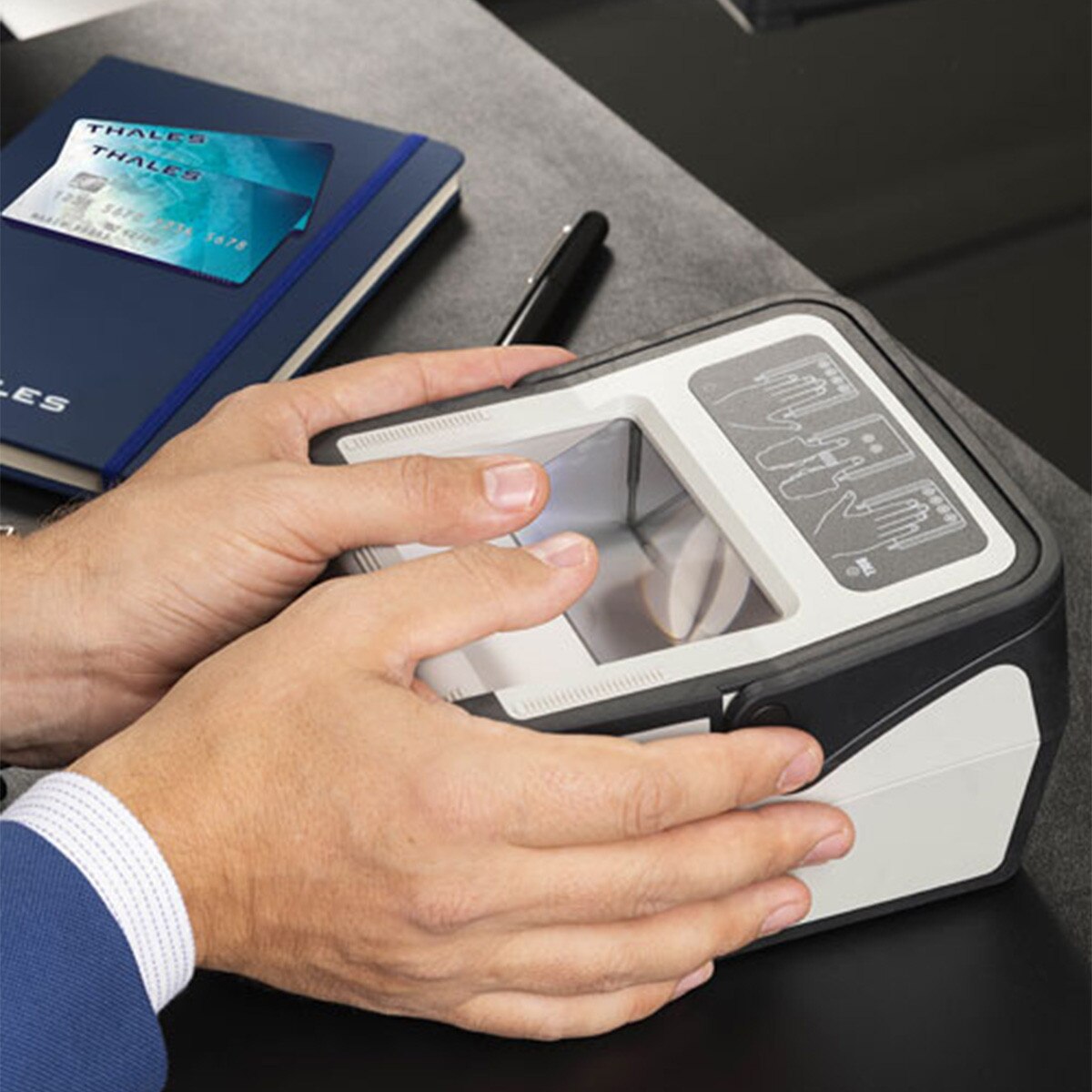

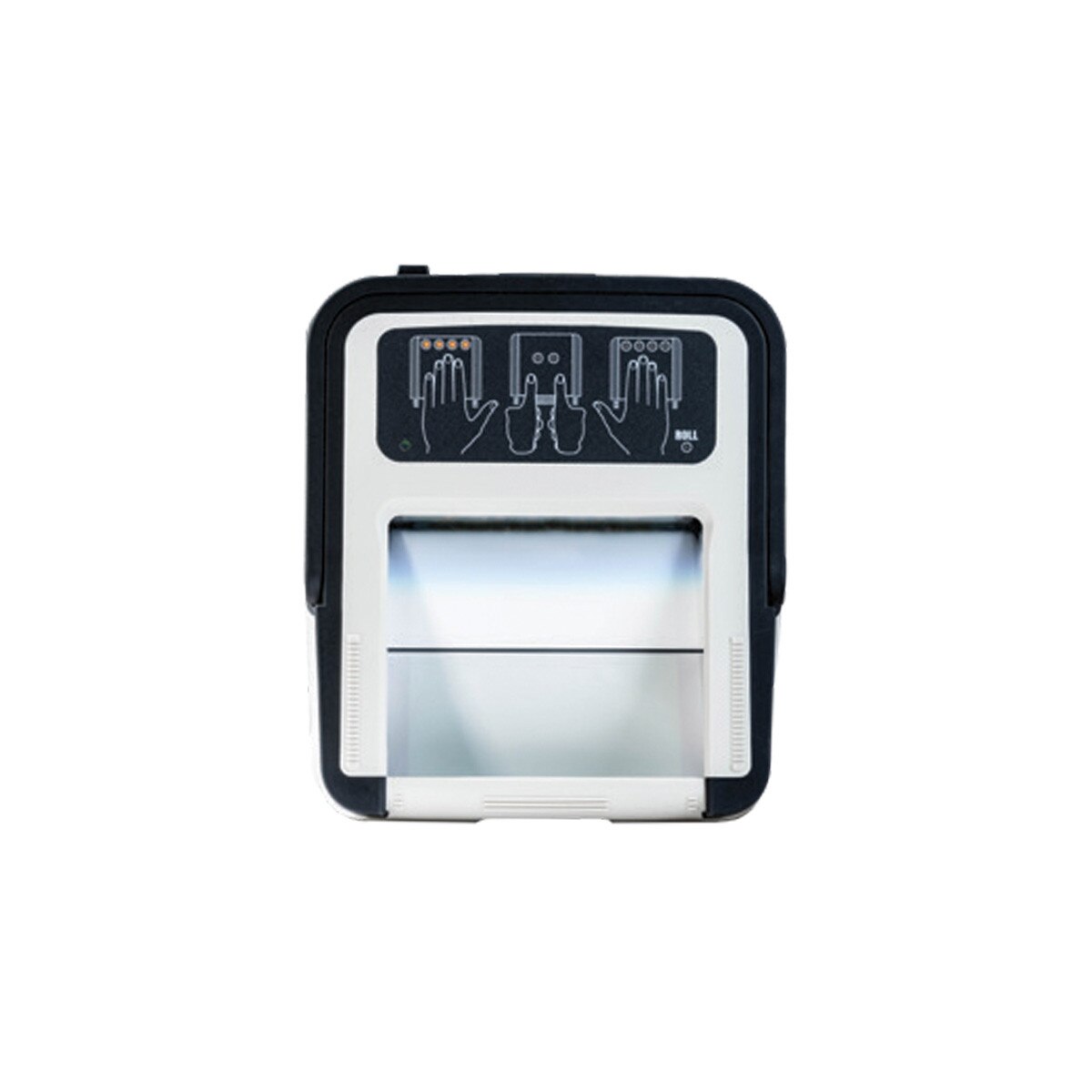

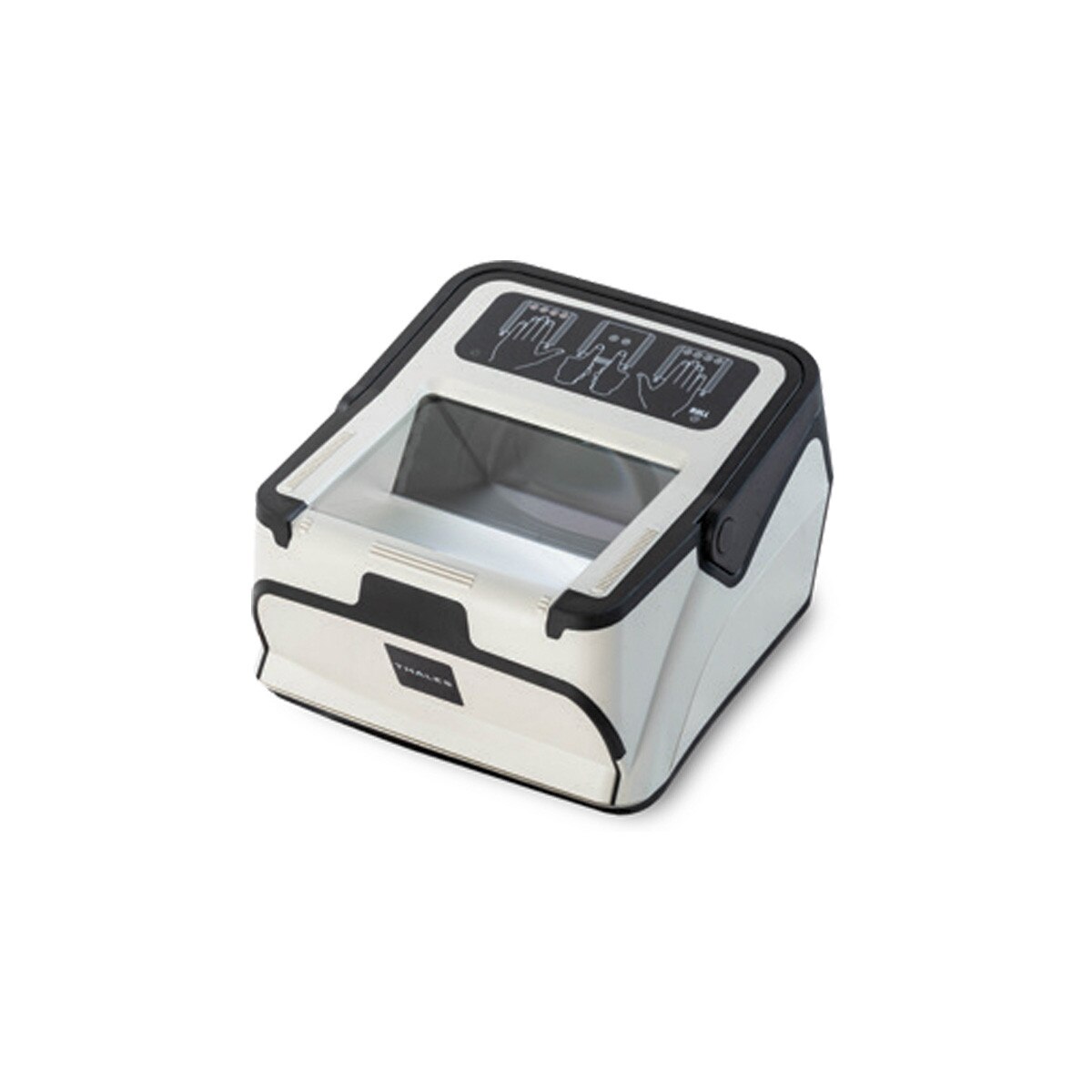

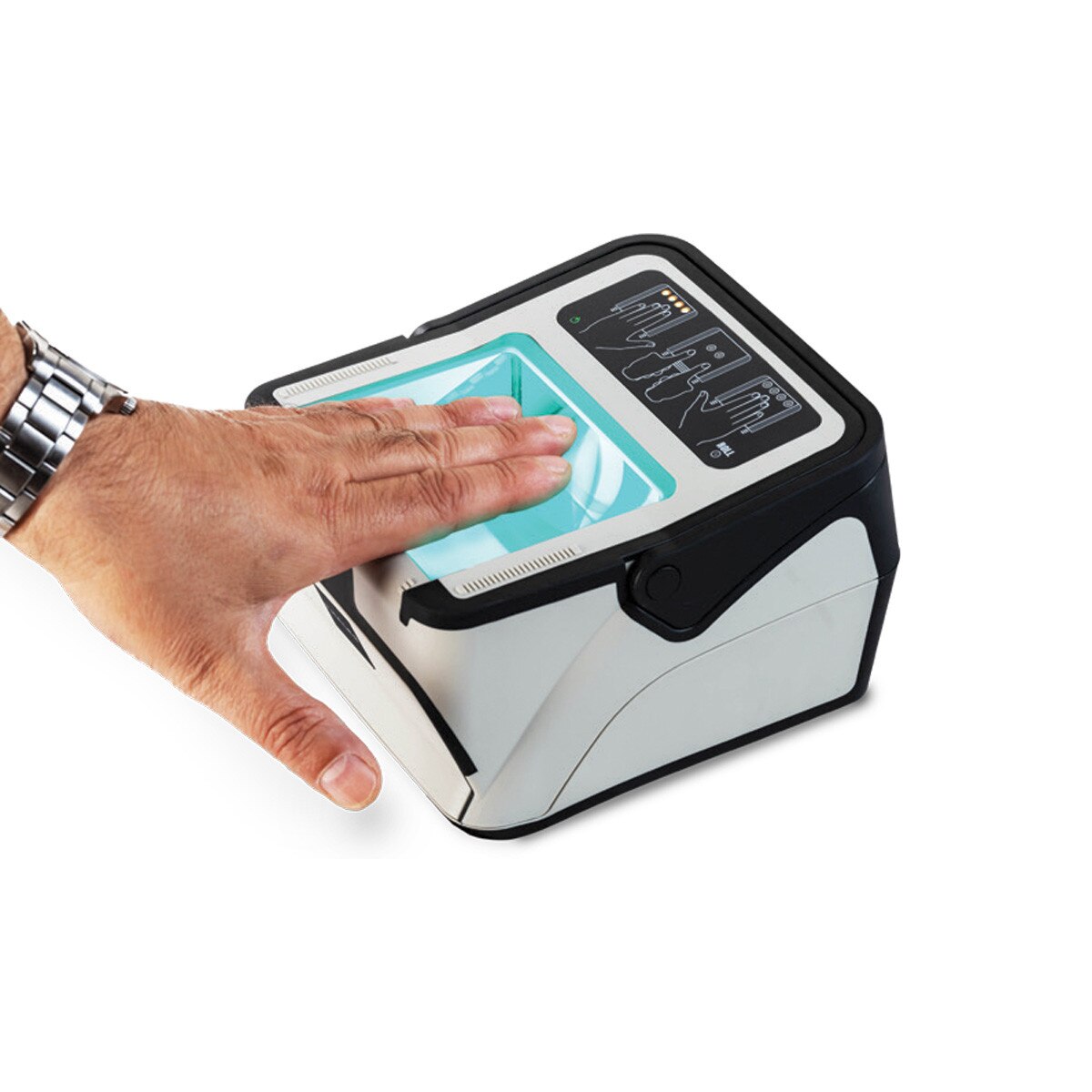

Thales CS500f Multifinger Fingerprint Scanner
Details
The Multifinger Scanner CS500f offers a superior acquisition speed and USB 3.0 technology.
It’s a compact and FBI App-F certified 10-print device suitable for all applications in need of 4-slaps and rolled acquisition. The main applications are for ID enrollment and verification, criminal background checks, and customer registration.
An ergonomic design combined with an easy-to-integrate SDK architecture makes the Multifinger Scanner CS500f the perfect choice for system integrators and solution providers. A user interface based on 12 tri-color LEDs facilitates the acquisition procedure by indicating the fingerprint(s) to be acquired and providing quality feedback, thus eliminating the necessity for skilled operators and therefore increasing workflow efficiency.
The scanner can be provided with a Fake Finger Detection Solution (software-based) in order to identify fake fingers.
- FBI IAFIS IQS Appendix F (FAP60) & Mobile ID Appendix F Certified
- MultiScan SDK, multi-OS Compatibility
- It can acquire flat and rolled fingerprints
- Patented Liveness Detection
Specifications
| Active Scanning Window | • Flat four fingers up to 3.2” x 3.0” • Two flat thumbs up to 3.2” x 3.0” • Rolled finger up to 1.6” x 1.6” – 500 dpi |
|---|---|
| Scratch Resistant Surface | At least 6H hardness |
| Interface | USB 3.0 |
| Image Quality and Formats | • FBI IAFIS IQS Appendix F & Mobile ID FAP60 certified • ANSI/NIST-ITL 1-2007/2011 ISO/IEC FCD 19794-4 • ANSI/NIST-ITL 1-2000, Interpol Implementation |
| Temperature | Storage: -20°C to +60°C Operating: 0°C to +50°C |
| Humidity | 10 to 90% (non-condensing) |
| IP Rating | IP54 |
| Dimensions (L x W x H) | 151 mm x 148 mm x 102 mm |
| Weight | 1.5 Kg |
| Supported Operating Systems | • Microsoft Windows® up to Win11 64-bit • Linux Ubuntu and Fedora (32-bit & 64-bit) • Android |
| Certifications | CE, FCC, RoHS, CB, USB-IF |
| Options | Silicone Membrane |
