Thales CS500q Palm Scanner
For Large Quantity Orders Call (877) 379-8844 or
Details

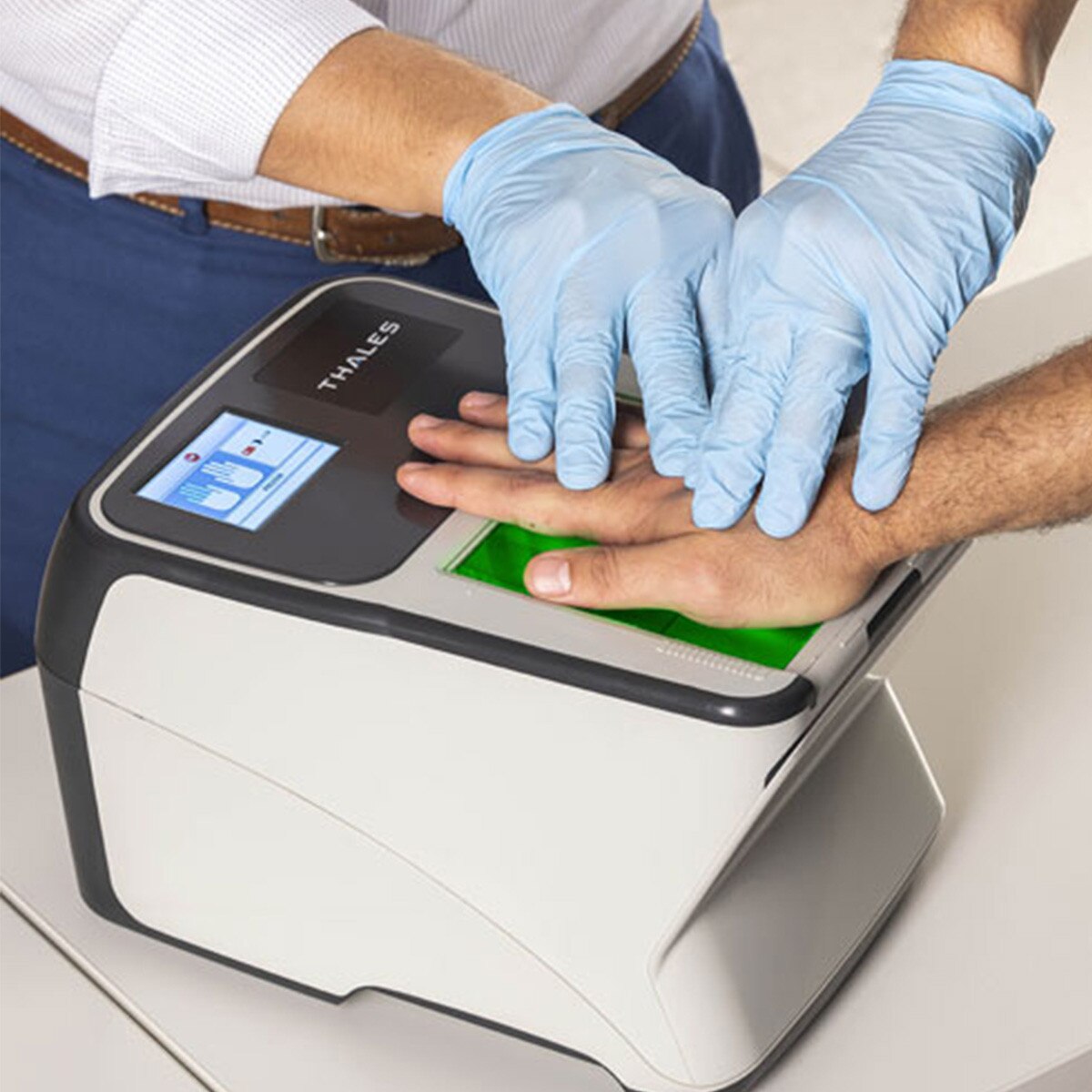

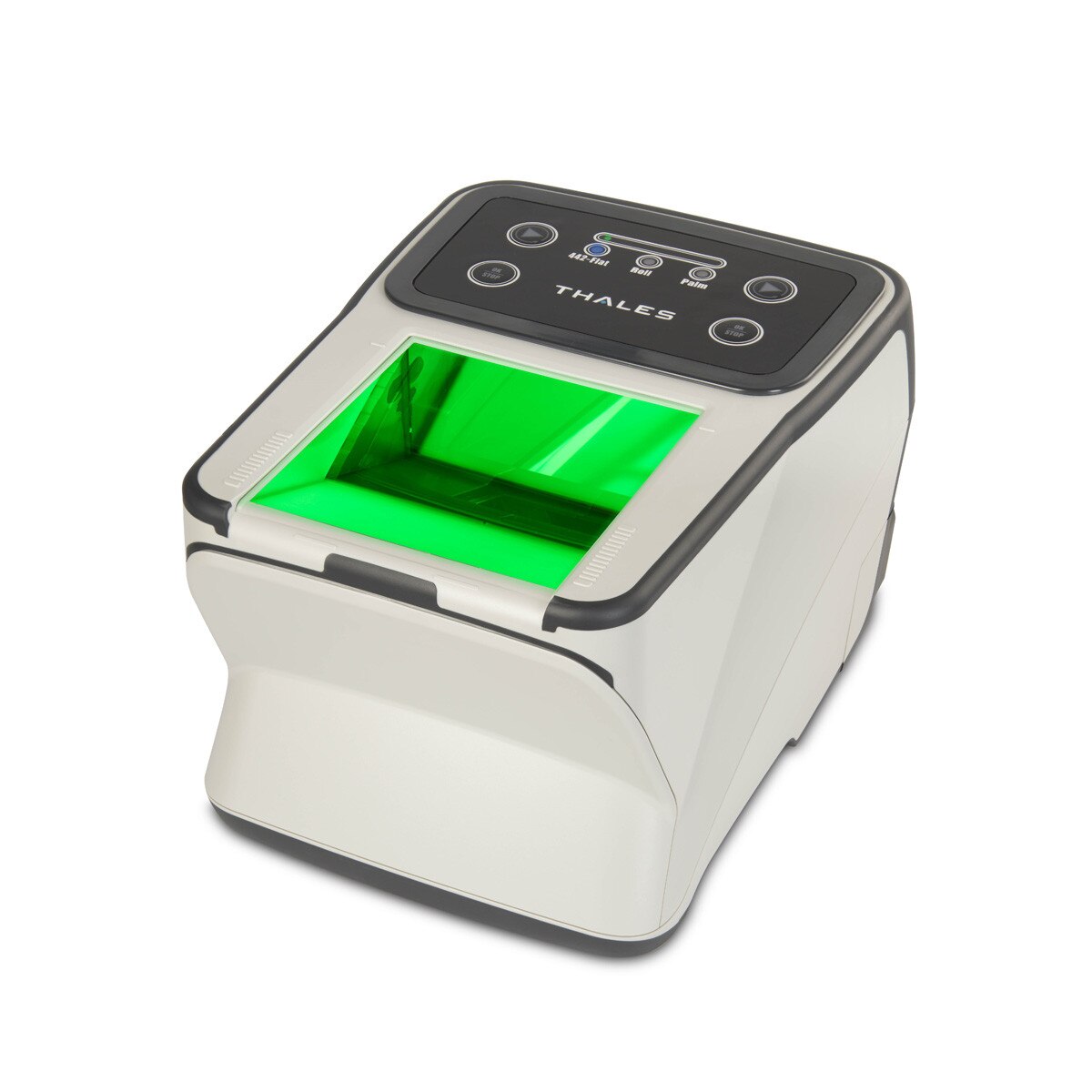

The Palm Scanner CS500q is the new device offering a superior fast acquisition speed and USB 3.0 technology. The Palm Scanner CS500q is used for law enforcement applications (police stations, prisons, refugee camps, etc). It acquires not only 10-prints, rolls, and half-palms but also all types of supplemental prints as per FBI standards: thenar (ball of palm), full finger (distal, medial, and proximal), and fingertip impressions. A feature-rich SDK for all common platforms makes the Palm Scanner CS500q the perfect choice for system integrators and solution providers. The Palm Scanner CS500q, designed with a compact footprint, can be used in a desktop setting or integrated into other systems, such as kiosks.
- FBI IAFIS IQS Appendix F Certified and Appendix P Compliant
- MultiScan SDK and Multi-OS Compatibility
- Integrated heater for best print acquisition
Specifications
| Active Scanning Window | • 4-slaps and half-palms up to 5” x 5” • Rolled thenar up to 4.5” x 3” • Flat Fingertips up to 3.2” x 3.0” • Rolled fingertips up to 1.6” x 1.6” • Image Resolution: 500 dpi – 256 gray |
|---|---|
| Interface | USB 3.0 |
| Image Quality and Formats | • FBI IAFIS IQS Appendix F certified and Appendix P compliant • ANSI/NIST-ITL 1-2007/2011, ISO/IEC FCD 19794-4 • ANSI/NIST-ITL 1-2000, Interpol Implementation |
| Temperature | Storage: -20°C to +60°C Operating: 0°C to +50°C |
| Humidity | From 10% to 90% (non-condensing) |
| Dimensions | 227 x 310 x 187 mm |
| Weight | 4.7 Kg |
| Supported Operating Systems | • Microsoft Windows up to Win11 64-bit • Linux Ubuntu and Fedora (32-bit & 64-bit) • Android |
| IP Rating | IP54 |
| Certifications | CE, FCC, RoHS |
| Power Supply | • Input 100-240 Vac, 50–60 Hz • Output 5V DC, 30W max • Powered by USB 3.0 port if heater is not active |
| Options | Silicone Membrane |
