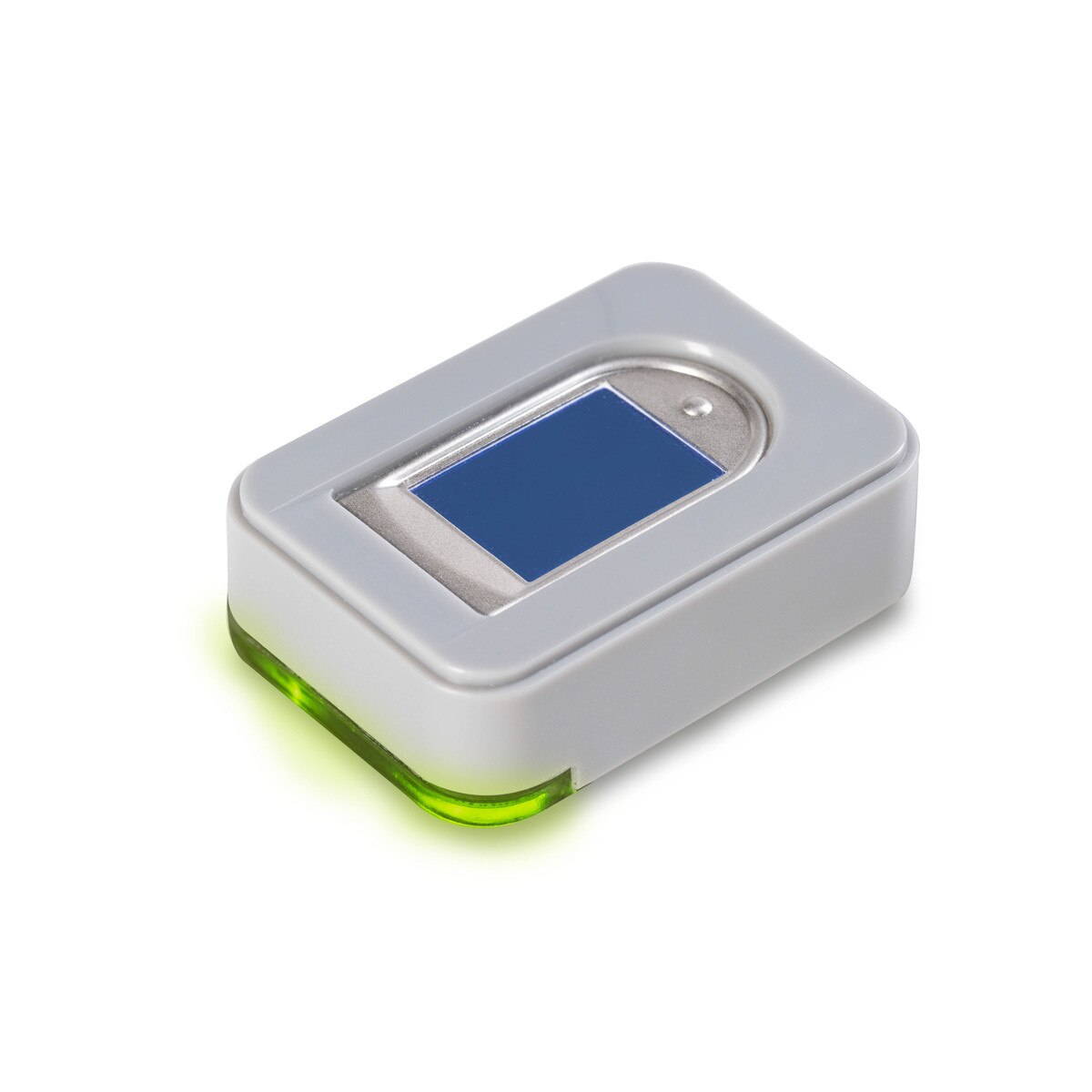

Thales CSD101i Fingerprint Scanner
Details
The Thales CSD101i is a compact, single-digit FBI/PIV certified fingerprint scanner that offers on-board processing of the captured fingerprint image, compression of the image, and encryption of the captured image and extracted minutiae. It supports industry-leading ML-based software for fake finger detection. This makes CSD101i ideal for high security applications like network biometric authentication, authenticating biometric travel documents, identity verification, and many others.
The Thales CSD101i Fingerprint Scanner is the ideal choice for all Aadhaar-based authentication/verification scenarios based on the latest L1 specifications released by UIDAI for enhanced security, where all security-critical operations are performed on the device itself.
- Easy to use: Intuitive single-finger scanner
- LFD: Patented technology for Liveness Detection
- FBI PIV Certified - FAP10
- MultiScan SDK
- Multi-OS Compatibility
- Only 43 grams (less than two ounces)
Specifications
| Sensor Type | Glass‐Based Thin Optical Touch sensor |
|---|---|
| Host OS Compatibility | • Microsoft Windows® up to Win11 64-bit • Linux Ubuntu and Fedora (32-bit & 64-bit) • Android |
| Active Platen Area | 18 x 12.8 mm |
| Platen Size | 19 x 13.8 mm |
| Image Size | 256 x 360 pixels |
| Image Resolution | 500 ppi |
| Temperature | Operating: 32° to 131° F (0° to 55° C) Storage: ‐4° to 131° F (‐20° to 55° C) |
| Humidity | Operating: 10 ‐ 90%, non‐condensing Storage: 10 ‐ 90%, non‐condensing |
| Operating Environment | Indoor / Office |
| Operating Altitude | ≤ 6,561.68 ft. (2,000 m) |
| Drop Test | No hazards after 750 mm drop |
| Dimensions (L x W x H) | 46 x 32 x 15 mm (body only) |
| Weight | 43 g |
| Interface | USB 2.0 |
| Power | 5V DC, 150mA max via USB (no external power adapter required) |
| Capture Format | Single finger flat |
| Image Capture Time | ≤ 2 seconds |
| Auto Capture | Yes |
| Colour Indicator LEDs | Yes |
| Scratch Resistant Surface | 9H Hardness |
