Thales CSD201i Cogent Single Fingerprint Scanner
Details

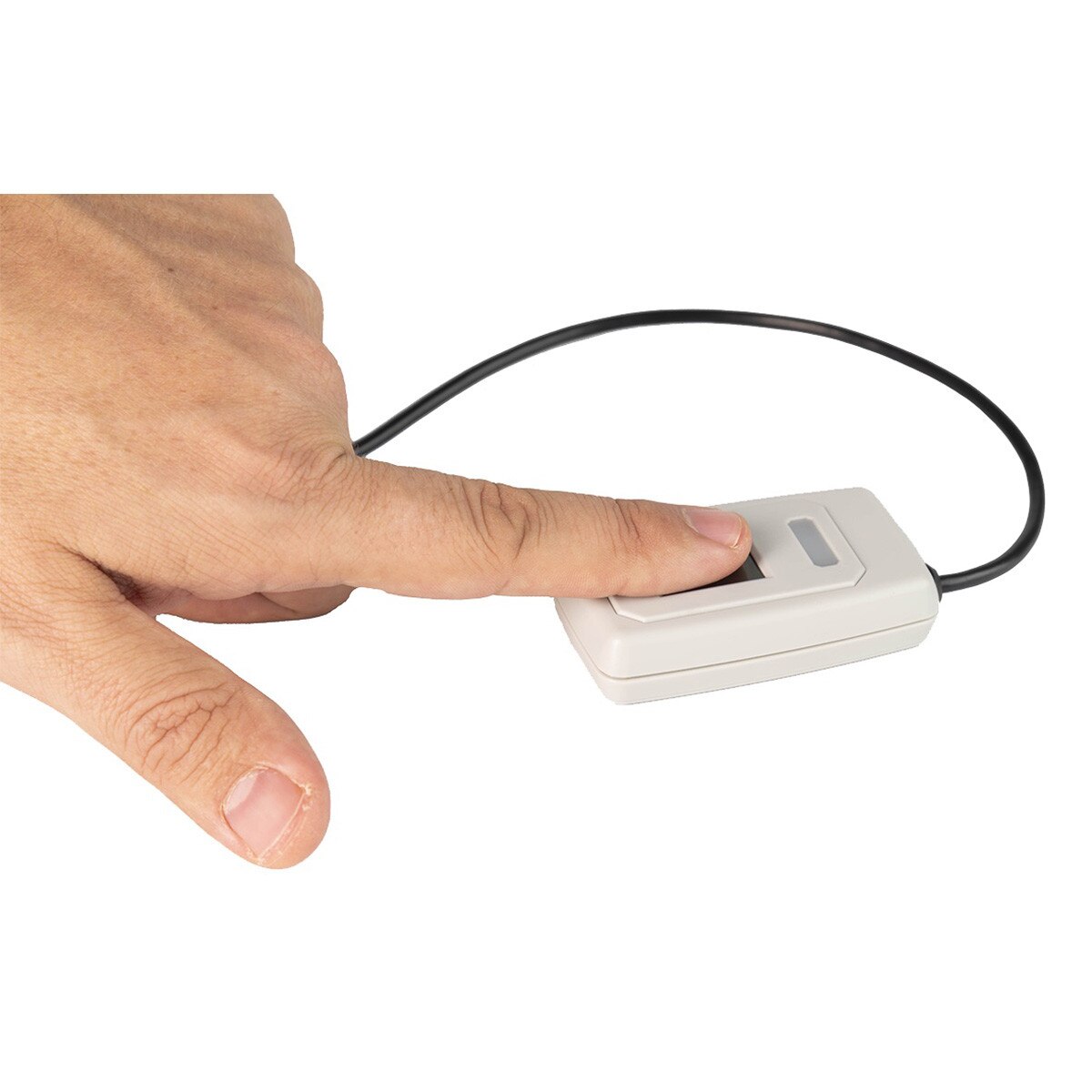

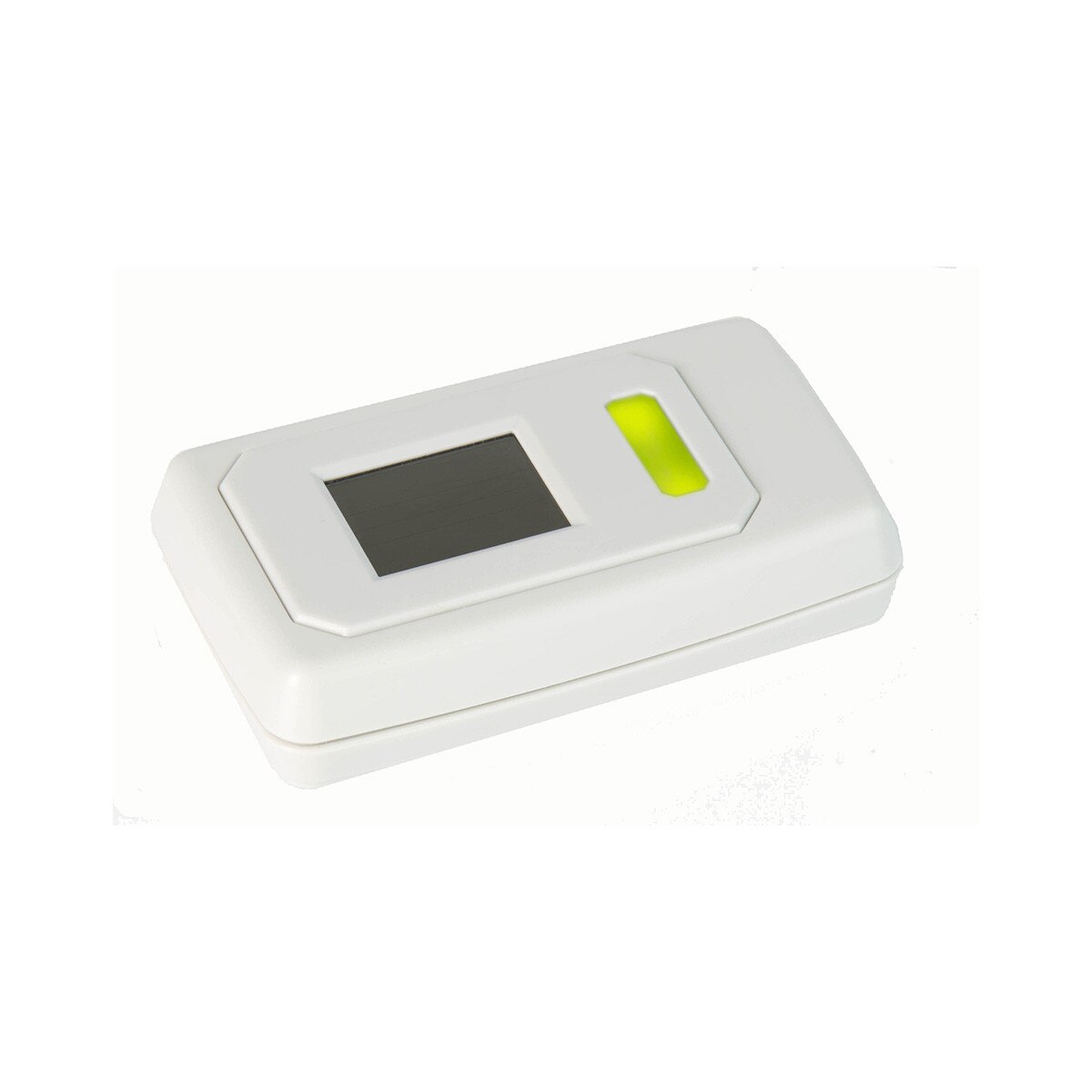

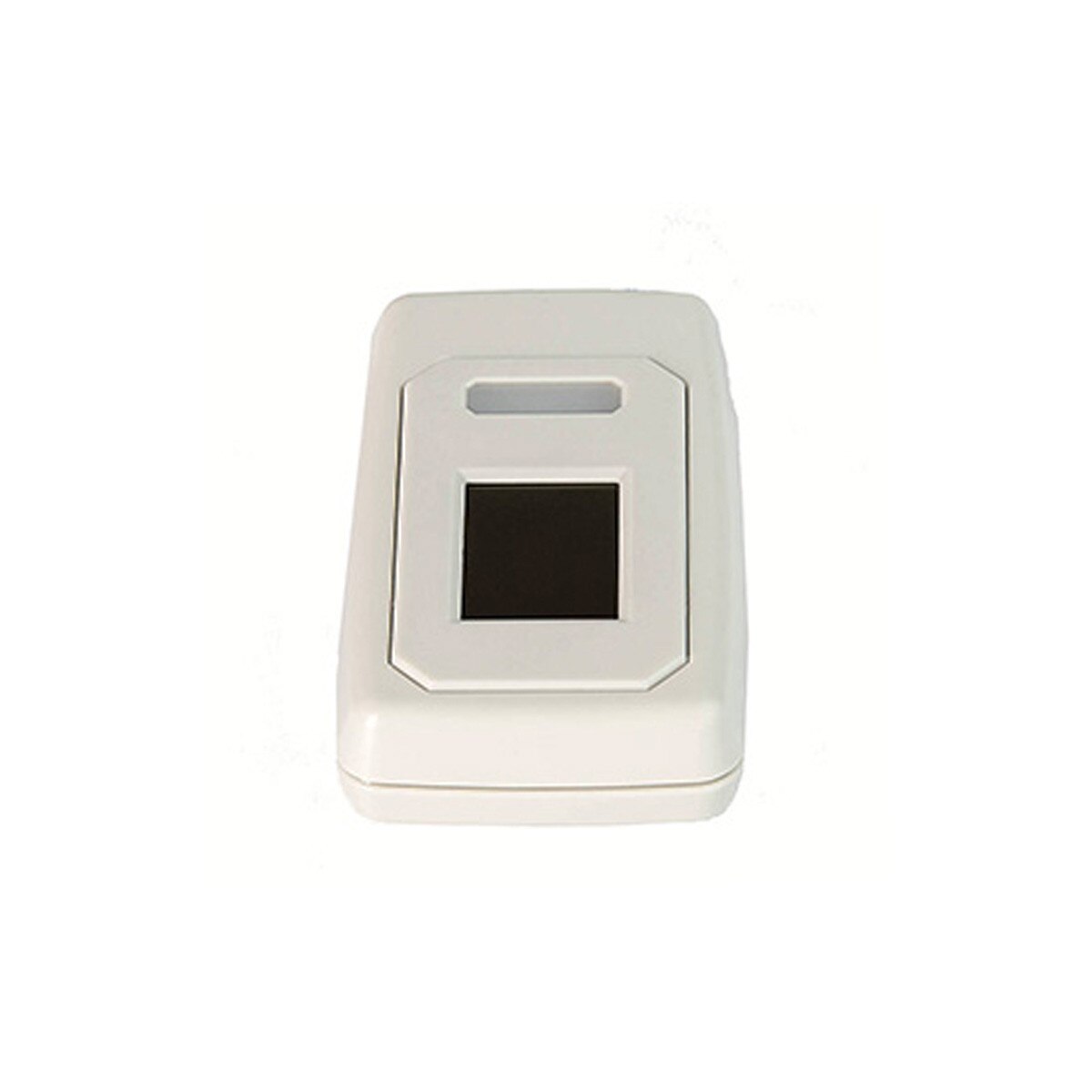

The Cogent Fingerprint Scanner CSD201 series is a single-digit fingerprint scanner available in two form factors – CSD201m as an OEM Module and CSD201i as a discrete device. Powered by USB 2.0, the connection allows for easy integration with new or existing applications. The durable, lightweight, and ergonomic design allows the CSD201 devices to be portable without compromising image quality. Bright indicator LED lights help users to operate and place their finger at the appropriate time to avoid confusion. The Cogent Fingerprint Scanner CSD201 performs on-board processing of the captured fingerprint image, as well as signing and encryption of the biometric element. It supports an anti-latent feature with an anti-smudge coating. FBI PIV-071006 Certified, it is ideal for network biometric authentication, authenticating biometric travel documents, and identity verification.
- 500 ppi resolution
- Works with dry or wet fingers
- Processes within two seconds
- MOSIP SBI 2.0 Compliant
Specifications
| Fingerprint Sensor Type | Next Active Thermal™ sensing |
|---|---|
| Host OS Compatibility | Windows® 7, 8, 10; Android; Linux |
| Scanning Area | 20.32 x 15.34 mm |
| Image Size | 300 x 400 pixels |
| Image Resolution | 500 ppi |
| Sensor Durability | 9H Hardness; Hydrophobic/Oleophobic Surface (Contact Angle ≥ 110˚) |
| Finger Touches | > 2 million touches |
| Operating Temperature | 32° to 131° F (0° to 55° C) |
| Operating Humidity | 10 - 90%, non-condensing |
| Storage Temperature | -4° to 140° F (-20° to 60° C) |
| Storage Humidity | 10 - 90%, non-condensing |
| Operating Environment | Indoor / Office |
| Operating Altitude | ≤ 6,561.68 ft. (2,000 m) |
| Drop Test | No hazards after 750 mm drop |
| Dimensions (L x W x H) | 53 x 33 x 13 mm (CSD201m); 65 x 37 x 15 mm (CSD201i) |
| Weight | 43 g (CSD201m); 51 g (CSD201i) |
| Connectivity | USB 2.0; UART (for CSD201m) |
| Power | 5V DC, 150mA max via USB (no external power adapter required) |
| Capture Format | Single finger flat |
| Image Capture Time | ≤ 2 seconds |
| Auto Capture | Yes |
| Colour Indicator LEDs for Guidance | Yes |
| ESD Protection | ± 8 kV |
