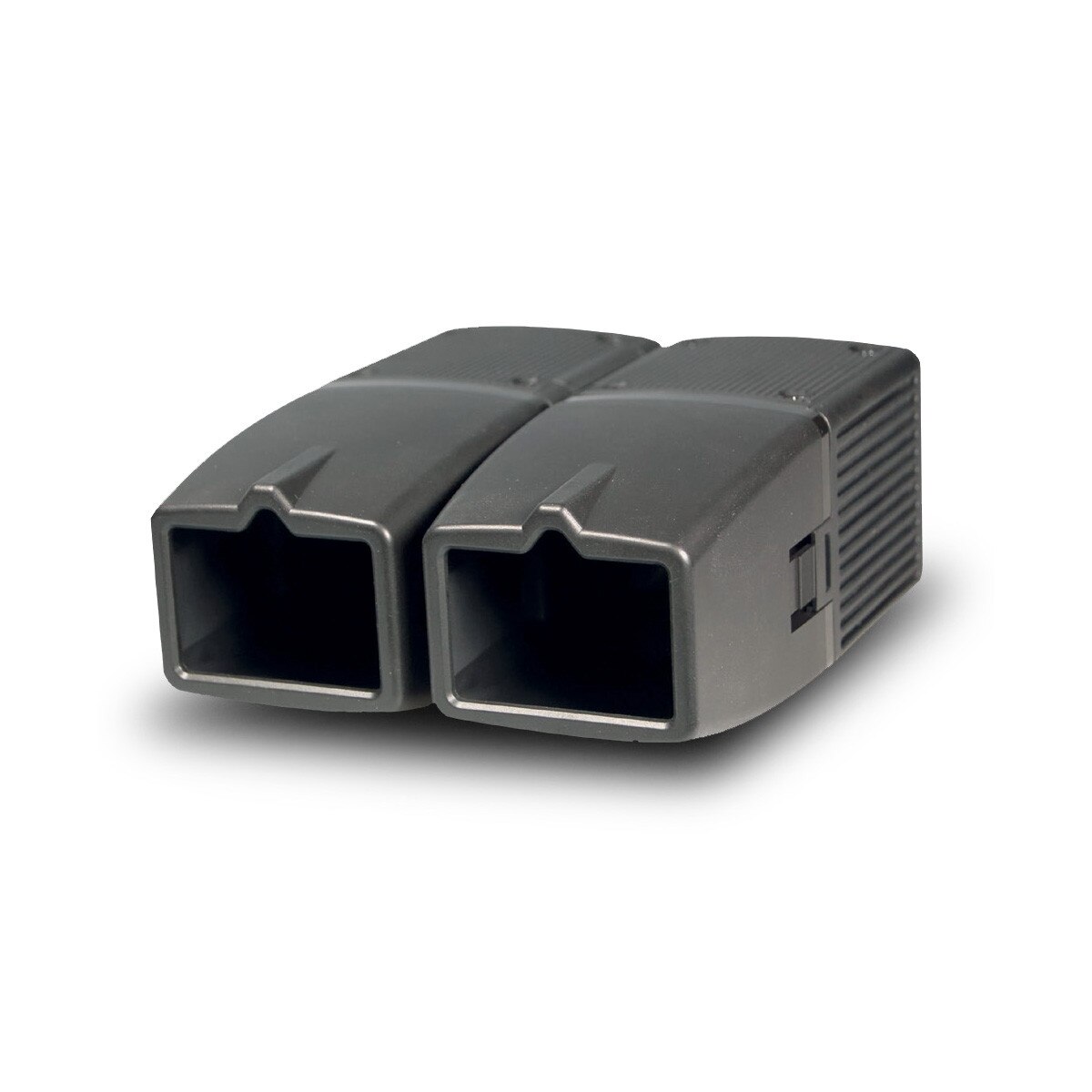

Thales Cogent Iris Scanner CIS-202
Details
The Cogent Iris Scanner CIS-202 is a high-speed iris image capture device that can simultaneously capture both irises in less than two seconds.
Compliant with NIST SAP level 40, CIS-202 has near-infrared illuminators, LED lighting, and built-in spectral imaging sensitivity control to capture light in the range of 700-900 nanometers. CIS-202 image output meets industry interchange format specifications by supporting ANSI NIST Type-17 records, with raw images conformant to ISO 19794-6 rectilinear image standards.
Enclosed in a durable and adjustable casing that meets IP 54 rating, CIS-202’s sturdy, hand-friendly goggle design is ideal for biometric applications such as civil registry enrollment, biometric document issuance, applicant identification, border control, and inmate release management.
- Simultaneous dual-iris capture
- Unaffected by ambient lighting
- Adjustable interpapillary distance
- Easy-to-clean housing
- Compliant with NIST SAP Level 40
- Compliant with the ANSI NIST and ISO image interchange format
- Meets safety standards for LED products
Specifications
| Operating Distance | 4.72 to 5.51 in. (120 to 140 mm) |
|---|---|
| Depth of Field | +/-0.295 in. (+/-7.5 mm) |
| Object Size | 1.31 x 0.98 in. (33.2 x 25 mm) |
| Iris Diameter | >210 pixels |
| Spatial Resolution | 4.0 lp/mm at 60% or higher contrast |
| Capture Mechanism | Dual Optical System for simultaneous capture of both irises |
| Illumination | Near Infra Red (NIR) |
| Weight | 1.23 lbs. (0.56 kg) |
| Dimensions | 5.59 x 4.72 x 2.52 in. (142 x 120 x 64 mm) |
| Power Input | 5 V DC via USB |
| Power Consumption | 500 mA max |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| Storage Temperature | -4° to 158° F (-20° to 70° C) |
| Humidity | 10 - 90%, non-condensing |
| Housing | PC/ABS blend |
| Interface | USB 2.0 |
