Thales Multifinger Scanner DactyScan84c
For Large Quantity Orders Call (877) 379-8844 or
Details
The Multifinger Scanner DactyScan84c is a compact, FBI App-F certified 10-print device suitable for all applications requiring 4-slaps and rolled acquisition. An ergonomic design combined with an easy-to-integrate SDK architecture makes the Multifinger Scanner DactyScan84c the perfect choice for system integrators and solution providers. It is available in an OEM version. A user interface based on 12 tri-color LEDs facilitates the acquisition procedure by indicating the fingerprint(s) to be acquired and providing quality feedback, thus eliminating the necessity for skilled operators and increasing workflow efficiency. The scanner can be provided with a Fake Finger Detection Solution (software-based) to identify fake fingers.
- Patented technology for Liveness Detection
- FBI IAFIS IQS Appendix F (FAP60) & Mobile ID Appendix F Certified
- MultiScan SDK and Multi-OS Compatibility
- Acquires both flat and rolled fingerprints
Specifications
| Active Scanning Window | • Flat four fingers up to 3.2” x 3.0” • Two flat thumbs up to 3.2” x 3.0” • Rolled finger up to 1.6” x 1.6” – 500 dpi |
|---|---|
| Scratch Resistant Surface | At least 6H hardness |
| Interface | USB 2.0 |
| Image Quality and Formats | • FBI IAFIS IQS Appendix F & Mobile ID FAP60 certified • ANSI/NIST-ITL 1-2007/2011 ISO/IEC FCD 19794-4 • ANSI/NIST-ITL 1-2000 • ANSI/NIST-ITL 1-2000 Interpol Implementation |
| Temperature | Storage: -20°C to +60°C Operating: 0°C to +50°C |
| Humidity | 10% to 90% (non-condensing) |
| IP Rating | IP54 |

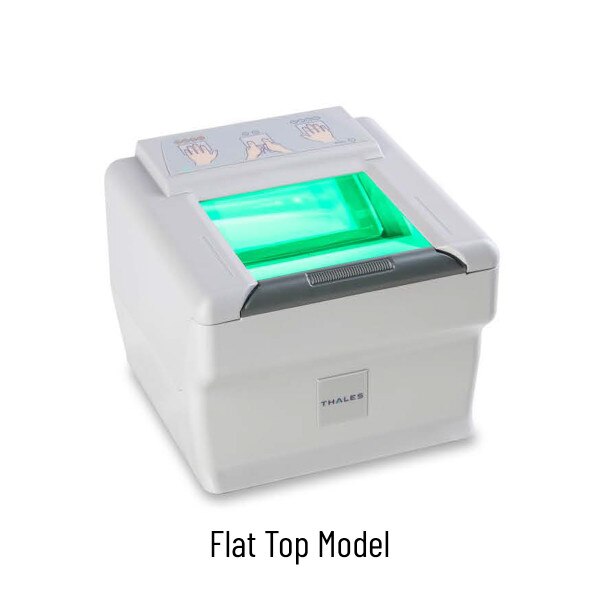

| Dimensions | • Standard top version: 148 x 152 x 148 mm • Flat top version: 148 x 152 x 121 mm |
| Weight | 1.4 Kg |
| Supported Operating Systems | • Microsoft Windows® up to Win11 64-bit • Linux Ubuntu and Fedora (32-bit & 64-bit) • Android |
| Certifications | CE, FCC, RoHS, KCC, USB-IF |
| Options | Silicone Membrane |
