Videology 24C708AF-1 Full HD FLASH-SYNC Camera
For Large Quantity Orders Call (877) 379-8844 or
Details
Videology 24C708AF-1 Camera Features
Key Features
- Full HD FLASH-SYNC for Facial Photo ID
- Precision Pixel Matched Lensing
- Larger Sensor Pixels
- REAL ID compatible
Additional Features

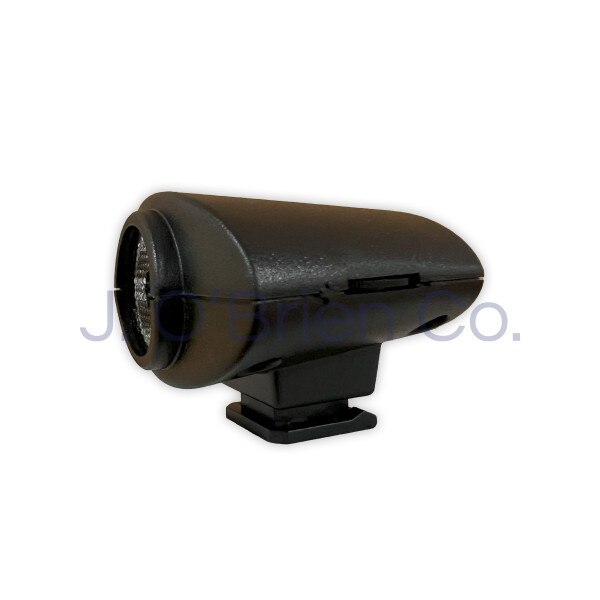

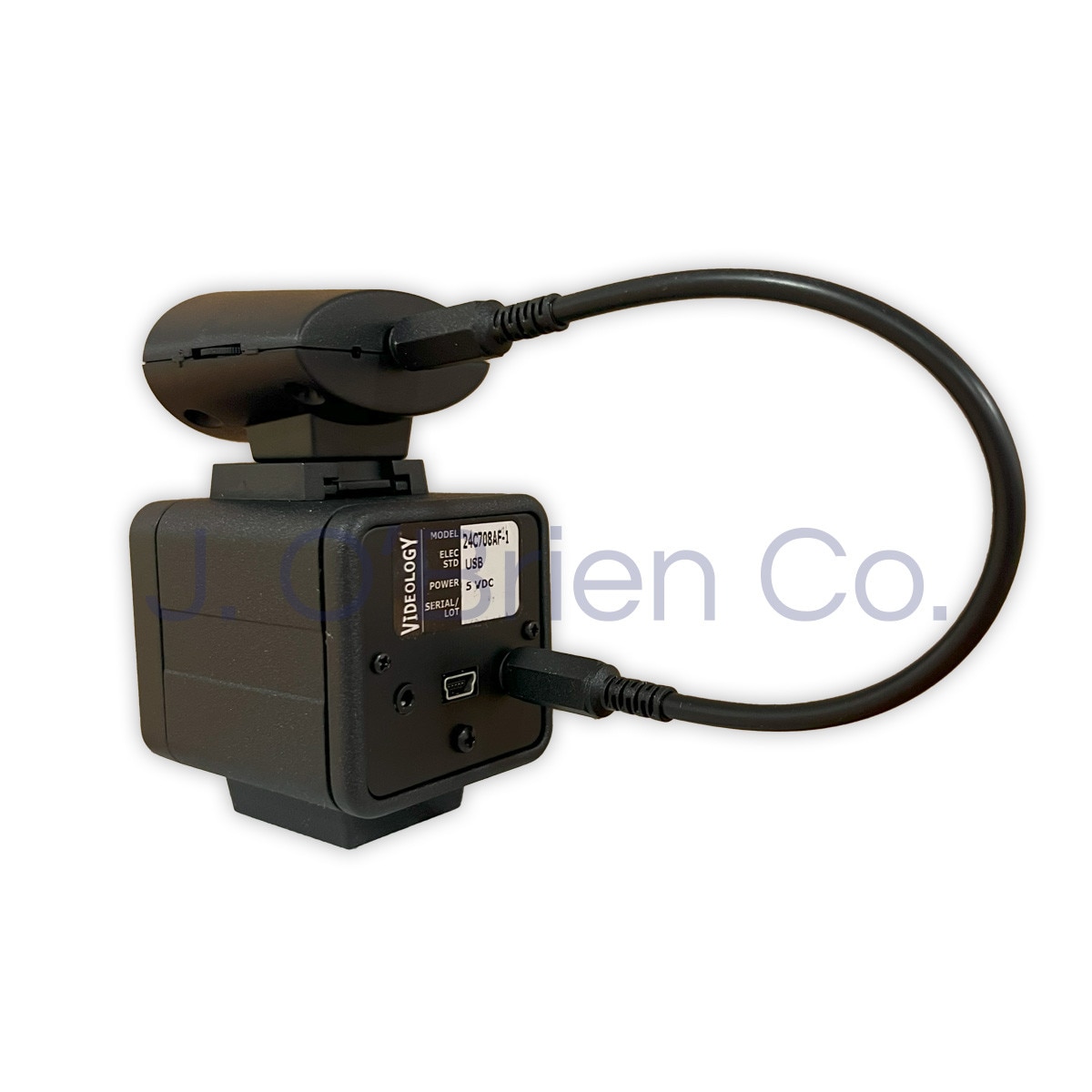

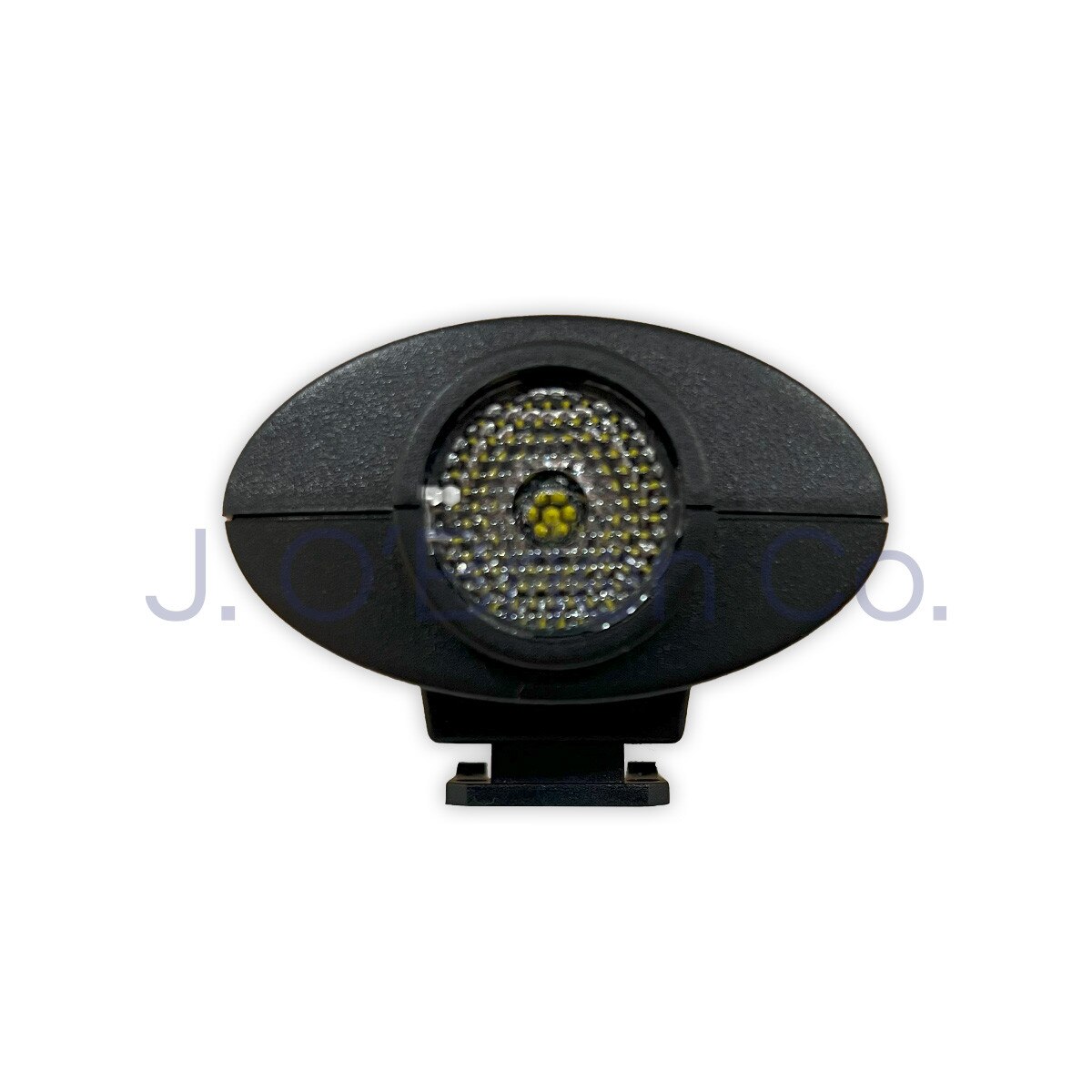

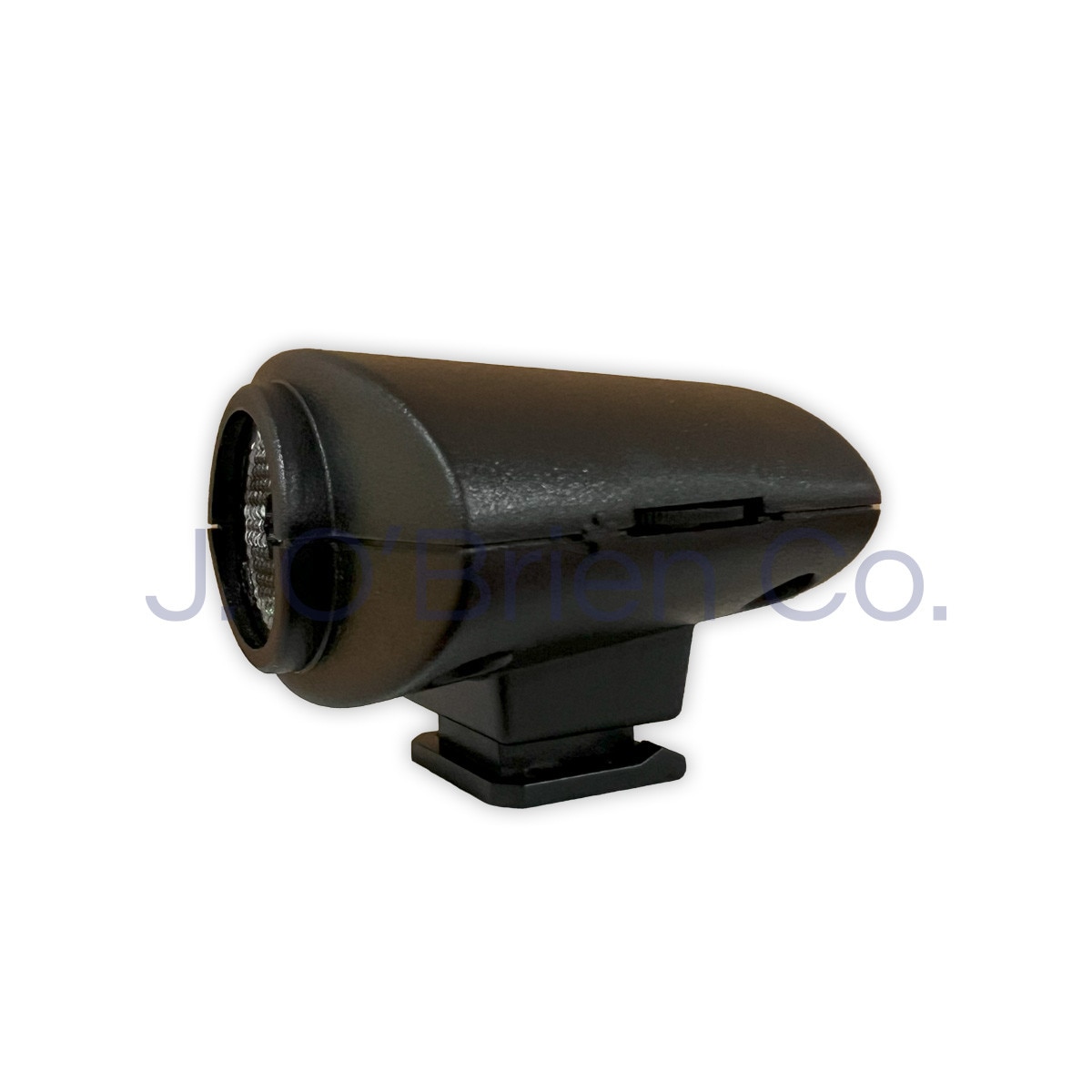

- Synchronized USB-powered LED flash for consistent high-quality images in any environment
- FHD progressive scan sensor for 1920 x 1080 still images
- Supports both Compressed (MJPEG) and Raw video (YUY2) outputs; still image capture only with MJPEG
- USB 2.0 bus provides power, camera, and flash control
- UVC compliant
- Convenient manual dial allows customized flash intensity

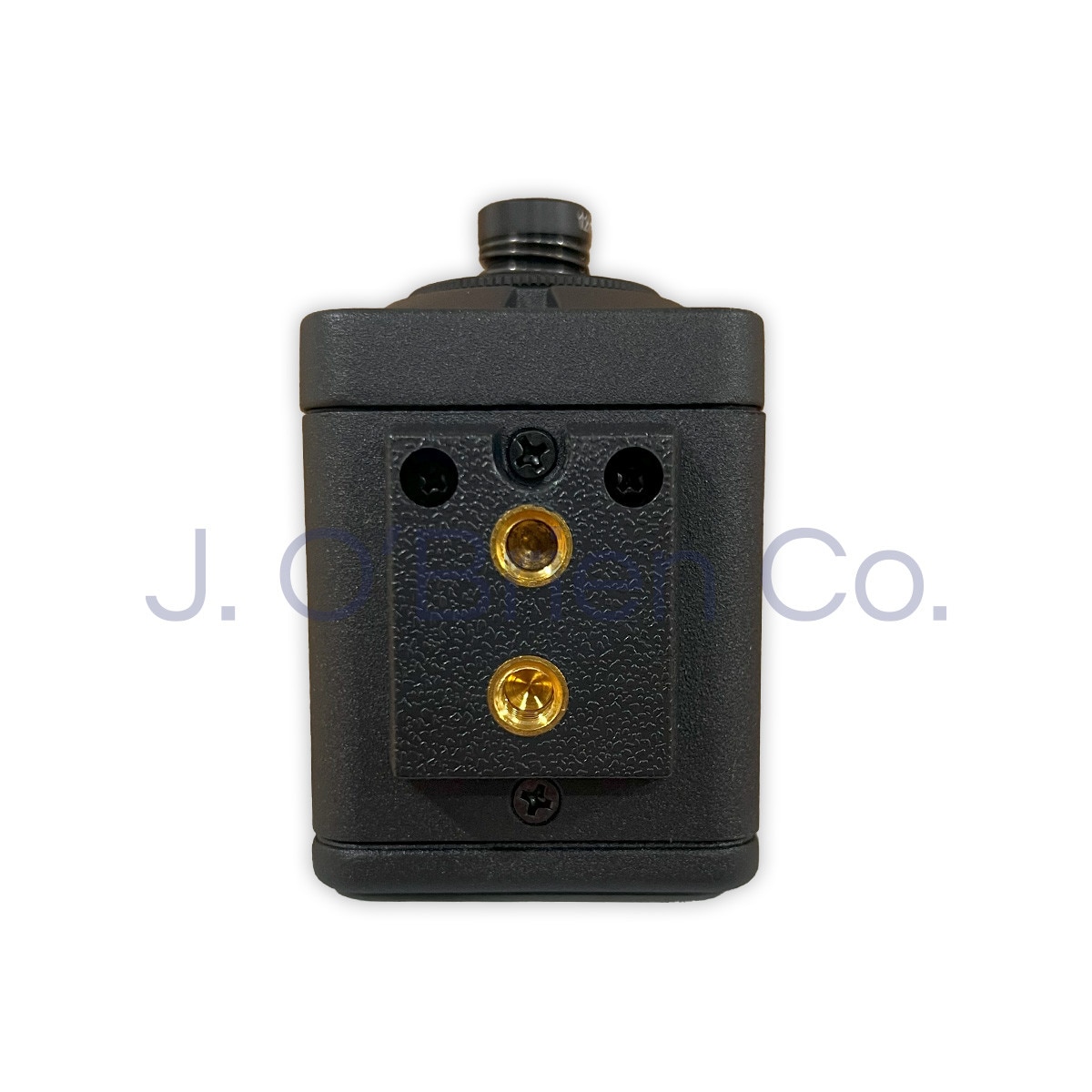

- 1/4 20 mount on base for tripod use
- Full SDK available for integration into customer applications
- TWAIN compatible
- Standards: CE, UL
- Neutral Gray backdrop is recommended
Specifications
24C708AF-1 Camera Specifications
| Specification | Details |
|---|---|
| Image Sensor Size | 1/2.7" |
| Pixel Size | 3μm x 3μm |
| Resolution and Frame Rates | MJPEG compressed: Still Capture choices: - 1920x1080 (recommended) - 1280 x 1024 - 1280x720 - 640x480 YUY2 uncompressed: Video Capture choices (Still image not possible): - 1920x1080/5fps - 1280 x 1024/10fps - 1280x720/20fps - 640x480/30fps |
| Sensitivity | 0.1LUX/F2.0 |
| Signal-to-Noise Ratio | >65dB |
| Shutter Mode | Electronic rolling shutter |
| Field of View (H x V) | 40° x 30° |
| Video Output | USB 2.0 |
| Power Supply | 5VDC via USB 2.0 bus |
| Power Consumption | <200mA |
| UVC Controls | Still Capture Selectable Flash Selectable via Videology viewer or TWAIN Focus Manual Preset for 4-8 feet |
| Image Controls | Contrast, Brightness, Hue, Resolution, Gamma, White Balance, Exposure Gain Fixed |
| Software | SFT-15003 rev 2.2.0.1 or above (Videology viewer with active features) SFT-10011 rev 2.1.26 or above (TWAIN Data Source) |
| Recommended System Requirements | Hardware: Requires USB 2.0 or USB 3 backwards compatible UVC compliant ports Operating Systems: Windows XP, 7, 8, 10 Linux 2.6.26 Android 4.0 above (potential) Mac OS 10.4.8 or above (potential) |
| Lens | 3MP M-12 Board Mount Customized precision 12mm focal length with high uniformity, MTF matched to sensor. Depth of Field optimized for facial still image capture (4-8 feet range). Mechanical preset selectors to extend this range are in design for release by July, 2021 |
| Environmental | Operating Temperature: -15°C - 55°C (5°F-131°F) |
| Mechanical | Dimensions W x H x D: 50mm x 100mm x 74mm (with flash and no lens) Weight: 154g |

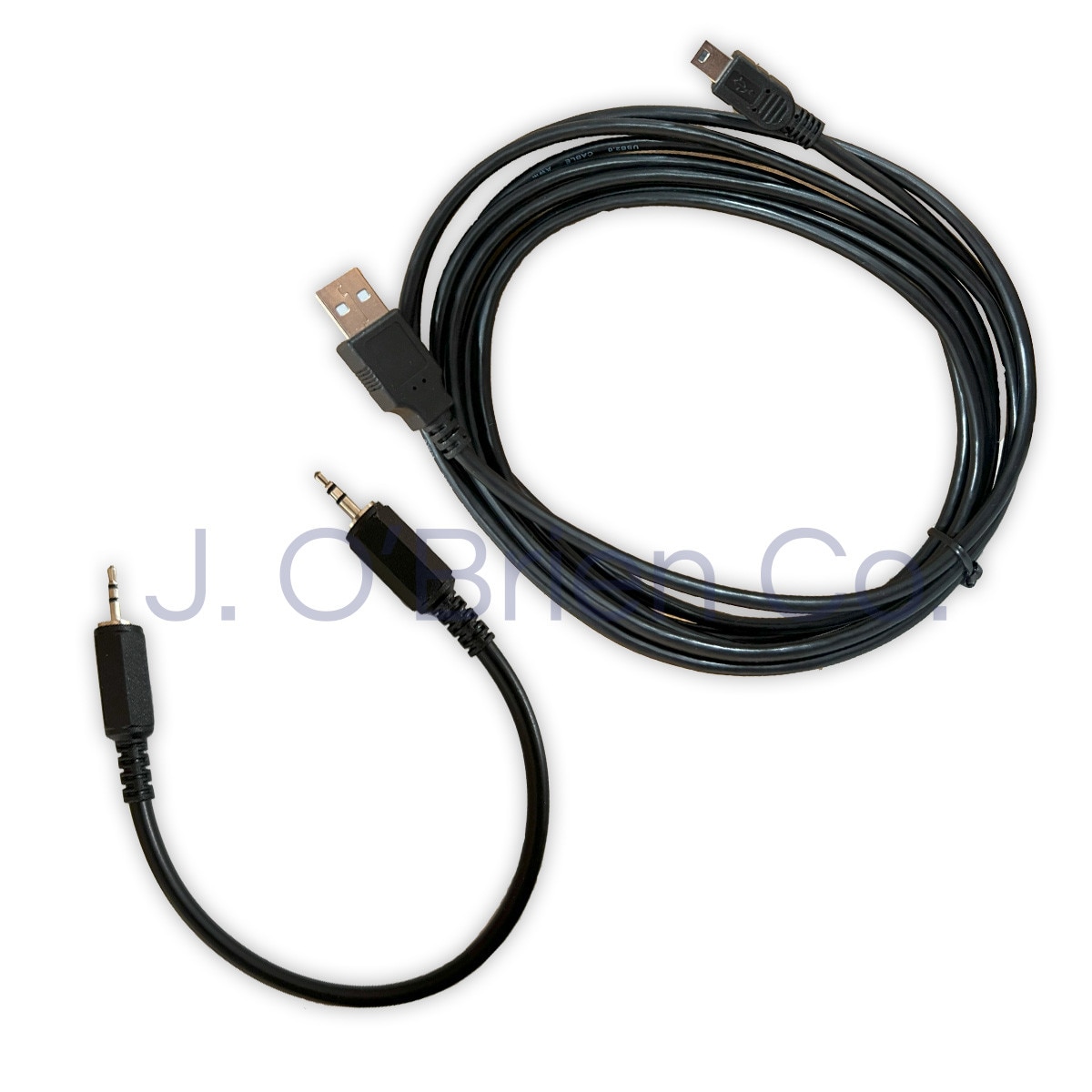

| Included Cables | 60C1138 - 2.5mm stereo (6” plug to plug) 60C1147 - USB 2.0 A to mini B cable (10ft) |
| Included Tripod Mount | 1/4 20 mount for easy mounting capability |
| Standards | CE, UL |
