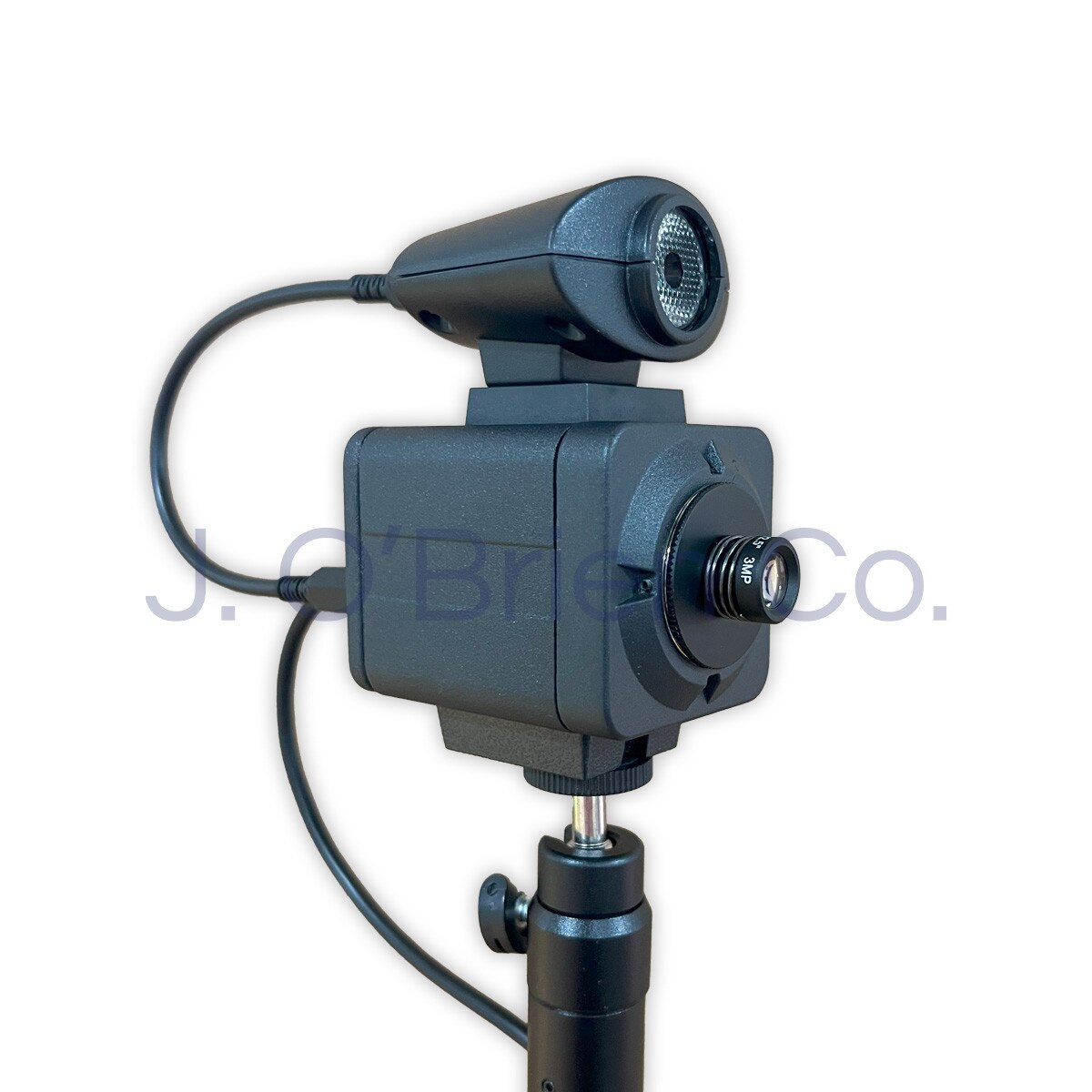

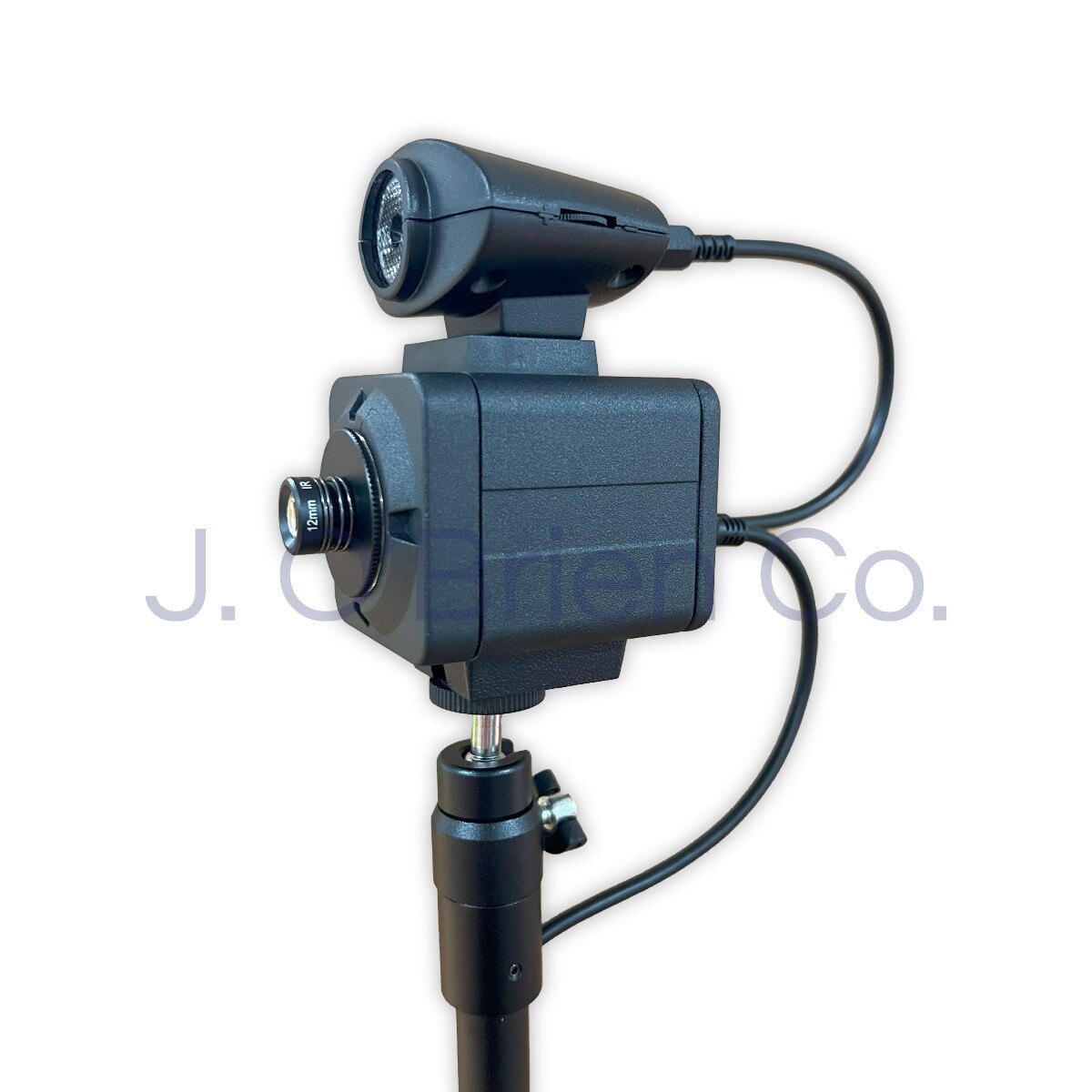

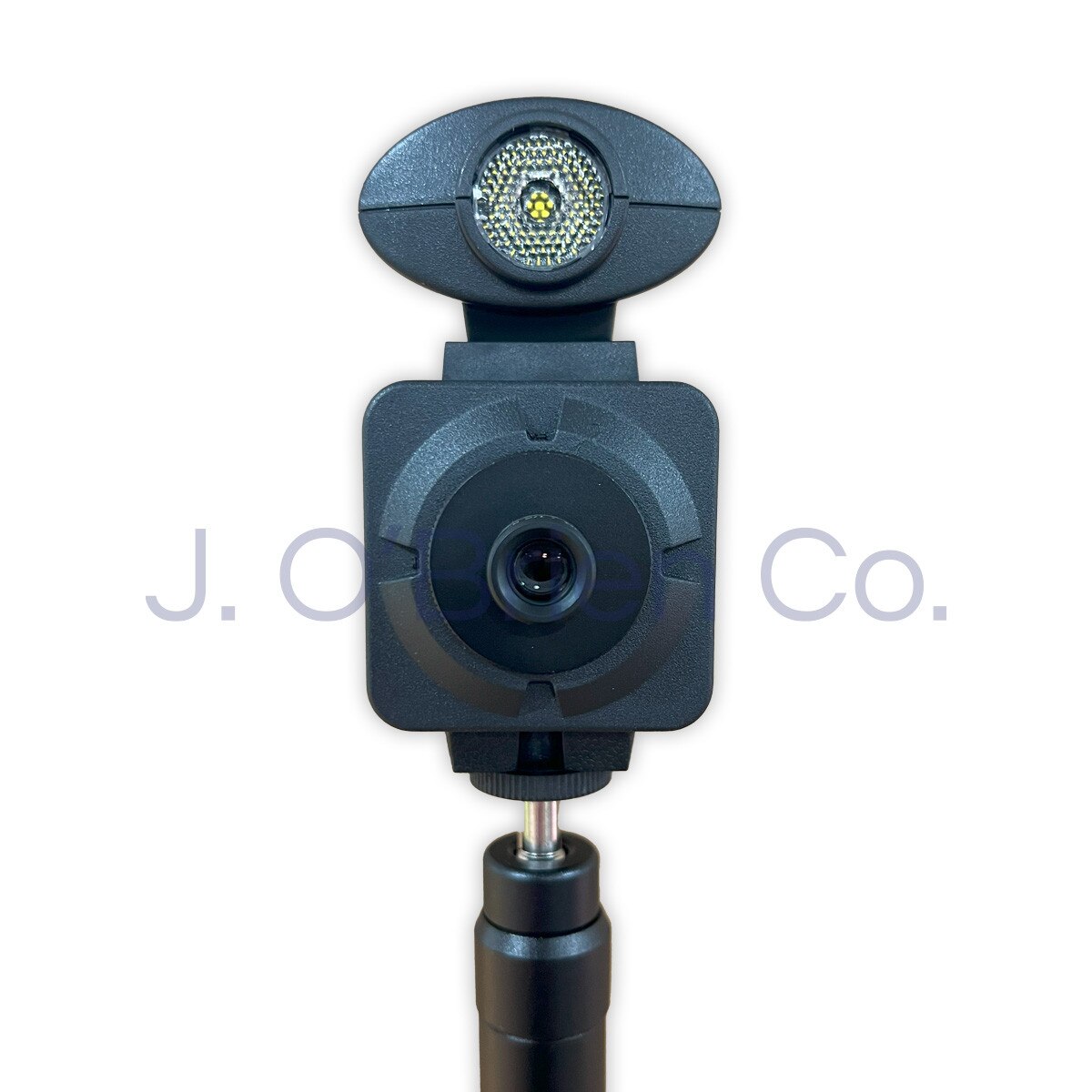

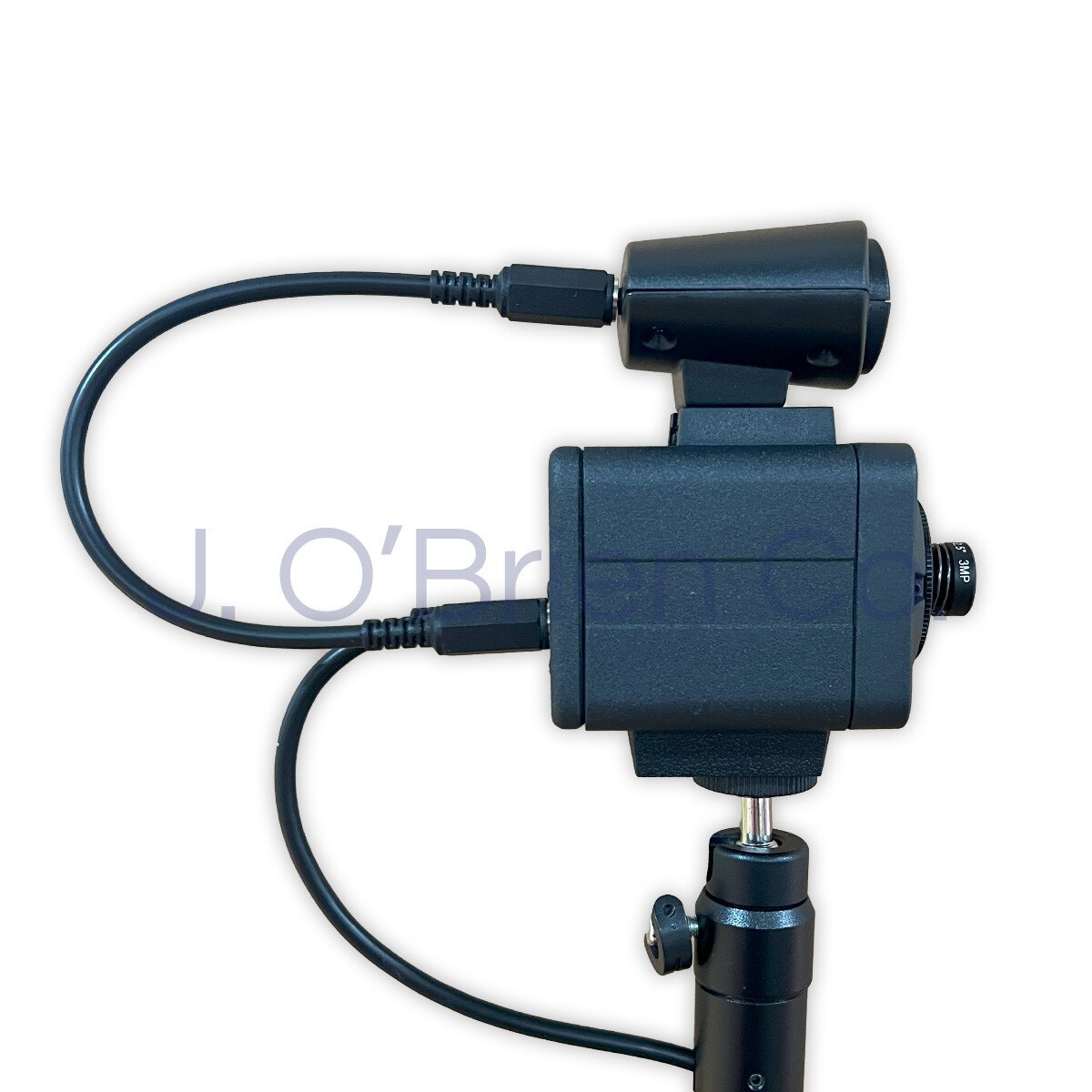

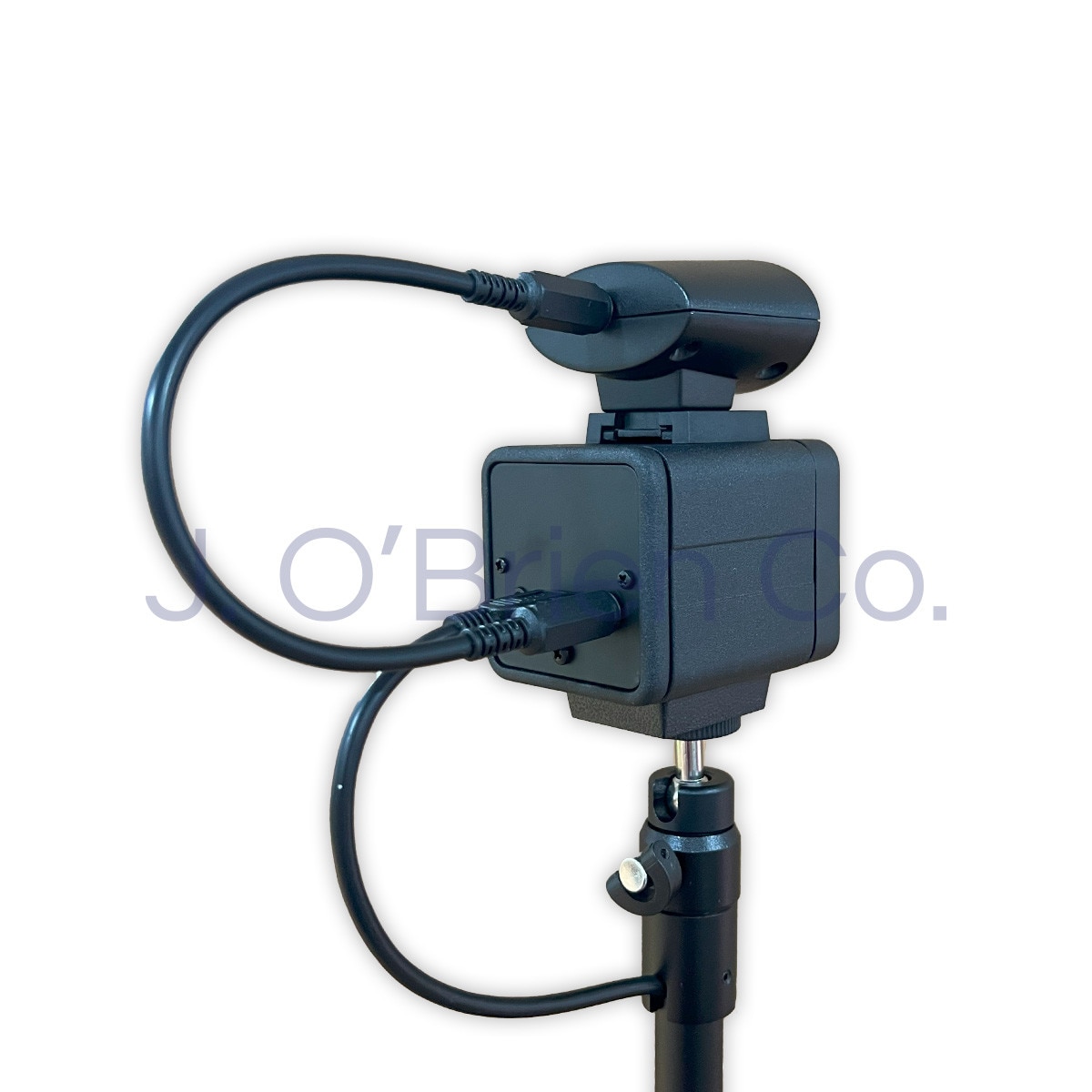

Videology 24C708AF-SYS-1 Full HD FLASH-SYNC Camera with Stand

(0)No Reviews yet
SKU: 24C708AF-SYS-1
$664.00 each
Back

Details

24C708AF-SYS-1 Camera System Features

Key Features

  • Full HD FLASH-SYNC for Facial Photo ID System
  • Precision Pixel Matched Lensing
  • Larger Sensor Pixels
  • REAL ID compatible

Additional Features

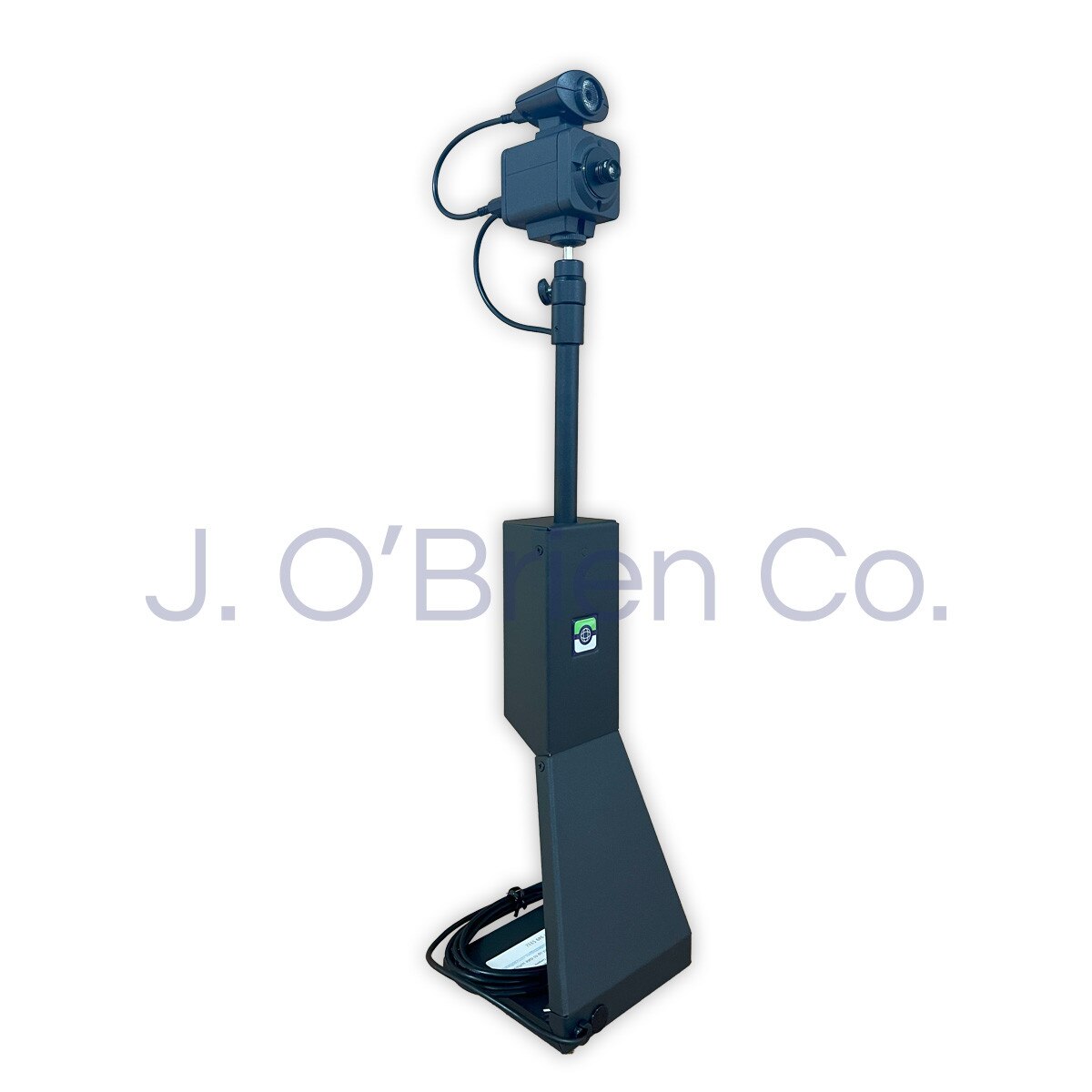

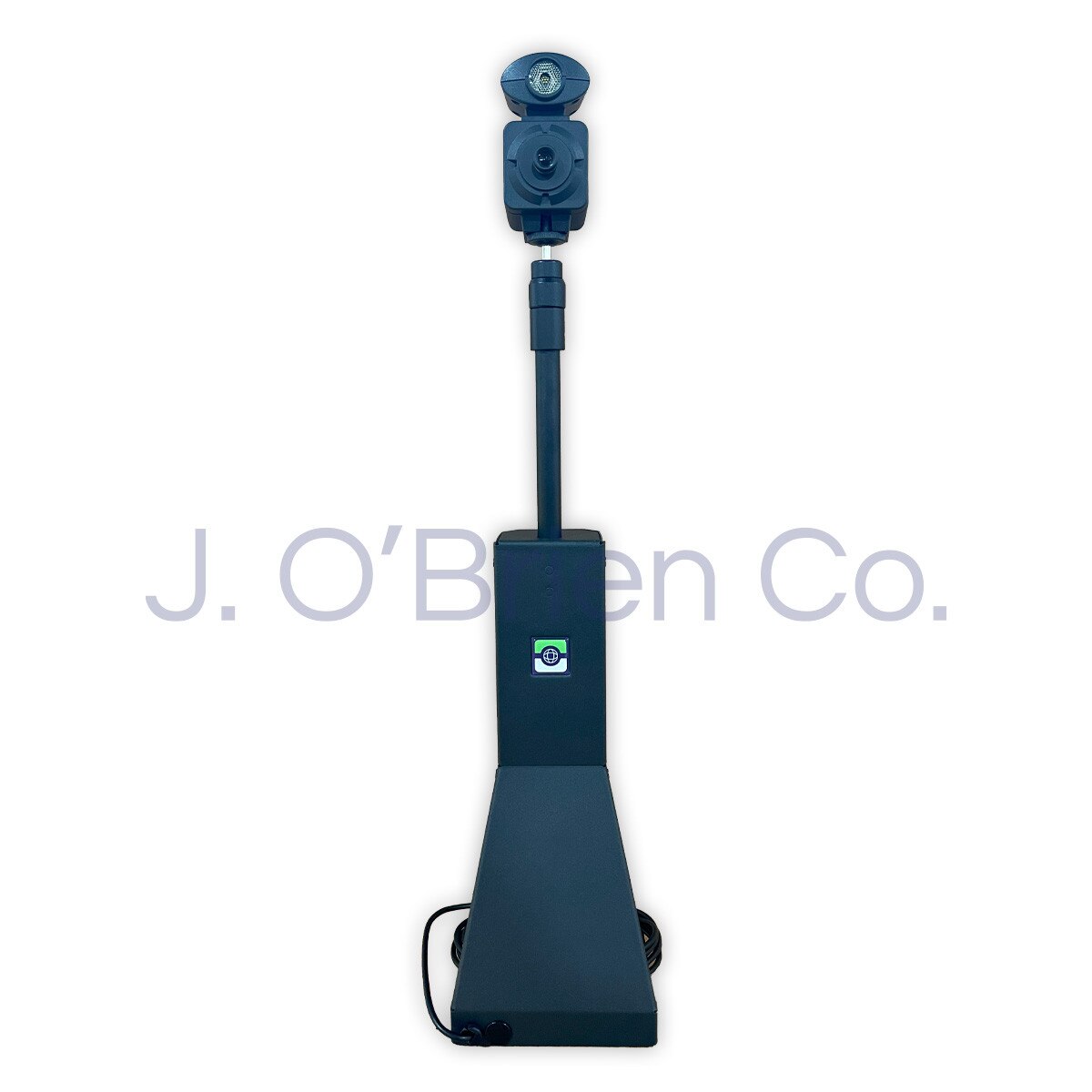

  • Non-tilting stand for stability and ease of use
  • Synchronized USB-powered LED flash for consistent high-quality images in any environment
  • FHD progressive scan sensor for 1920 x 1080 still images
  • Supports both Compressed (MJPEG) and Raw video (YUY2) outputs; still image capture only with MJPEG

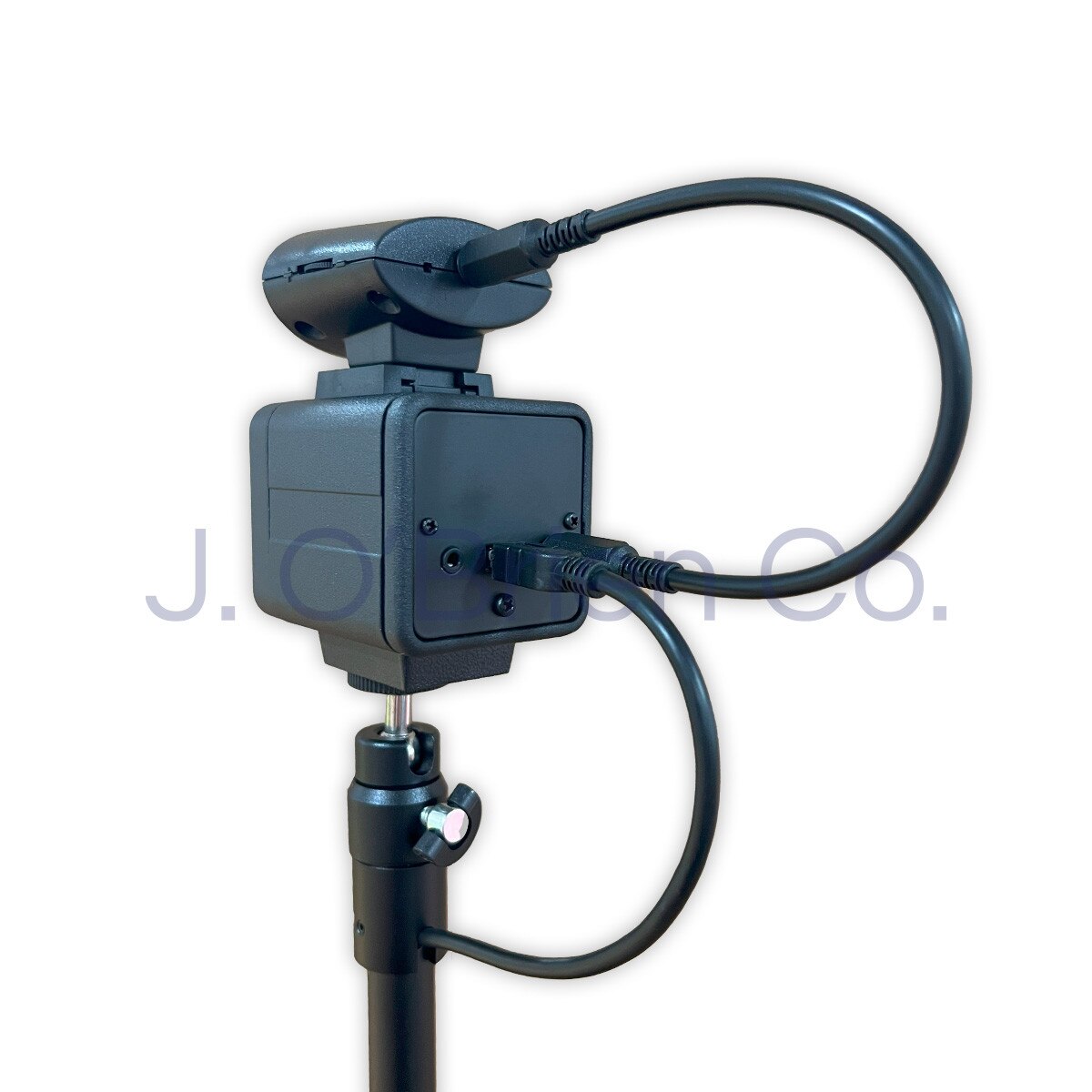

  • USB 2.0 bus provides power, camera, and flash control
  • UVC compliant
  • Convenient manual dial allows customized flash intensity
  • 1/4 20 mount on base for tripod use
  • Full SDK available for integration into customer applications
  • TWAIN compatible
  • Standards: CE, UL
  • Neutral Gray backdrop is recommended for optimal image capture
Back

Specifications

Technical Specifications
Image Sensor Size
1/2.7"
Pixel Size
3 x 3 μm
Resolution and Frame Rate
MJPEG Compressed (Still Capture Choices)
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps

YUY2 Uncompressed (Video Capture Choices)
1920 x 1080 at 5 fps
1280 x 720 at 10 fps
800 x 600 at 20 fps
640 x 480 at 30 fps
Sensitivity
0.1 Lux, f/2.0
Signal to Noise Ratio
>65 dB
Shutter Modes
Electronic Rolling Shutter
Field of View
40 x 30°
Video Output
USB 2.0
Power Supply
5 VDC via USB 2.0
Power Consumption
<200 mA
UVC Controls
Still Capture
Selectable
Flash
Selectable via Videology Viewer or SDK
Focus
Manual (Preset for 4.0 to 8.0' / 1.2 to 2.4 m)
Adjustable Settings
Contrast, Brightness, Hue, Resolution, Gamma, White Balance, and Exposure
Gain
Fixed
Software
SFT-15003 Rev 2.2.0.1 or Above
Videology Viewer with Active Features
SFT-10011 Rev 2.1.26 or Above
TWAIN Data Source
Recommended System Requirements
Hardware
Requires USB 2.0 or USB 3.0 Backward-Compatible UVC Compliant Ports
Operating Systems
Windows 10, 8, 7, and XP
Linux 2.6.26
Android 4.0 or Higher (Potential)
macOS 10.4.8 or Higher (Potential)
Lens
3MP M-12 Board Mount
Customized Precision 12mm Focal Length with High Uniformity, MTF Matches to Sensor. Depth of Field Optimized for Facial Still Image Capture (4.0 to 8.0' / 1.2 to 2.4 m)
Environmental
Operating Temperature
5 to 131°F / -15 to 55°C
Mechanical

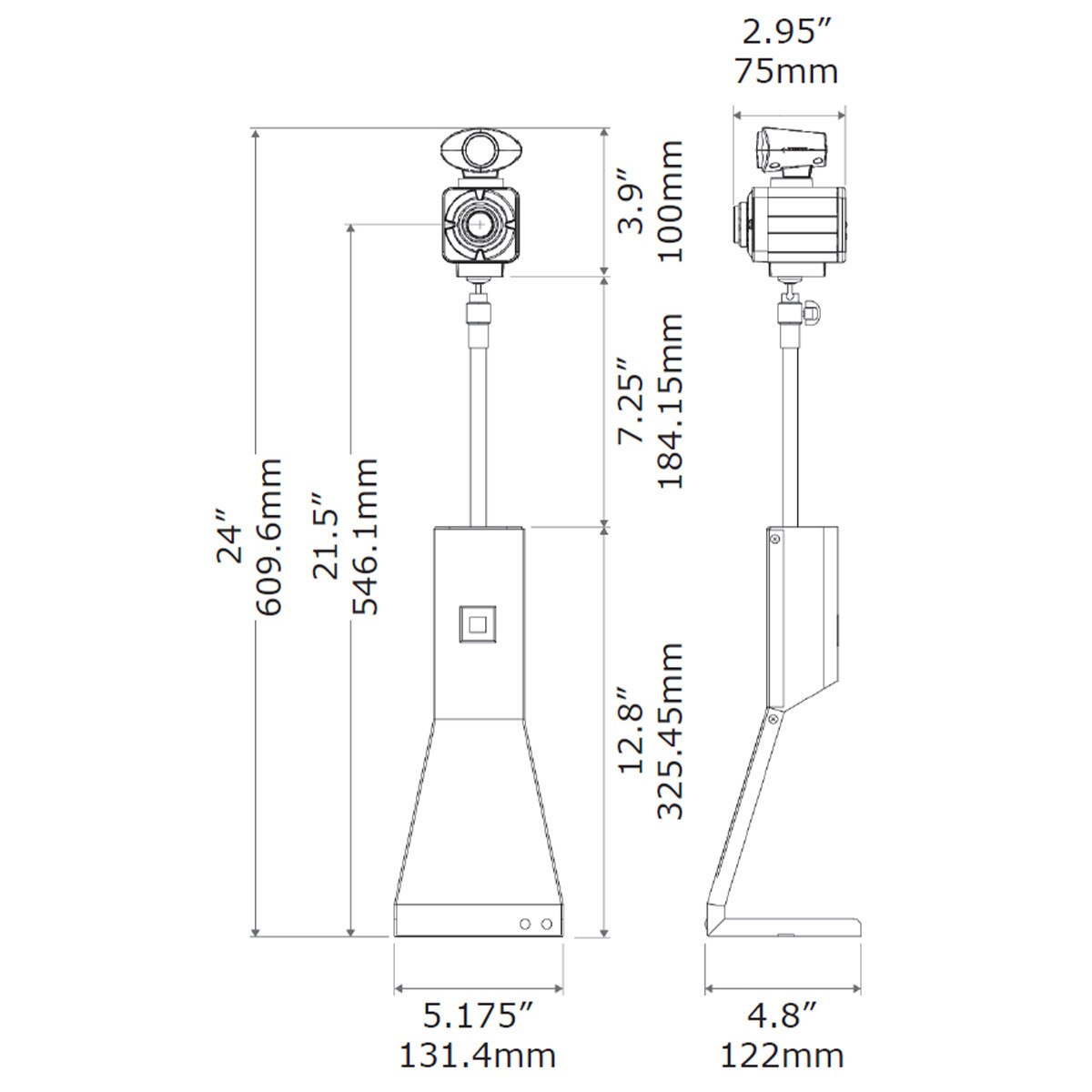

Dimensions
24 x 5.18 x 4.8" / 609.6 x 131.4 x 122 mm
Weight
3.5 lb / 1.6 kg
