Videology 24M710AF-SYS-1 5MP Autofocus USB 2.0 Photo ID Camera with Stand
For Large Quantity Orders Call (877) 379-8844 or
Details

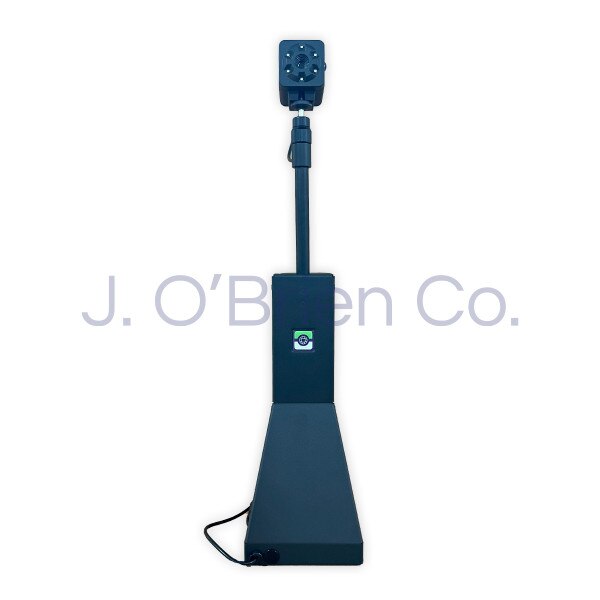

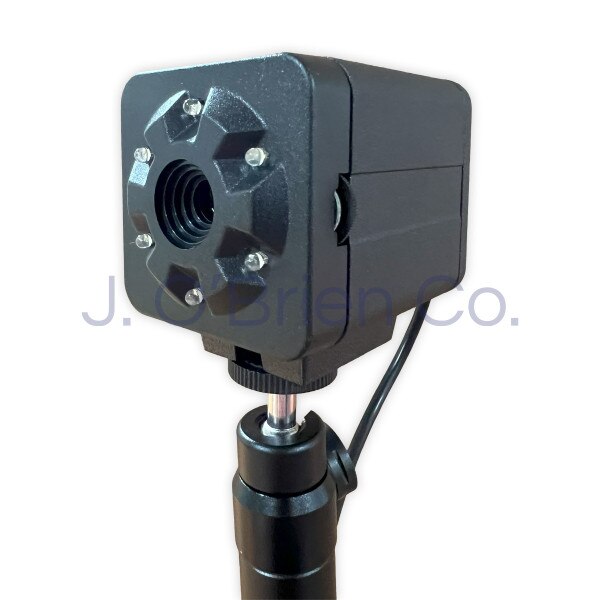

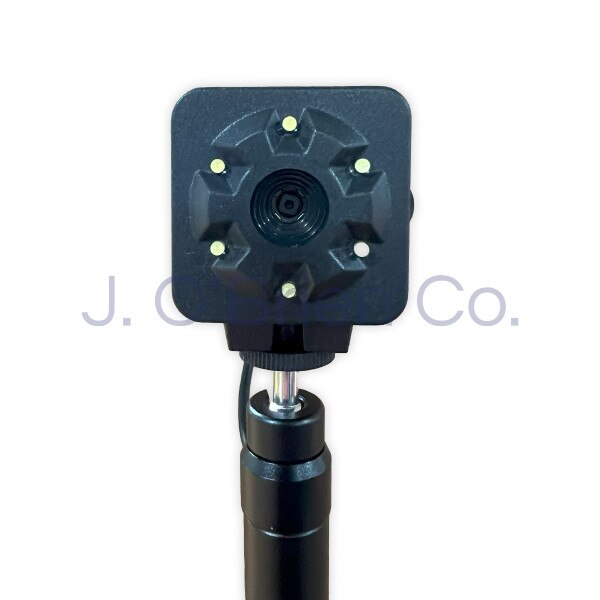

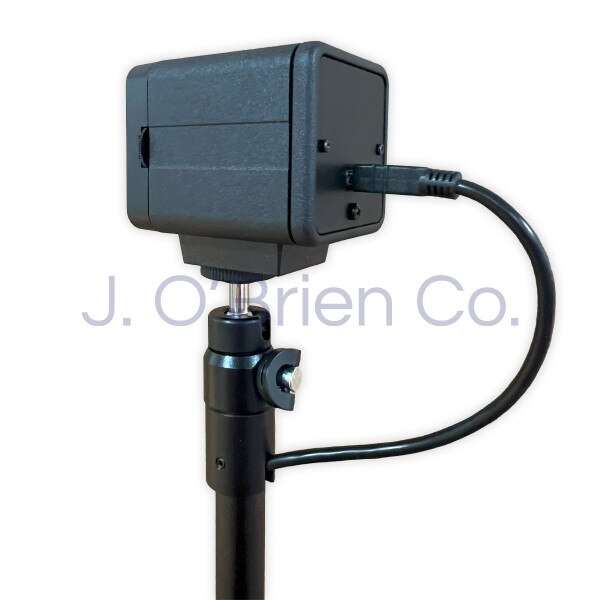

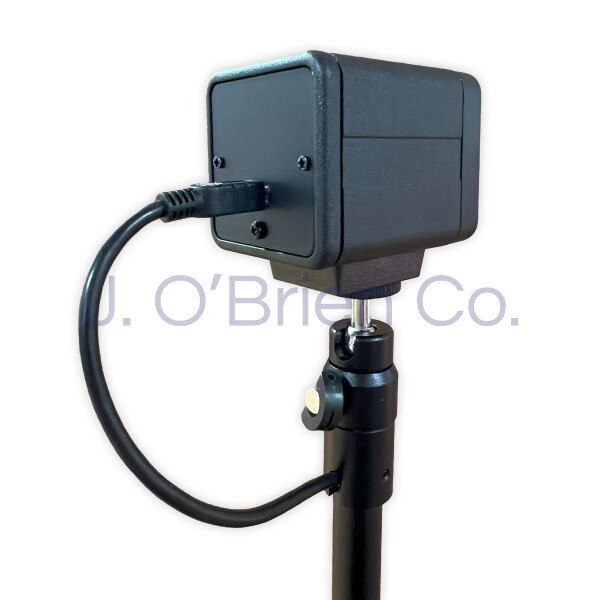

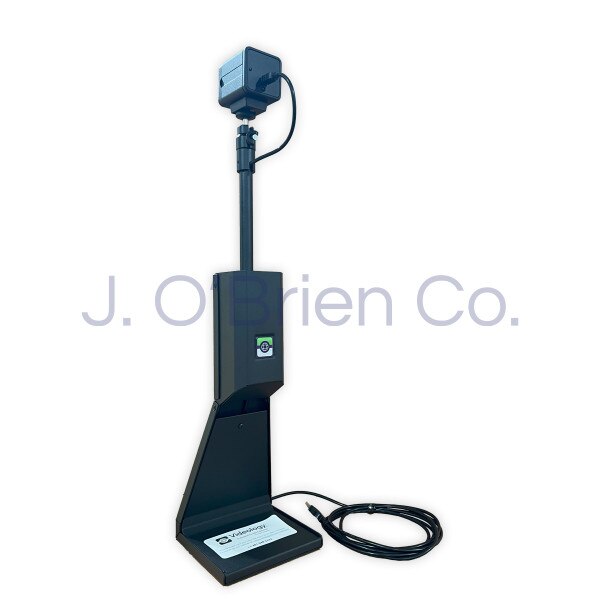

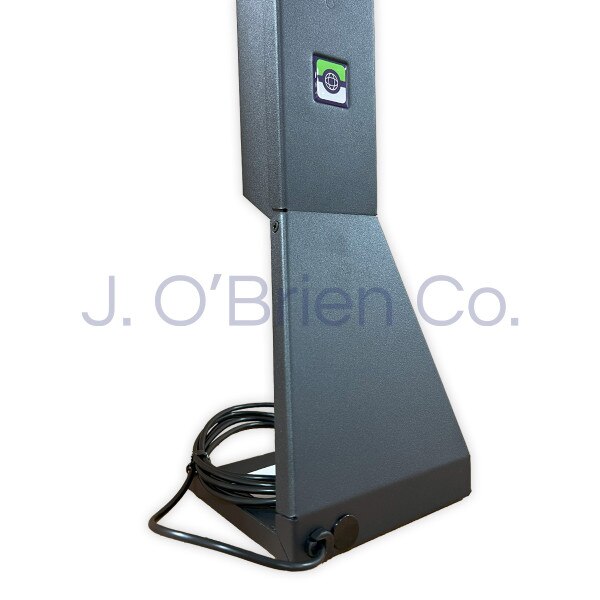

Videology 24M710AF-SYS-1 5MP Autofocus USB 2.0 Camera with Stand
The Videology 24M710AF-SYS-1 is a state-of-the-art 5MP autofocus camera designed for industrial-grade applications. This model includes a durable stand and a 10' USB cable, making it easy to set up and use in a wide range of professional environments. Equipped with a high-resolution CMOS sensor, this camera delivers exceptional image quality and video streaming capabilities.
Key Features
- 5MP Autofocus CMOS Sensor
- High-Quality Image Capture with LED Illumination
- USB 2.0 UVC Compliant for Easy Integration
- Supports MJPEG Compression for Efficient Streaming
- Customizable LED Intensity for Optimal Lighting
- Includes Stand and 10' USB Cable for Convenient Setup
- Durable and Compact Design for Industrial Use
Applications
This camera is perfect for applications where precision and reliability are critical, including:
- Photo-ID and Document Imaging
- Security and Surveillance Systems
- Medical Imaging
- Machine Vision Systems
- Industrial Automation
Why Choose the Videology 24M710AF-SYS-1?
With its advanced autofocus capabilities, flexible integration options, and included stand for easy setup, the Videology 24M710AF-SYS-1 stands out as a top choice for professionals seeking reliability and superior performance in challenging environments.
Specifications
Videology 24M710AF Technical Specifications
| Category | Specification |
|---|---|
| Image Sensor Size | 1/4" CMOS 5MP UVC |
| Image Area | 3.673mm x 2.738mm |
| Pixel Size | 1.4μm x 1.4μm |
| Resolution/Frame Rate | 2592x1944 15fps, 1920x1080 30fps, 1280x720 30fps, 640x480 30fps |
| Video Compression | MJPEG |
| Sensitivity | 5100 e-/lux sec. |
| Dynamic Range | 68dB |
| Signal-to-Noise Ratio | 36dB |
| Shutter Mode | Electronic rolling shutter |
| Scan Mode | Progressive Scan |
| Lens | 3.128 mm/F 2.8 (M6 x P0.35) (5MP Autofocus) |
| Field of View (D x H x V) | 70° x 60° x 46° |
| Video Output | USB 2.0 UVC |
| Power Supply | 5VDC via USB 2.0 bus |
| Power Consumption | 750mA |
| UVC Controls | Still Capture, Exposure, Focus, White Balance, Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, BLC |
| Software | SFT-15003 Videology demo viewer |
| Operating System Compatibility | Windows OS 32/64 bit, Linux 2.6.26+, Mac OS 10.4.3+ (potential support) |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 20% to 93% RH (non-condensing) |
| Storage Humidity | Up to 98% RH (non-condensing) |
| Dimensions (W x H x D) | 50.4mm x 60.7mm x 65.8mm (with mount) |
| Weight | 5.4 oz (154g) |
| Included Cables | 60C1147 - USB 2.0 A to mini B cable (10ft.) |
| Included Tripod Mount | 1/4-20 mount for easy mounting capability |
