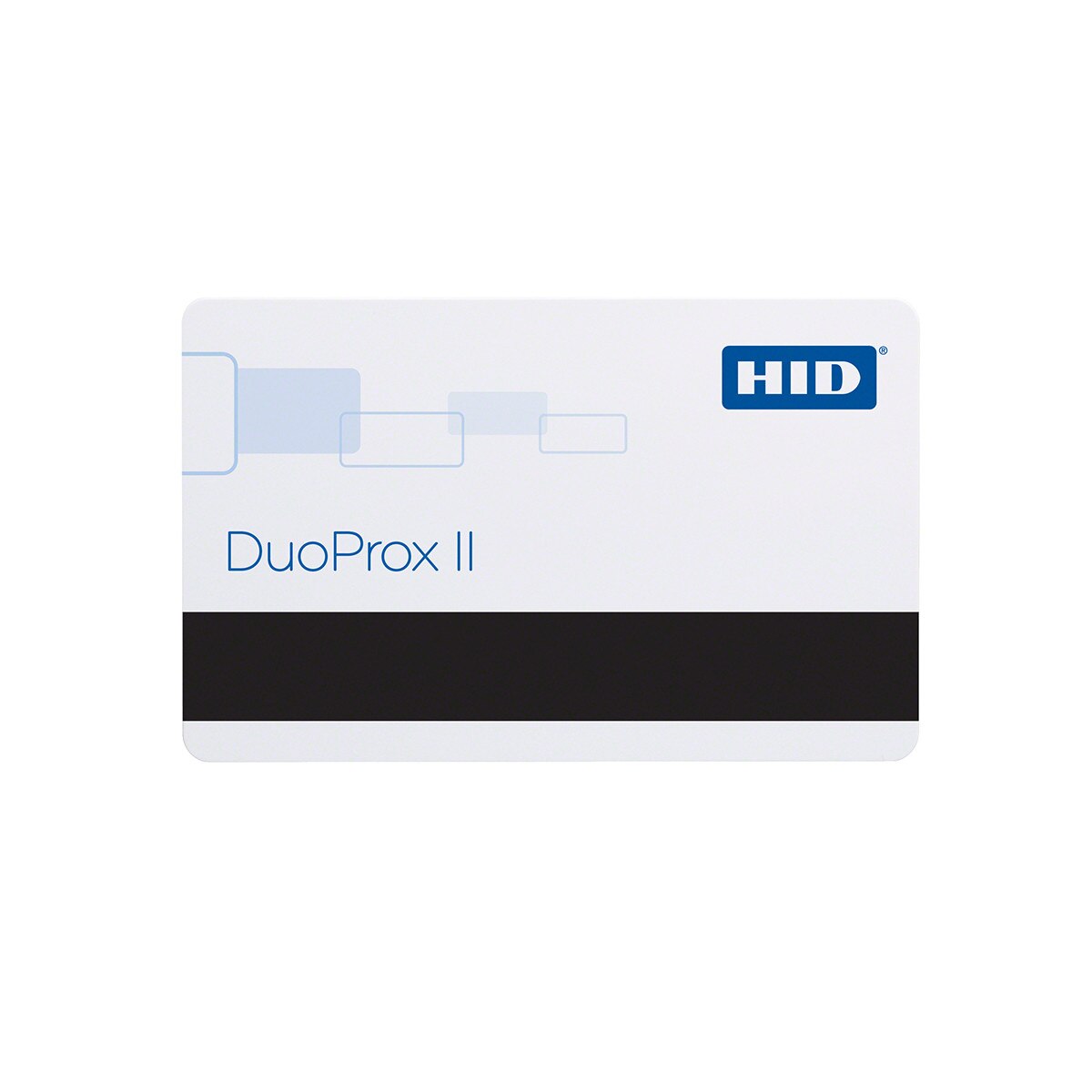

HID 1336LGGSN DuoProx II Graphics Quality PVC, Proximity Access Card, with Magnetic Stripe
Details
DuoProx II multiple technology proximity card offers proximity, magnetic stripe and photo identification technologies on a single access control proximity card. DuoProx II proximity card with magnetic stripe is ISO 7810 compliant, with a nominal thickness of .030". It features a graphics quality surface optimized for Photo ID printing.
The proximity card with magnetic stripe is available in standard PVC construction, or a composite polyester/PVC construction for more demanding high wear and tear environments. Like all HID ISO proximity cards, the DuoProx II proximity card with magnetic stripe can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine cards.
Single Technology
This is a Single Technology Prox Programmed with HID or Indala Format Access Card.
Card Form Factor
This is a 30 mil CR80 PVC card.
PVC ID Card Construction
PVC stands for polyvinyl chloride and it is the world’s third-most widely produced plastic polymer. PVC is very durable and can last for years. Most ID cards are PVC.
High Coercivity Magnetic Stripe
This card includes an embedded High Coercivity magnetic stripe. Data can be stored across the three available magnetic stripe tracks; these magnetic stripe tracks can be used in a variety of third party systems. Systems that utilize magnetic stripe technology include: door access, payment, loyalty, etc.
Specifications
1336LGGSN ProxCardII C-P-F-B-C-S (LGGSN)
Card Format: N/A
Programming: L - Programmed HID
Front Packaging: G - Plain White PVC with Gloss Finish
Back Packaging: G - Plain White PVC with Gloss Finish
Card Numbering: S - Sequential Matching Internal/External (Inkjetted)
Slot Punch: N - No Slot Punch
DuoProx II Proximity Access Card Typical Maximum Read Range
ProxPoint® Plus reader-up to 2.5" (6.35 cm)
MiniProx® reader-up to 5" (12.7 cm)
ThinLine II® reader-up to 5" (12.7 cm)
ProxPro® reader-up to 7" (17.8 cm)
ProxPro® II reader-up to 8"(20 cm)
Prox80™-up to 5" (12.7 cm)
MaxiProx® reader-up to 20" (50.8 cm)
EntryProx reader-up to 2.5" (6.35 cm)
pcProxTM Desktop reader-up to 2.5" (6.35 cm)
DuoProx II Proximity Access Card Dimensions
2.125" x 3.370" x 0.030" ± 0.003" (5.4 x 8.6 x 0.076 ± 0.0076 cm)
DuoProx II Proximity Access Card Operating Temperature
1336 PVC Cards -40º to 122º F (-40º to 50º C)
1536 Composite Cards -40º to 158º F (-40º to 70º C)
DuoProx II Proximity Access Card Options
External card numbering (inkjet or laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
A variety of magnetic stripe types
DuoProx II Access Card Weight
0.24 oz. (6.8 gm)
Warrarnty
Lifetime
