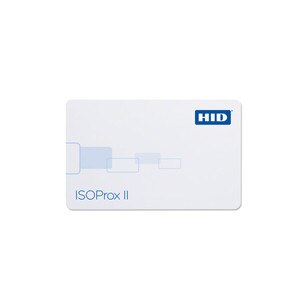

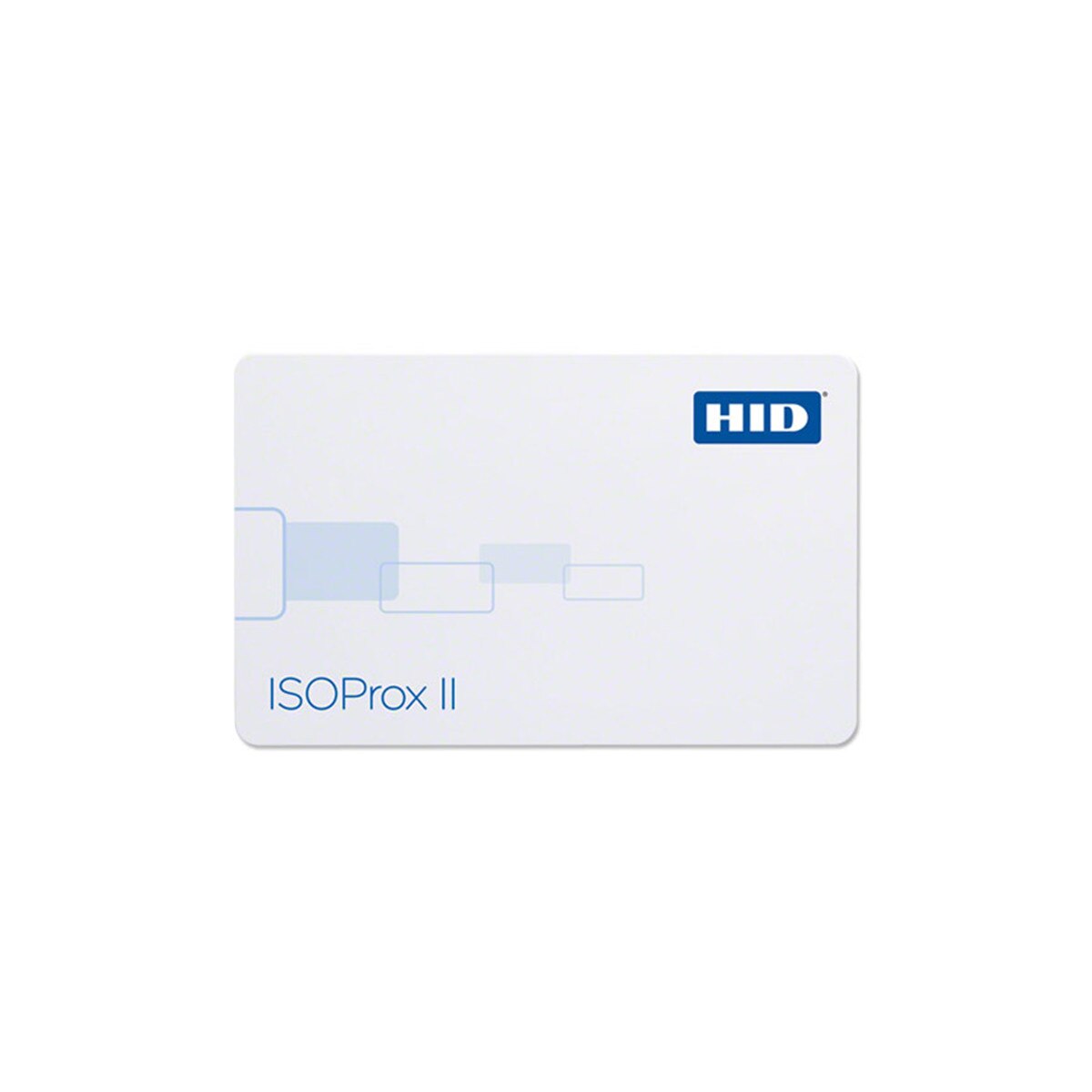

HID 1386LGSMV ISOProx II Graphics Quality PVC, Proximity Access Card
The ISOProx II Card offers proximity card technology with photo identification capability on a single access control card. It is ISO 7810 compliant, with a nominal thickness of .030". The card features a graphics quality surface optimized for Photo ID printing, and is available in standard PVC construction, or a composite polyester/PVC construction for more demanding high wear and tear environments.
Like all HID ISO cards, the ISOProx II proximity card can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine cards for ultimate access control.
When customizing cards using Re-Transfer Printers that fuse images to the surface of the card by applying heat and pressure (such as the Fargo HDP5000) we recommend the use of composite cards, which are better able to withstand the higher application temperatures.
This is a Single Technology Prox Programmed with HID or Indala Format Access Card.
Card Form Factor
This is a 30 mil CR80 PVC card.
PVC ID Card Construction
PVC stands for polyvinyl chloride and it is the world’s third-most widely produced plastic polymer. PVC is very durable and can last for years. Most ID cards are PVC.
1386LGSMN ProxCardII C-P-F-B-C-S (LGSMN)
Card Format: N/A
Programming: L - Programmed HID
Front Packaging: G - Plain White PVC with Gloss Finish
Back Packaging: S - Base with Molded HID Logo
Card Numbering: M - Sequential Matching Internal/External (Inkjetted)
Slot Punch: N - No Slot Punch
ISOProx II Proximity Access Card Typical Maximum Read Range
ProxPoint® Plus reader-up to 2.5" (6.55 cm)
MiniProx® reader-up to 5" (12.5 cm)
ThinLine II® reader-up to 5" (12.5 cm)
ProxPro® reader-up to 7" (17.5 cm)
ProxPro® II reader-up to 8"(20 cm)
Prox80™-up to 5" (12.7 cm)
MaxiProx® reader-up to 20" (50 cm)
ISOProx II Proximity Access Card Dimensions
2.125" x 3.370" x 0.030" ± 0.003" (5.4 x 8.6 x 0.076 ± 0.0076 cm)
ISOProx II Proximity Access Card Operating Temperature
1336 PVC Cards -40º to 122º F (-40º to 50º C)
1536 Composite Cards -40º to 158º F (-40º to 70º C)
ISOProx II Proximity Access Card Options
External card numbering (inkjet or laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
A variety of magnetic stripe types
ISOProx II Proximity Access Card Weight
0.24 oz. (6.8 gm)
