Fargo 55600 DTC4500e Single-Sided Photo ID System
Details
Fargo 55600 DTC4500e Single-Sided ID Card System
Upgrade your ID card printing with the Fargo 55600 DTC4500e Single-Sided ID Card System. Designed for organizations that demand high-volume, secure, and reliable ID card production, this system provides all the essential tools you need to create professional-grade ID cards with ease.
The Fargo DTC4500e is a powerhouse when it comes to efficiency and security. Equipped with a dual input hopper, this system is capable of handling multiple card types while ensuring seamless operation. With built-in password protection and optional fluorescent ribbons for Ultra-Violet (UV) printing, you can elevate your security measures to protect your ID issuance program.
Why Choose the Fargo 55600 DTC4500e System?
This system isn't just about printing cards—it's about delivering top-tier security and operational efficiency. The YMCKO color ribbon included allows you to produce up to 500 full-color cards, while the 300 UltraCard PVC cards provide the durability needed for daily use. With the addition of the Asure ID Express software and a USB webcam, you can start producing high-quality ID cards right out of the box.
Whether you're managing employee access, issuing membership cards, or creating secure credentials, the Fargo 55600 DTC4500e system is your go-to solution for reliable and high-volume ID card production.

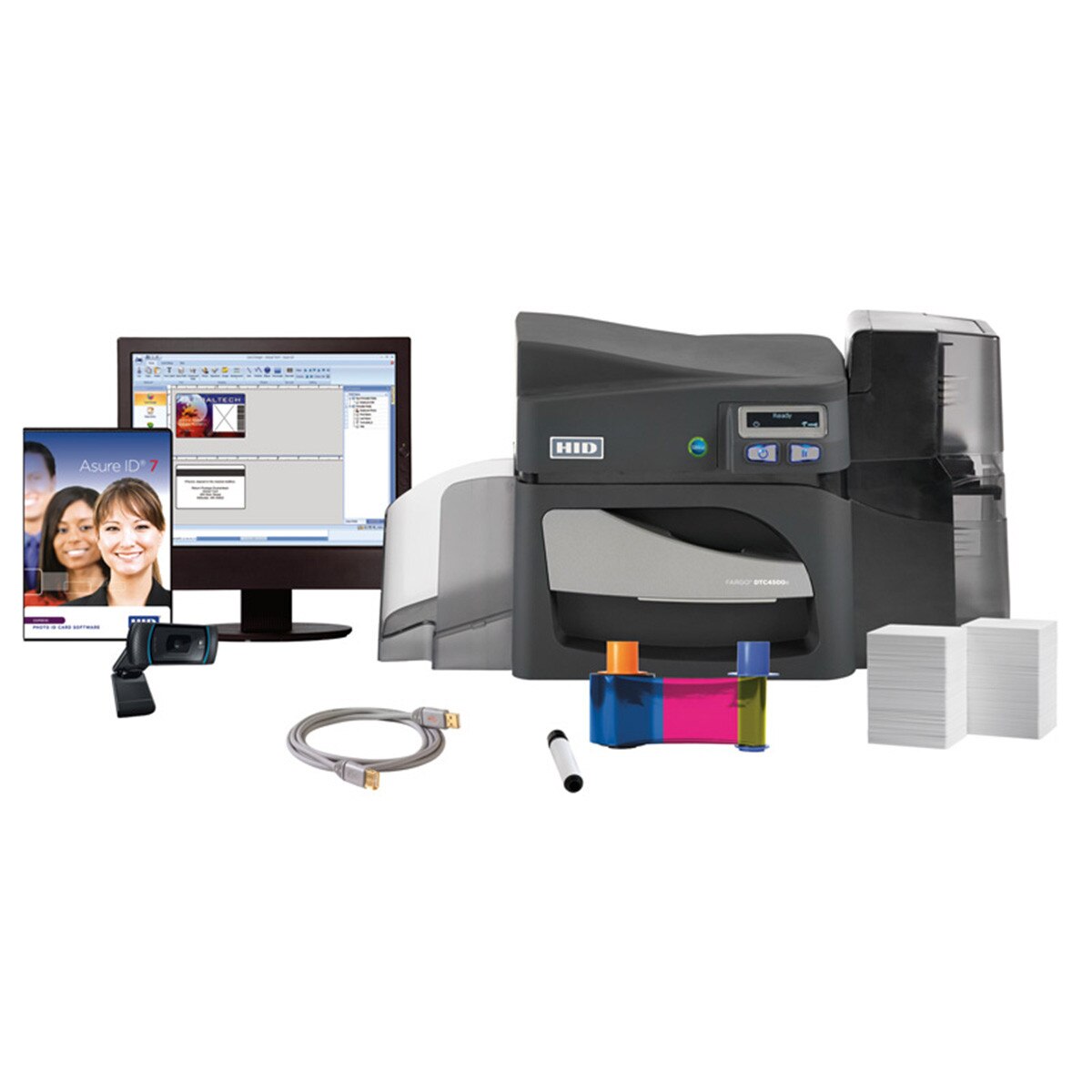

Includes:
- Fargo DTC4500e Single-Sided ID Card Printer
- YMCKO Color Ribbon (500 prints)
- 300 UltraCard PVC Cards
- Asure ID Express Software with Coverage
- USB Webcam
- USB Cable
- 3-Year Printer Warranty
Specifications
Specification | Details |
---|---|
Print Method | Dye sublimation / resin thermal transfer |
Resolution | 300 dpi (11.8 dots/mm) continuous tone |
Colors | Up to 16.7 million / 256 shades per pixel |
Print Ribbon Options | Full-color with resin black and overlay panel (YMCKO), 500 prints Full-color half-panel with resin black and overlay panel (YMCKO), 850 prints Full-color with two resin black panels and overlay panel (YMCKOK), 500 prints Full-color with fluorescing, resin black and overlay panel (YMCFKO), 500 prints Full-color with two resin black panels (YMCKK), 500 prints Resin black (standard and premium), 3000 prints Resin white, 2000 prints |
Print Speed | 6 seconds per card (K); 8 seconds per card (KO); 16 seconds per card (YMCKO); 24 seconds per card (YMCKOK) |
Security Features | Optional locking hoppers; Password protection; AES 256 encryption; Resin scramble data protection; Fluorescent panel printing |
Accepted Card Sizes | CR-80 (3.375" L x 2.125" W / 85.6 mm L x 54 mm W); CR-79 adhesive back (3.313" L x 2.063" W / 84.1 mm L x 52.4 mm W) |
Print Area | CR-80 edge-to-edge (3.36" L x 2.11" W / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W) |
Accepted Card Thickness | Print only: .009" - .040" / 9 mil - 40 mil / .229 mm - 1.016 mm; Print / lamination: .030" - .040" / 30 mil - 40 mil / .762 mm - 1.02 mm |
Accepted Card Types | PVC or polyester cards with polished PVC finish; monochrome resin required for 100% polyester cards; rewrite |
Input Hopper Card Capacity | 100 cards per input hopper (.030" / .762 mm) – Dual input hopper standard on every unit for a total input capacity of 200 cards |
Output Hopper Card Capacity | Single-sided: Up to 30 cards. Dual-sided: Up to 100 cards (.030” / .762 mm) |
Reject Hopper Card Capacity | Up to 100 cards (.030" / .762 mm) - same-side input/output card hopper or lamination module required |
Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
Memory | 32 MB RAM |
Software Drivers | Windows® 7 / 10 / 11 / Server 2012 / Server 2016 / Server 2019 / Server 2022 |
Interface | USB 2.0, Ethernet with internal print server |
Operating Temperature | 65° to 80° F / 18° to 27° C |
Humidity | 20–80% non-condensing |
Dimensions | Single-sided printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm D Dual-sided printer: 9.8˝ H x 18.7˝ W x 9.2˝ D / 249 mm H x 475 mm W x 234 mm D Printer + lam: 18.9˝ H x 18.7˝ W x 9.2˝ D / 480 mm H x 475 mm W x 234 mm D |
Weight | Single-sided printer: 9 lbs. / 4.1 Kg Dual-sided printer: 11 lbs. / 5 Kg Printer + lam: 20 lbs. / 9.1 Kg |
Agency Listings | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC |
Environmental Features | GreenCircle® Certified card printer (base models only without encoders) Refillable supply cartridges (ECO) Card rewrite support |
Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
Supply Frequency | 50 Hz / 60 Hz |
Warranty | Printer: three years Printhead: three years, unlimited card passes with UltraCard™ |
Encoding Options | 125 kHz (HID Prox) reader 13.56 MHz (iCLASS® Standard / SE / SR / Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire®, MIFARE DESFire EV1/EV2, ISO 14443 A/B, ISO 15693) read/write encoder Contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 |
Supported Access Control Credential Programming | iCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE DESFire EV1, HID Prox |
Options | Dual-sided printing Single- or dual-sided lamination Same-side input/output card hopper Locking card input/output hopper Smart card encoding (contact/contactless) Magnetic stripe encoding Printer cleaning kit Secure proprietary consumables system |
Software | FARGO Workbench™ diagnostic utility with Color Assist spot color matching |
Display | User-friendly, SmartScreen graphical display |
