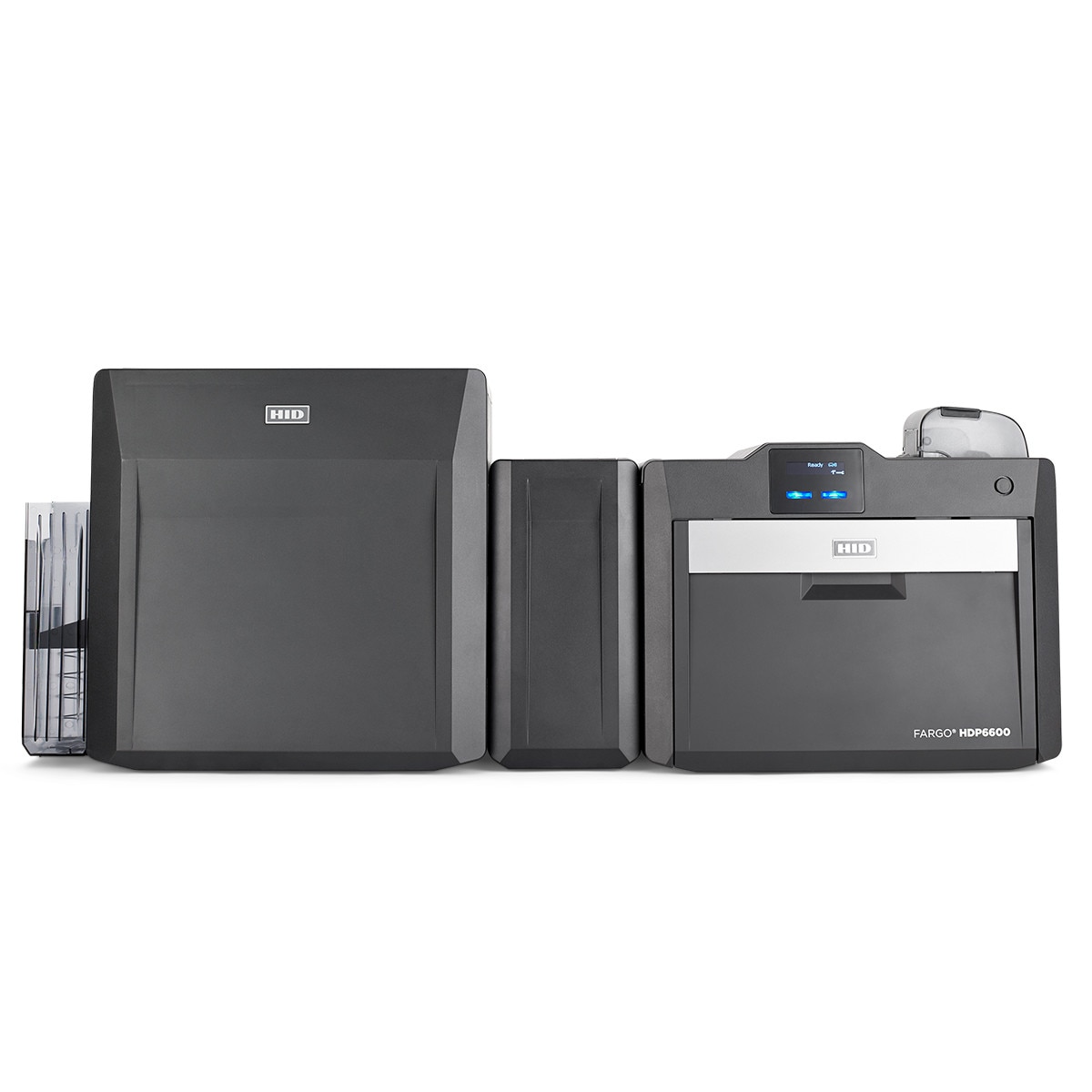

Fargo 94680 HDP6600 Dual Sided/Dual Sided Laminator 2 Material
Ideal for organizations of any size that need retransfer printing technology to routinely issue secure and durable, high definition IDs or cards at high speeds, the Fargo 94680 HDP6600 from HID Global is a cost-effective, eco-friendly and reliable solution that provides high resolution 600 dpi printing capability for superior text and image quality as well as wasteless lamination for an ultra-low cost-per-card. The HDP6600 also features HID Global’s patent-pending iON technology, allowing the unit to reach optimal operating temperature in under 60 seconds, expediting the retransfer printing and lamination processes. Fast, innovative, feature-rich and reliable, the Fargo HDP6600 sets the new customer demanded standard in retransfer printing.
Reverse Image Transfer (Re-Transfer) Card Printing Technology
This ID card printer utilizes “Re-Transfer” printing technology, which diffuses ink (in the form of a ribbon) to a dye receptive film known as a “transfer film”. Once all necessary colors have been applied to the transfer film, it is then fused to a blank PVC or Composite card material. This two-step printing process allows for a high definition “over the edge” printed card. Since the transfer process is not limited by a fixed printhead, but rather utilizes the flexible transfer film material, the re-transfer method is ideal for highly detailed imagery (up to 600dots/in), which can be applied to uneven surfaces such as ID cards with embedded electronic chips (smart cards). Along with advanced printing definition and overall card coverage, the lifespan of a re-transfer printhead is dramatically increased by the lack of contact with the card substrate.
This ID card printer prints with a resolution of 600 dpi (dots per inch) or 23.6 dpm (dots per millimeter).
Dual Sided ID Card Printing
With a dual sided printing module, This ID card printer can automatically print on both sides of a PVC or Composite card.
Dual Sided Lamination
This ID card printer incudes a dual sided lamination module, which allows you to apply a variety of different laminates (clear, generic holographic, custom holographic, etc.) to both sides of the card.
Two Material Lamination Station
A two-material lamination module allows you to laminate each side of a card with two different materials. This method laminates one side of the card with the first laminate type, flips the card over, and laminates the back side of the card with a second laminate type. This is ideal for cards that contain a magnetic stripe or embedded contact smart chip.
