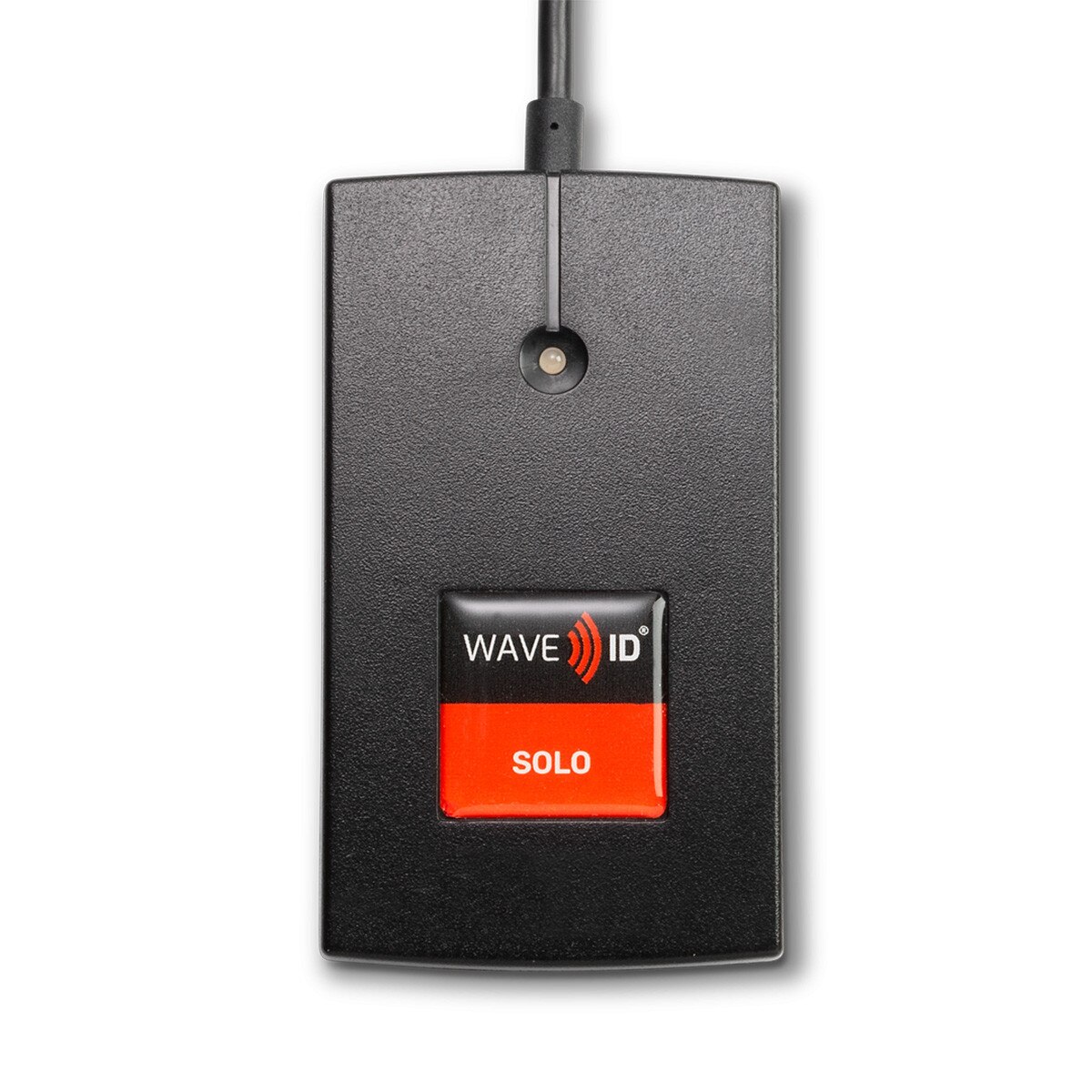

RF IDEAS RDR-6082AKU WAVE ID Solo SDK HID Prox Black USB Reader
Details
WAVE ID® Solo
WAVE ID Solo read-only readers were designed for customers seeking to leverage their existing card system for applications beyond building access. Providing exceptional protection while maximizing security on devices such as printers, healthcare technologies, process controllers, autonomous robots, and more. The WAVE ID Solo delivers plug-and-play functionality with proximity and contactless smart cards and integrates with all leading operating systems, applications, and embedded controllers. The 13.56 MHz model is compatible with most contactless smart cards and the 125 kHz proximity model provides error-free identification for over 300 million physical access cards worldwide.
FEATURES
- Manages employee identification and mustering
- Ideal for time and attendance, training meetings, visitor management
- Eliminates errors associated with individual ID, manual, or keystroke entry
- Integrates into your software or hardware product through the use of the Universal Software Developer’s Kit (SDK)
BENEFITS
- Reads nearly all proximity and contactless smart cards
- Optional LEGIC® technology to serve multiple applications
- Applicable for secure printing, healthcare applications, and process efficiencies
- Fully programmable and customizable user-defined fields
- Protect and secure sensitive information
Specifications
STANDARD FEATURES | Proximity Readers | Contactless Readers |
Model Series | RDR-6x81AKU Keystroke RDR-6x82AKU SDK Note: x = Card Type | RDR-7081AKU Keystroke RDR-7082AKU SDK RDR-7581AKU Keystroke RDR-7582AKU SDK |
Operating Frequency | 125/132 kHz | 13.56 MHz |
Interface | USB, Ethernet, RS-232 or other | |
WAVE ID Plus SDK available for writing apps to the reader | Yes | |
PHYSICAL CHARACTERISTICS | ||
Dimensions | Height 0.6” (1.52cm) x Width 2.0” (5.08cm) x Length 3 3/8” (8.57cm) | |
Weight | 4.0 ounces (113.39g) | |
Housing Color | Black | |
Cable Length | 6’ standard; 6” and 16” lengths available | |
Indicators | LED indicator; Adjustable beeper volume (off, low, medium, high) | |
Form Factors | Desktop, surface mount, non-housed | |
Minimum Voltage | 5V | |
Power Supply | USB powered; some RS-232 models require external power source | |
Power Consumption | 70 mA typical, 100 mA maximum | 60 mA typical, 150 mA maximum |
ENVIRONMENTAL | ||
Operating Temperature Range | –22° to 150°F (–30° to 65°C) | |
Operating Humidity Range | 5% to 95% relative humidity, noncondensing | |
Storage Temperature Range | –40° to 185°F (–40° to 85°C) | |
OTHER | ||
Certifications (Please contact rf IDEAS for information about other global certifications) | FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada. Environmental: RoHS, REACH | |
Compatible Operating Systems | Windows XP®/7®/8.1,® 10® and Linux Ubuntu | |
Configuration Utility | rf IDEAS Configuration Utility available on rf IDEAS support page. | |
Card Types | For a complete list, visit https://www.rfideas.com/support/tools/supported-card-types | |
